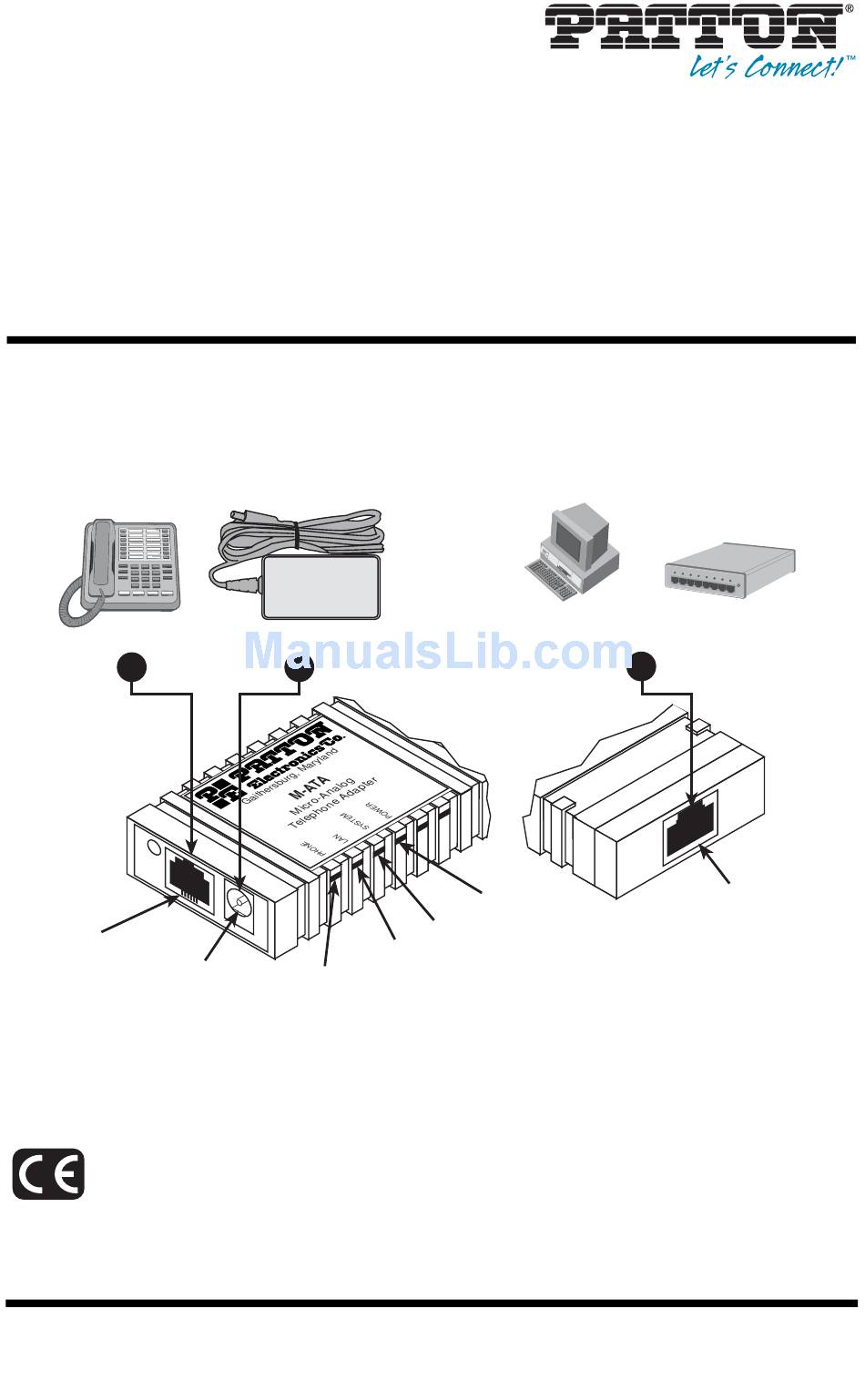

LAN port System LED Phone jack LAN LED Power jack Phone LED Figure 1. SmartLink M-ATA installation diagram Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 Part Number: 07MSLMATA-QS, Rev. C E-mail: support@patton.com Revised: February 9, 2012 WWW: www.patton.com...
1). Connect figure 1 the other end of the power cord to an appropriate AC power outlet. Wait 30 seconds after powering the SmartLink M-ATA on, then verify that the green Power LED is lit (see on page 1). figure 1 By default, the M-ATA will automatically request IP network settings from the LAN using DHCP.
Follow the directions of your voice service provider to set up voice services. IMPORTANT 2.0 Additional information For detailed information about configuring and operating guidance, set up procedures, and troubleshooting, refer to the SmartLink M-ATA User Manual available online at www.patton.com/manuals/M-ATA.pdf. A.0 Compliance Information A.1 Compliance...
Page 4
Set the IP network mask 140# Set IP Use “*” to instant of “.”, and “#” to network mask end or “#” to return to the main menu 150# Reload Immediately reloads None None the SmartLink SmartLink M-ATA Quick Start Guide...
Page 5
Warranty, Trademark, & Compliance Information For warranty, trademark and compliance information, refer to the SmartLink M-ATA User Manual located online at www.patton.com/manuals. In accordance with the requirements of ouncil directive 2002/96/EC on Waste of Elec-...
