Page 1: User Manual

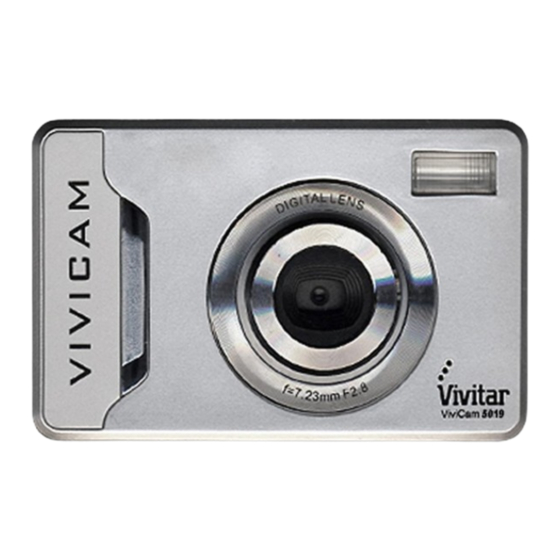

ViviCam 5019 Digital Camera User Manual © 2009-2012 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies. -
Page 2: Table Of Contents
Table of Contents Introduction ..........................2 What‟s Included ..........................2 Parts of the Camera ........................3 Initial Camera Setup ........................4 Main Camera Modes ........................7 Camera Technical Specifications ....................8 Computer System Requirements ....................9 Powering the Camera On/Off ..................... 10 Changing Camera Mode ...................... -
Page 3: Introduction
Thank you for purchasing this camera. Everything you need to take quality digital photos and videos is included with your camera. Vivitar® makes capturing those special moments as easy as possible. Please read this manual carefully first in order to get the most out of your digital camera. -
Page 4: Parts Of The Camera
Parts of the Camera... -
Page 5: Initial Camera Setup
Initial Camera Setup Installing the Batteries Installing the Memory Card SD Memory card (up to 32GB) needed Insert 3 AAA (1.5V) batteries. for normal use. Alkaline batteries recommended (not included). Turning On the Camera Using the Camera... - Page 6 When powering the camera ON for the first time the camera will take you through the INITIAL CAMERA SETUP. Powering the Camera ON Batteries Make sure the batteries, 3x AAA (1.5V) alkaline batteries, have been inserted properly into your digital camera. - Slide and open the battery compartment.
- Page 7 SD Card Make sure an SD card has been properly inserted into your camera. (SD card not included.) To properly insert the SD Card: Push the SD card into the slot in the direction shown on the camera (see SD icon by the SD card slot).
-
Page 8: Main Camera Modes
Main Camera Modes Your camera has different modes for the various camera functions. You can switch modes by pressing the MODE button on your camera after the camera has been powered ON. Photo Capture Mode Use this mode to capture pictures with your camera. This is the default mode when the camera is powered ON. -
Page 9: Camera Technical Specifications
Camera Technical Specifications Sensor CMOS sensor 5M (2592x1944pixels), 3M (2048x1536pixels), Image resolution 2M (1920x1080pixels), VGA (640x480pixels) Lens f=7.23mm, F2.8 Internal memory SD RAM 8MB External memory Support SD card up to 32GB Flash Auto/Force On/Red Eye Reduction/Off Self-timer Power saving Printing PictBridge Battery... -
Page 10: Computer System Requirements
Computer System Requirements WINDOWS OS To be able to download photos and videos to your PC using the “Vivitar® Experience™ Image Manager” Software, you will need the following minimum configuration: Microsoft® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7 ... -
Page 11: Powering The Camera On/Off
Powering the Camera On/Off Make sure the batteries have been inserted properly into your digital camera. If your camera comes with a rechargeable lithium battery, make sure it is fully charged before the first use. Make sure an SD card has been inserted into your camera. (SD card up to 32GB - SD Card not included) Please see Initial Camera Setup for more information. -
Page 12: Changing Camera Mode
Changing Camera Mode Your camera has three main modes: Photo Capture Mode - Use this mode to capture photos with your camera. Video Capture Mode - Use this mode to capture videos with your camera. Playback Mode (for photos and videos) - Use this mode to view the photos and videos you have already taken with your camera. -
Page 13: Camera Options: Flash, Macro, Zoom
Camera Options: Flash, Macro, Zoom Flash Options There are several Flash options available on your camera. The options appear on the Photo Capture Mode LCD screen in sequence. To change the Flash mode, press the UP Quick Function button until you arrive at your desired settings. - Page 14 The flash is enabled for each photo. NOTE: If you use this option in a well lit environment, your photo Forced On may be appear too bright/light (overexposed). Eliminates the red-eye effect in a photo caused by flash. Red Eye Reduction Macro Options Your camera contains a Macro Switch that allows you to manually enable or disable the Macro...
- Page 15 NOTE: The Macro mode must be turned OFF when you want to use the following features of your camera: Flash. Digital Zoom Option You can magnify your subject up to 4 times using the digital zoom while capturing your photos and recording your videos.
-
Page 16: Photo Capture Mode
Please download the test images to your computer using the Vivitar® Experience™ Image Manager software as described below in the section “Getting Photos and Videos from your Camera to Your... - Page 17 Image Resolution The Image Resolution allows you to choose the desired size of the images taken by your camera. Keep in mind that images with a higher resolution will also take up more of your camera‟s memory. The default setting is 3M if no SD card is inserted. For higher resolution image changing please insert a SD memory card first.
- Page 18 Press the Menu/OK button again. Press the Up/Down button to select either: 50 HZ 60 HZ Press the Menu/OK button to confirm. Anti-Shake Function The Anti-Shake feature reduces image distortion that can be caused by movement of the camera while capturing the image. To set this function: Press the Menu/OK button.
- Page 19 Self Timer The Self Timer menu allows you to set a delay between the time that the camera‟s Shutter button is pressed and the actual capture of the picture. This is an optimal feature if you don‟t just want to take the picture but would also like to be in the picture yourself.
-
Page 20: Video Capture Mode
Video Capture Mode The Video Capture Mode allows you to capture videos, recorded with audio, using your Vivitar® digital camera. When the camera is first powered on, the camera will be in Photo Capture Mode. Press the MODE button once to access the Video Capture Mode. - Page 21 Press the Up/Down button to select the RESOLUTION option. Press the Menu/OK button again. Press the Up/Down button to select either: 640 VGA (Higher resolution) 320 QVGA (Lower resolution) Press the Menu/OK button to confirm. Note: By default the video resolution is the higher 640 VGA. ...
-
Page 22: Playback Mode
Playback Mode The Playback Mode allows you to review and edit photos and videos that you‟ve already taken with you camera. When you first turn on the camera, the camera will be in Photo Capture mode by default. Press the MODE button twice to open the Playback Mode. ... - Page 23 Deleting Images (Photos and Videos) You may delete images directly from the memory card on your camera. The images can only be deleted while in the Playback mode. In Playback mode, press the Menu/OK button. Press the Up/Down button to select one of the following options: Delete One: in order to delete the current image selected.
- Page 24 Formatting You can use the Format menu to delete all of the content that is currently on your camera‟s memory or SD Memory Card. Keep in mind that formatting the memory card will permanently delete all of the content on your camera’s memory –...
-
Page 25: Installing The Software
Installing the Software You must be connected to the Internet to install and run the “Vivitar® Experience™ Image Manager” Software. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open. On PC: The “Vivitar® Experience™ Image Manager Installer” window appears. If the window does not appear, open the application‟s CD/DVD drive and click on “Setup.exe”... - Page 26 Manager” has been successfully installed. Click the “Launch”/“Launch Vivitar® Experience™ Image Manager” to open the application. 12) If you close the application you can run the “Vivitar® Experience™ Image Manager” from the Programs (PC) or Applications (MAC) menu on your computer.
-
Page 27: Connecting The Camera To The Computer
Connecting the Camera to the Computer Use the supplied USB cable to connect your camera to your computer. Power the camera on. The first time you connect the device to the computer you will have to wait a few seconds until the computer recognizes the device. -
Page 28: Get Started
Edit images using automatic and manual tools Use automatic “Geotagging” with built in Google Maps For more details on how to use the “Vivitar® Experience™ Image Manager”, open the Help file or click the “Take a Tour” button on the application’s Home page. -
Page 29: Transferring Images From My Camera To My Computer Manually
Transferring Images from my Camera to my Computer Manually Transferring Photos and Videos: WINDOWS Use the supplied USB cable to connect your camera to your computer. „MSDC‟ appears on the LCD – indicating that your camera is now connected to the computer as a Mass Storage Device. -
Page 30: Camera Maintenance
Transferring Photos and Videos: Apple iPad NOTE: Please check your device packaging for compatibility with the iPad. Apple iPad Camera Connection: For models that are compatible with the iPad, photos and videos can be imported from your digital camera to your iPad by following either one of the options below: 1) Connecting your digital camera to your iPad using an iPad Camera Connector: Plug the Camera Connector into the dock connector port on your iPad, and then attach your digital camera using a USB cable (included) to the Camera Connector. -
Page 31: Sakar Warranty Card
Sakar Warranty Card This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year from the time of purchase. -
Page 32: Technical Support
Technical Support For technical support issues please visit our website at www.vivitar.com. You can find manuals, software and FAQ‟s at the website. Can‟t find what you are looking for? E-mail us at support@vivitar.com and one of our technical support team members will answer your questions.
