Wheelock SA-H5-B Installation Instructions Manual

273 Branchport Avenue
Long Branch, N.J.
(800) 631-2148
www.wheelockinc. com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.
MODEL NUMBERS:

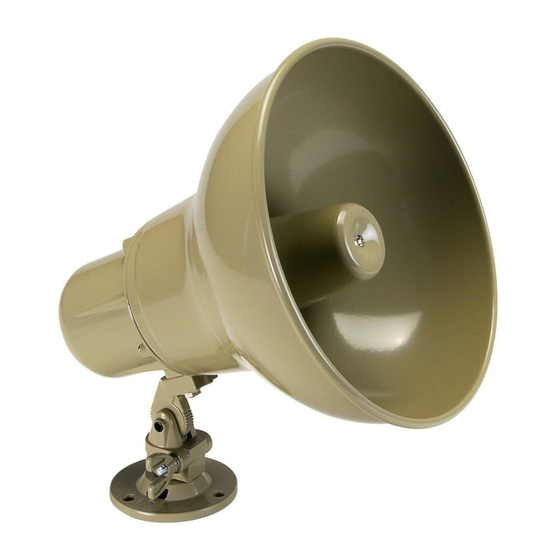

SA-H5-B 8" HORN SPEAKER W/5 WATT AMPLIFIER
SA-H15-B 8" HORN SPEAKER W/15 WATT AMPLIFIER
GENERAL:
Horn speakers with built-in amplifiers are used for one-way voice paging, background music, and tone alerting in large indoor and
outdoor and/or noisy locations. Model SA-H5-B has a built-in 5 watt amplifier, and model SA-H15-B has a built-in 15 watt
amplifier. Both models have a built-in volume control. The horn speakers with built-in amplifier are used in the following manner.
Figure 1 shows a zone paging application used with Wheelock's Zone Page Control Module. The horn speaker can also be used to
provide single-zone paging when connected directly to an unused Central Office (C.O.) line port, which can be programmed to
function as a 600 Ohm Audio Page Port (i.e., does not require Talk Battery). See Figure 2.
NOTE: All CAUTIONS and WARNINGS are identified by the symbol
WARNING: READ THESE INSTRUCTIONS CAREFULLY.
FOLLOWING INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION,
INSTALLATION AND/OR OPERATION OF THESE PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD
RESULT IN PROPERTY DAMAGE, SERIOUS INJURY OR DEATH TO YOU AND/OR OTHERS.
Figure 1.
*NOTES:
1. Some telephone systems require that the C.O. trunk port (loop start) or C.O. line port be equipped with a trunk card, page card or
other equipment. Consult the telephone manufacturer's system manual for equipment or programming required.
2. If unused C.O. port requires talk battery to pass audio (most do) then a Wheelock Zone Control is required as an interface for
zoned paging systems. For single-zone paging a Wheelock PRM-150 Preamplifier with an RPS-2406 power supply is required as
an interface.
Figure 3 shows a horn speaker w/amplifier connected to a tone generator for telephone alerting or night ringing, with paging.
Copyright 1993, 2000 Wheelock Inc. All rights reserved.
07740
INSTALLATION INSTRUCTIONS
HORN SPEAKER WITH AMPLIFIER
Thank you for using our products.
. All warnings are printed in bold capital letters.
FAILURE TO COMPLY WITH ANY OF THE
See notes 1 and 2 below.
Figure 2.
P82580 B
Sheet 1 of 8
