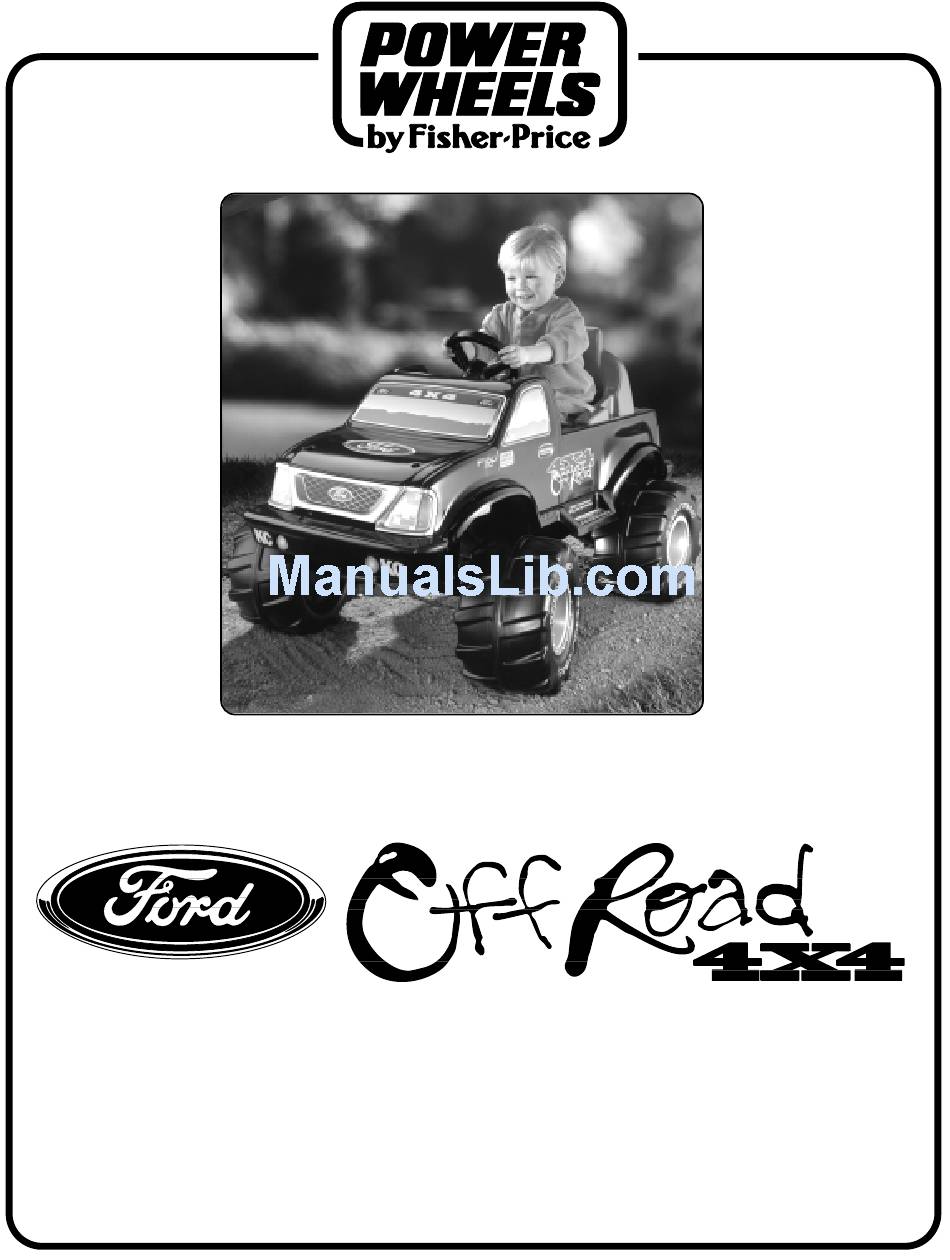

Owner's Manual
with Assembly Instructions
Please read this manual and save it with your original sales receipt.
For Model 75548
Tools needed for assembly: Phillips Screwdriver, Slotted Screwdriver, Hammer, and Safety Scissors (tools not included).
Use only with a Power Wheels
®
6 Volt Battery with A-Style Connector and Built-in Thermal Fuse
and a Power Wheels
®
Super 6
™
Volt Charger (both included).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price OFFROAD 75548
Summary of Contents for Fisher-Price OFFROAD 75548
- Page 1 ® Product features and decoration may vary from the picture above. Ford, F-150 and associated trademarks used under license from Ford Motor Company. Goodyear (and winged foot design) and Wrangler (for tires) are trademarks of The Goodyear Tire & Rubber Company, used with permission. Fisher Price, Power Wheels and Power Stick are U.S.
-
Page 2: Table Of Contents
Important Information ..............2 Warnings and Cautions . -
Page 3: Warnings And Cautions
ELECTRICAL HAZARD • Batteries can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. - Use of the wrong type battery or charger could cause a fire or explosion resulting in serious injury. -
Page 4: Parts
• If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. - Page 5 Parts Hood Vehicle Body Tailgate Seat Knob Steering Wheel Steering Column .354 Cap Nut - 3* #8 x 1" Screw – 12 #6 x " Screw – 2 #6 x " Screw – 2 All Shown Actual Size * For your convenience, an extra .354 cap nut has been included.
-
Page 6: Parts Diagram
Hood Microphone Steering Column Steering Wheel Steering Wheel Cap Cap Nut – 2 Dash Cover Parts Diagram Parts Knob Seat Tailgate Left Taillight Right Taillight Vehicle Body Grille 6 Volt Battery Battery Clamp Seat Belt Straps - 2 ™ Super 6 Volt Charger Part Not Shown: Label Sheet... -
Page 7: Battery Charging
ELECTRICAL HAZARD WARNING • Batteries can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system. -
Page 8: Battery Charging
A-Style Charger Connector A-Style Battery Connector Incorrect • Plug the charger and battery connectors together. Push firmly to make sure the two connectors are completely joined. Battery Charging NO GAP Correct • Plug the charger into a standard 120 volt wall outlet. Note: If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”. -
Page 9: Assembly
WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehi- cle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the bat- tery, or help in assembly of the vehicle. - Page 10 Steering Column Bottom View • Fit the curved end of the steering column into the hole in the front axle. Note: You may need to straighten the vehicle tires and rotate the steering column to fit it into the hole in the front axle.
- Page 11 Seat Belt Straps Second T-tab Seat • Make sure the two seat belt straps are fastened together. If they are not fastened together, connect the fasteners to form one seat belt. • Insert the T-tab at one end of the seat belt through the slot in one arm of the seat.
- Page 12 Inner Holes Front Bumper • Insert a #8 x 1" screw into each of the two inner screw holes in the top of the front bumper. • Tighten the screws with a Phillips screwdriver. Do not over-tighten. • Insert a #8 x 1" screw into each of the two outer screw holes in the top of the rear bumper.
- Page 13 Slots Grille Opening Grille Opening Side Tab Tabs Grille • Face the front of the vehicle. • Insert the two tabs at the top of the grille into the slots in the front of the vehicle body. • Press firmly to snap the tabs into the slots. •...
-
Page 14: Label Decoration
Proper label application will help to keep the labels look- ing their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. -
Page 15: Battery Installation
Important! Use only a Power Wheels A-style connector and built-in thermal fuse. Use of any other battery can damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels Super 6 ®... -
Page 16: Battery Care And Disposal
Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician. If acid is internally ingested, give water, milk of magne- sia or egg whites immediately. -
Page 17: Rules For Safe Driving
RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other bodies of water to prevent drownings - generally level to prevent tipovers - away from steps, driveways, roads and alleys. -
Page 18: How To Operate Your Vehicle
To Drive • Make sure the Power Stick™ shifter is in the forward position • Press down on the foot pedal forward at a maximum of 3 • Help your child practice steering to learn how far and how quickly to turn the steering wheel when driving forward. To Stop •... -
Page 19: Caring For Your Vehicle
• Check all screws, retainers and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. Remember to charge the battery at least once per month while your vehicle is not in regular use. -
Page 20: Bumper - To - Bumper* Limited Warranty
Bumper - to - Bumper* Limited Warranty *One year limited warranty from date of purchase on Power Wheels ® vehicle. Six month limited warranty on 6 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®... -
Page 21: Problems And Solutions Guide
Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels Authorized Service Center list beginning on page 24. -
Page 22: Problems And Solutions Guide
Problems and Solutions Guide Problem Vehicle was running but Loose wire or loose connectors suddenly stopped Tripped thermal fuse Short run time (less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly... - Page 23 Problems and Solutions Guide Problem Vehicle runs sluggishly (cont.) Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful Sometimes the vehicle doesn’t Loose wire or connector run, but other times it does Motor or electrical switch damage When the foot pedal is pressed, Loose wire or connector...
-
Page 24: Authorized Service Centers
We are continually expanding our Authorized Service Center Network. Please check this listing for the Authorized Service Center nearest you. If there is not one in your area, please call Power Wheels ® Consumer Relations at 1-800-348-0751. ALABAMA BIRMINGHAM - Frigid Appliance Center, 1861 Centerpoint Rd., 35215, (205) 853-3952 BIRMINGHAM - Frigid Appliance Center, 701 Graymont Ave. - Page 25 ROCKFORD - Sun Appliance Sales & Service, 3112 N. Rockton Avenue, 61103, (815) 964-3866 SPRINGFIELD - Rexx Battery Co. Inc., 2505 South Grand East, 62703, (217) 535-4096 TAYLORVILLE - Battery Specialists +, Golf Cars, 62568, (217) 824-3943 INDIANA EVANSVILLE - Electro Hygiene Co., 1614 South Kentucky, 47714, (812) 425-2671 FT.
- Page 26 TOMS RIVER - South Jersey TV Service, 1171 Fischer Road, 08753, (732) 506-9400 TRENTON - Tattersall Inc. #5459, 309 N. Willow Street, 08618, (609) 393-4293 NEW MEXICO ALBUQUERQUE - Appliance Service Center, 5505 Silver Avenue, SE, 87108, (505) 265-7774 CLOVIS - Burns Hardware Do-It Center, 1511 N. Prince, 88101, (505) 769-2528 NEW YORK ALBANY - Lake Electronic Service, 1650 Central Avenue,...
- Page 27 FT. WORTH - Ft. Worth Shaver and Appliance, 1012 West 7th Street, 76102, (817) 335-9970 HOUSTON - Brand Appliance Service Center, 1970 FM 1960 W, 77090, (281) 537-7795 HOUSTON - Brand Appliance Service Center, 5727 Richmond Avenue, 77057, (713) 782-8910 KILLEEN - Master Tech Repairs, 501 W.
- Page 28 ® For the location nearest you, refer to the Authorized Service Center list in this manual. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2000 Mattel, Inc. All Rights Reserved. Printed in the U.S.A. 75548pr-0921...
