HANNspree K223-10A1 User Manual

HANNspree K223-10A1 User Manual

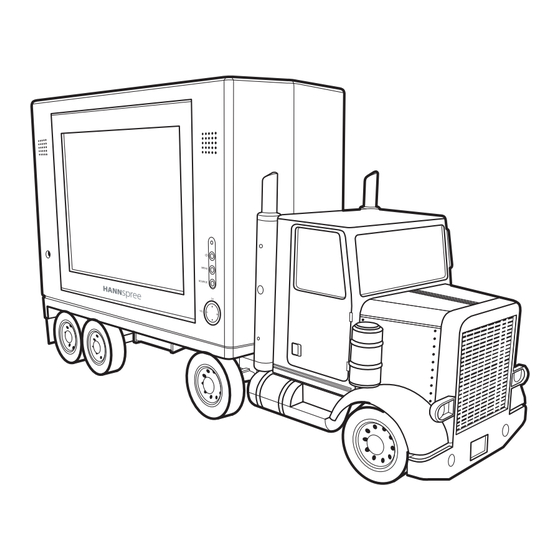

9.6" liquid crystal display television
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2F, No.362, Jui-Kuang Rd., Neihu District,
Taipei City 114, Taiwan, R.O.C.
TEL: 886-2-87520000
FAX: 886-2-87527092
www.hannspree.com
NTSCTVTWEN1203
MAC-001009
9.6" Liquid Crystal Display
Television
K223-10A1
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K223-10A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HANNspree K223-10A1

Summary of Contents for HANNspree K223-10A1

  • Page 1 9.6" Liquid Crystal Display 2F, No.362, Jui-Kuang Rd., Neihu District, Taipei City 114, Taiwan, R.O.C. Television TEL: 886-2-87520000 FAX: 886-2-87527092 K223-10A1 www.hannspree.com User's Manual NTSCTVTWEN1203 MAC-001009...

  • Page 2: Table Of Contents

    Table of Contents 1. Warranty and Service ............ 3 2. Preface ................. 4 3. Description of Warning Symbols ........5 4. Safety Notices ............... 6 5. Regulatory Information ..........14 6. Introducing the TV ............16 Features ..............16 7. Checking Package Contents ........17 8.
  • Page 3 Table of Contents 11. Adjusting On-Screen Display (OSD) Settings ....31 Brightness ............... 32 Contrast ..............33 Video Setting ............34 Hue ..............35 Saturation ............36 Sharpness ............37 Color Temperature ..........38 Audio Setting ............39 Treble ..............40 Bass ..............

  • Page 4: Warranty And Service

    TV). With this product, you will be able to enjoy superior audio and video while enriching your lifestyle with advanced technology. The Hannspree TV is warranted for one year limited service from the date the product is received (as shown on the Warranty and Service Manual);...

  • Page 5: Preface

    No part of this documentation may be reproduced in any form by any means without prior written authorization of Hannspree, Inc., and its licensors, if any.

  • Page 6: Description Of Warning Symbols

    Description of Warning Symbols Warning Caution This symbol is used to remind This symbol is used to remind users to pay attention to users to pay attention to the important descriptions regard- danger of electric shocks due ing usage and maintenance to dangerous internal non- (repair) or additional impor- insulated components.

  • Page 7: Safety Notices

    Safety Notices Power Supply Safety Notes 1. To avoid electric shocks, do not use an extended power cord or an outlet that does not match this product's plug or leaves the plug exposed. 2. This product has a 3-pin grounded plug. The third pin connects to ground;...
  • Page 8 Before You Proceed 1. Read the Safety Notices and the User’s Manual carefully before turning the product on. 2. Keep your User’s Manual in a safe place for future reference. Keep the box and packaging in case the product needs to be shipped in the future.
  • Page 9 Optimal Viewing Distance...

  • Page 10: Important Safety Instructions

    Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 11 10. Protect the power cord from being walked on or pinched particularly at the plug, conve- nience receptacles, and the point where they exit from the apparatus. 11. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
  • Page 12 Personal Safety To avoid overloading the power supply, do not plug too many electrical devices into an outlet or extension cable. Dangerous high-voltage electric power compo- nents are located inside the TV. To avoid electric shock, do not disassemble the casing. Do not place or drop metals, small objects, or flammable materials in the vent to avoid an elec- tric shock or a fire.
  • Page 13 Installation To avoid damage to power circuits, do not place the TV in locations where there is excessive steam or dust. Do not place the TV on a bed, sofa, carpet, or in a sealed cabinet to avoid blocking the product's vents.
  • Page 14 Operation This product is designed for power sources as labeled on the casing. Avoid using any other power accessories to avoid electric shock or other damage. The plug can be inserted into an outlet in only one direction. Notify a qualified service techni- cian if you cannot plug it in correctly.

  • Page 15: Regulatory Information

    Regulatory Information FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is sub- ject to the following two conditions: (1) This device may not cause harm- ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 DOC Compliance Notice This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications.This device complies with Canada ICES-003 Class B. CE Conformity Statement This device complies with the requirements set out in the Council Direc- tive on the approximation of the Laws of the Member States relating to...

  • Page 17: Introducing The Tv

    Introducing the TV Thank you for purchasing this Liquid Crystal Display TV. Your LCD TV is designed to be safe, versatile, and easy to use. The semi-truck design makes it a fun addition to any room. You can watch broadcast or cable television channels, and easily con- nect a VCR, VCD, or DVD player or a game device to the standard RCA and S-Video input ports that are...

  • Page 18: Checking Package Contents

    Checking Package Contents Make sure the following components are included in the box. Contact your vendor immediately if anything is missing or damaged. The tapes on the corners of the screen protect the LCD during shipment. Peel them off and discard them before using the TV.

  • Page 19: Getting To Know Your Tv

    Getting to Know Your TV Front View Signal sensor Description Function Power LED Green LED indicates power on. Power Turns the TV on and off. Turns the On-Screen Display (OSD) Menu menus on and off. Selects the input source to be displayed Source (TV/CATV, AV, or S-Video).

  • Page 20: Input And Output Ports

    Input and Output Ports SPEAKER Description Function Connects to headphones/speakers SPEAKER or other audio device. Connects to VCR/VCD/DVD player CVBS RCA cables or a game device. Connects to the included power DC 12V adapter. Connects to an antenna or CATV cable television line.

  • Page 21: Attaching And Detaching The Semi Truck

    Attaching and Detaching the Semi Truck This section describes how to attach and detach the Semi Truck cab. Attaching the Semi Cab Refer to the illustration below. Push the switch (A) and push the legs down (B). Put the trailer pin (C) into the cab hole (D) as shown.

  • Page 22: Detaching The Semi Cab

    Detaching the Semi Cab You can detach the cab from the LCD panel. Refer to the illustration below. Pull the cab away from the LCD panel. Pull the legs up. Place the LCD panel on a stable surface.

  • Page 23: Getting Started

    Getting Started Connecting to an Antenna or Cable TV Connect one end of the UHF or CATV cable to the ANT Jack (VHF/UHF IN Jack) on the back of the TV. Connect the other end of the VHF/UHF (Antenna) or CATV cable to the antenna socket or CATV cable.

  • Page 24: Connecting To Av Devices

    Connecting to AV Devices Connect external devices such as a VCR, VCD or DVD player, or video game to the TV using the 4-IN-1 cable. Connecting to a VCR/VCD/DVD Player The illustration presented here shows how to connect the TV to a VCR and VCD or DVD player.

  • Page 25: Connecting To A Video Camera

    Connecting to a Video Camera The instructions presented here are a general guide to connecting the TV to a camcorder or other type of digital camera. Actual connec- tions may vary according to the make and model of the device. Refer to the user’s manual included with the camcorder or camera for more detailed instructions.

  • Page 26: Connecting To A Game Device

    Connecting to a Game Device The instructions presented here are a general guide to connecting the TV to a game device using the RCA Jacks provided (some game devices may require a unique adapter that is not provided). Actual connections may vary according to the make and model of the game device.

  • Page 27: Connecting External Speakers Or Headphones

    Connecting External Speakers or Headphones External speakers or headphones may be used to listen to the TV rather than using the built-in speakers. Connect external speakers or headphones to the headphone line out port as illustrated. Headphones SPEAKER SPEAKER Speakers Speaker/Headphone line out port Notes...

  • Page 28: Connecting The Power Adapter

    Connecting the Power Adapter Connect the power cord to the power adapter as illustrated. Plug the power adapter connector into the DC-IN input jack on the rear panel of the TV. Insert the three-pronged plug at the other end of the power cord into a power outlet.

  • Page 29: Using The Tv

    Using the TV Using the Remote Control For best results, use the remote control within a distance of 5 meters from the front of the TV’s signal sensor. Do not exceed an angle of 30 degrees when pointing at the signal sensor. Refer to the following illustration.

  • Page 30: Turning The Tv On And Off

    Turning the TV On and Off Press the POWER button on the control panel (or remote Power button control) . The power LED Power LED changes from dark to green, indicating that the power has TV:10 been turned on. Press the POWER button again;...

  • Page 31: Switching Source Signals

    Switching Source Signals Press SOURCE on the remote Current source setting control or control panel to select Source button the incoming source signal. S-VIDEO The current source setting (TV/CATV, S-Video, or AV) appears on the top left corner of the screen. Note The TV supports S-Video input in addition to normal video and audio sig- nals.

  • Page 32: Adjusting On-Screen Display (Osd) Settings

    Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu system provides a quick and simple method to adjust your TV’s settings. This chapter describes how to change each of the available settings. The OSD can be used with either the remote control or the front con- trol panel.

  • Page 33: Brightness

    Brightness Press MENU to enter the OSD Main Menu menus. Press the CH UP button or CH Brightness DOWN button to select Brightness. Press MENU. The brightness slide ENTER bar appears. Press CH UP button to increase the brightness. Press CH DOWN button to decrease the brightness.

  • Page 34: Contrast

    Contrast Press MENU to enter the OSD Main Menu menus. Press the CH UP button or CH Contrast DOWN button to select Contrast. Press MENU. The contrast slide ENTER bar appears. Press CH UP button to increase the contrast. Press CH DOWN button to decrease the contrast.

  • Page 35: Video Setting

    Video Setting Main Menu Video Setting ENTER Press the MENU button to enter Press the CH UP button or CH the OSD menus. DOWN button to select Video Setting. Press MENU to enter the Video Setting menu.

  • Page 36: Hue

    Press the CH UP button or CH Video Setting DOWN button to select Hue. Press MENU to enter the Hue menu. Press CH UP button to increase the ENTER hue towards the red spectrum. The image becomes more red. Press CH DOWN button to decrease the hue towards the green spectrum.

  • Page 37: Saturation

    Saturation Press the CH UP button or CH Video Setting DOWN button to select Saturation. Press MENU to enter the Saturation Saturation menu. Press CH UP button to increase the ENTER saturation. The screen image becomes more vibrant. Press CH DOWN button to decrease the saturation.

  • Page 38: Sharpness

    Sharpness Press the CH UP button or CH Video Setting DOWN button to select Sharpness. Press MENU to enter the Sharpness Sharpness menu. Press CH UP button to increase the ENTER sharpness. Press CH DOWN button to decrease the sharpness. Press MENU again to confirm the setting and return to the Video Set- ting menu.

  • Page 39: Color Temperature

    Color Temperature Press the CH UP button or CH Video Setting DOWN button to select Color. Press MENU to enter the Color Color menu. The following three color temperatures are available. ENTER Standard Color Press the CH UP button or CH DOWN button to select Standard, then press MENU.

  • Page 40: Audio Setting

    Audio Setting Main menu A u d i o S e t t i n g ENTER Press the MENU button to enter Press the CH UP button or CH the OSD menus. DOWN button to select Audio Setting. Press MENU to enter the Audio Setting menu.

  • Page 41: Treble

    Treble Press the CH UP button or CH A u d i o S e t t i n g DOWN button to select Treble. Press MENU to enter the Treble Tr e b l e menu. Press CH UP button to increase the ENTER treble.

  • Page 42: Bass

    Bass Press the CH UP button or CH A u d i o S e t t i n g DOWN button to select Bass. Press MENU to enter the Bass Bass menu. Press CH UP button to increase the ENTER bass.

  • Page 43: Balance

    Balance Press the CH UP button or CH A u d i o S e t t i n g DOWN button to select Balance. Press MENU to enter the Balance Balance menu. Press CH UP button to shift the bal- ENTER ance to the right speaker.

  • Page 44: Tv Setting

    TV Setting Main Menu TV Setting ENTER Press the MENU button to enter Press the CH UP button or CH the OSD menus. DOWN button to select TV Setting. Press the MENU button to enter the TV Setting menu.

  • Page 45: Tv/Catv

    TV/CATV Press the CH UP button or CH Setting DOWN button to select TV/CATV. AUTO MENU Channel Press MENU to enter the TV/CATV TV/CATV menu. The following choices are CATV available. ENTER Receiving Broadcast TV Setting AUTO MENU Channel Press CH UP button or CH DOWN but- TV/CATV ton to select TV, then press MENU.

  • Page 46: Mts

    Press the CH UP button or CH Setting DOWN button to select MTS. AUTO MENU Channel Press MENU to enter the MTS menu. MAIN DUAL ENTER MAIN Setting Press the CH UP button or CH AUTO MENU Channel DOWN button to select MAIN (default).

  • Page 47: Auto Program

    Auto Program Press the CH UP button or CH Setting DOWN button to select AUTO MENU Channel Auto Program. AUTO Program Press MENU to enter the Auto Pro- gram menu. ENTER Press the CH UP button or CH DOWN button to select Yes or No. Press MENU.

  • Page 48: Manual Program

    Manual Program This function allows you to locate channels for adding to or erasing from preset channels. Press the CH UP button or CH Setting DOWN button to select Manual Pro- AUTO MENU Channel gram. Manual Program Press MENU to enter the Manual DOWN Program menu.

  • Page 49: Channel Add/Erase

    Channel Add/Erase Channel to be added or erased must be selected from Manual Program. Press the CH UP button or CH Setting DOWN button to select CH. AUTO MENU Channel Add/Erase. CH.Add/Erase Press MENU to enter the CH. Add/Erase menu. Select one of the Erase following options.

  • Page 50: Miscellaneous Setting

    Miscellaneous Setting Main Menu Miscellaneous ENTER Press the MENU button to enter Press the CH UP button or CH the OSD menus. DOWN button to select Miscellaneous. Press MENU to enter the Mis- cellaneous menu.

  • Page 51: Osd Position

    OSD Position Press the CH UP button or CH OSD Position OSD Position DOWN button to select OSD Position. H - P o s i t i o n H - P o s i t i o n Press MENU to enter the OSD Position menu.

  • Page 52: Language

    Language Press the CH UP button or CH Miscellaneous DOWN button to select Language. Press MENU to enter the Language Language English menu.The screen displays the available OSD languages: English ENTER T-Chinese (Traditional Chinese). Press the CH UP button or CH Miscellaneous DOWN button to select a language.

  • Page 53: Sleep Timer

    Sleep Timer The sleep timer turns the TV off automatically after a set period of time. Press the CH UP button or CH Miscellaneous DOWN button to select Sleep. Press MENU to enter the Sleep Sleep menu. 30 60 90 120 The screen displays the available ENTER sleep timer setting:...

  • Page 54: Osd Display

    OSD Display This setting allows you to set whether information such as the selected channel is shown on the TV screen when the DISPLAY but- ton is pressed. Press the CH UP button or CH Miscellaneous DOWN button to select OSD Display.

  • Page 55: Reset

    Reset The Reset function returns all of your TV’s user settings to their fac- tory defaults. Warning: The reset function will erase all of your custom and favorite channel settings, and will reset all display settings (such as contrast, bright- ness, etc.) to the factory default values.

  • Page 56: Taking Care Of Your Tv

    Taking Care of Your TV Turn the power off before you begin cleaning the For best results, use a clean lens cloth to remove dust and fingerprints from the screen. Do not wipe the shell of the TV with alcohol, methanol, gasoline or oil products to avoid dam- aging the finish.

  • Page 57: Troubleshooting

    Troubleshooting Situation Solution • Connect the power cord properly. Press the POWER button on the control • panel or remote control. Press the SOURCE button to cycle through • connected video sources. No picture and sound. Press the CH UP button or CH DOWN but- •...
  • Page 58 Situation Solution • Make sure the source device is functioning properly. • Set the volume to a higher level. No sound but have image. • Make sure the audio cable is connected securely. • Turn the mute off. • Make sure the video signal cable is con- Screen image turns over.

  • Page 59: Specifications

    Specifications K223-10A1 LCD Panel Size 9.6-inch TFT Aspect Ratio Best Resolution 800 (horizontal) x 600 (vertical) Maximum Display Area 194.4 mm (H) x 145.8 mm (W) TV System NTSC S-Video Input and Composite Video Input (through the Video System 4-IN-1 cable)

  • Page 60: Glossary

    Glossary Aspect Ratio The ratio of width to height of a film, image or display screen. Broadcast TV Broadcasting video signals using high-frequency electromagnetic waves to distribute television channels to viewers (standard TV broadcast). CATV Community Antenna Television, the original name for cable TV. A television distribution system that uses coaxial cable instead of the traditional radio broad- casting (over-the-air) method to deliver television, FM radio, and other services to consumers.
  • Page 61 with camcorders, VCRs, and quality receivers and amplifiers to provide sharper pic- tures. A compact disk format developed in 1993 by Sony and Philips to capture full- motion video. A standard Video CD can hold 74 minutes of near VHS-quality video and CD-quality sound.
