Oilless, single stage, direct drive, electric air compressor (8 pages)
Summary of Contents for Powermate S0200412
Page 1

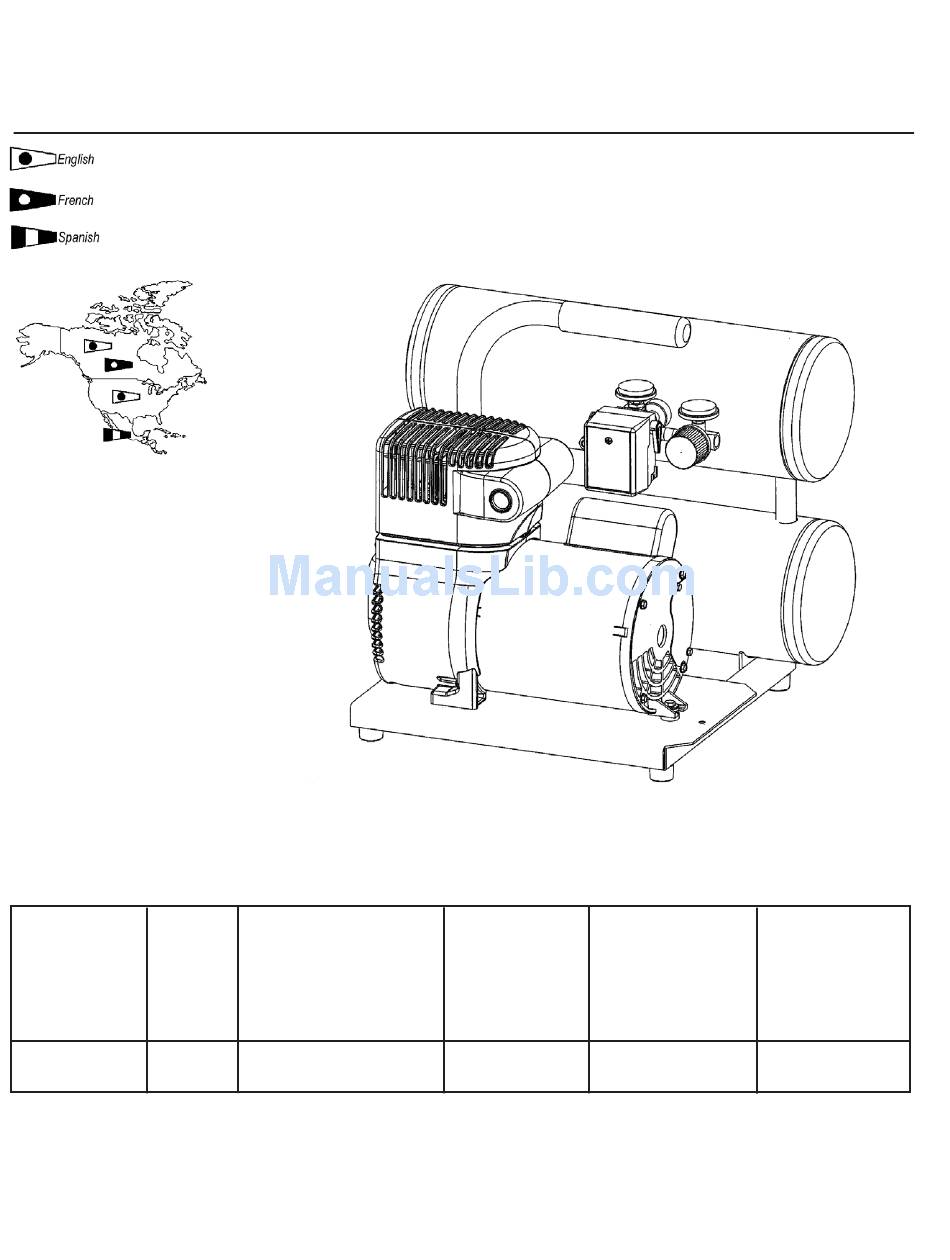

D’OUVERTURE) H.P. (MODÉLE) (CAPACIDAD DEL (PRESION DE (VOLTAJE (PRESION DE (MODELO) TANQUE - LITROS) DESCONEXION) (CV) AMP/FASE) CONEXION) 115/15/1 4 (15) S0200412 (6,6 bar) (8,6 bar) Questions? See back page._____Questions ? Consultez la page final._____¿Preguntas? Vea la página final. 6-04...
Page 2
PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS Torque to 20-30 lbs-in Torque to 10-15 lbs-in Serrez de 20 à 30 lbs-in Serrez de 10 à 15 lbs-in Torsión hasta 2,3 - 3,4 N m Torsión hasta 1,1 - 1,7 N m Torque to 50-75 lbs-in Torque to 125-150 lbs-in Serrez de 50 à...
Page 3
PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 150-0102 1 Tank assembly .......Ensemble du réservoir, ..Conjunto de tanque, includes 1A-1D .......inclut 1A-1D ......incluye 1A-1D 093-0030 1 Handle grip ......Poignée........Empuñadura 072-0001 1 Petcock ........Robinet de décompression ..Llave de desagüe...
Page 4
PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS Note: Tighten compression nut #3A handtight plus 1 full turn. Note: Serrez l'écrou #3A de compactage solide plus 1 plein tour. Nota: Apriete la tuerca #3A de la compresión handtight más 1vuelta completa. 200-2267...
Page 5
PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 061-0121 1 Screw........Vis........Tornillo 071-0016 1 Strain Relief ......Soulagement de traction..Aliviador de esfuerzo 034-0150 1 Pressure switch ......Interrupteur ......Manómetro includes items 3A-3B .....inclut les élément 3A-3B ..incluye los artículo 3A-3B 136-0064 1 Bleeder valve ......Soupape ......Válvula...
Page 6
PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS Torque to 120-140 lbs-in Serrez de 120 à 140 lbs-in Torsión hasta 13,6 - 15,8 N•m Torque to 110-130 lbs-in Serrez de 110 à 130 lbs-in Torsión hasta 12,4 - 14,7 N•m Torque to 50-65 lbs-in Serrez de 50 à...
Page 7
PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 019-0186 1 Filter........Filtre........Filtro 019-0192 1 Filter/intake muffler....Silencieux de Filter/intake..Silenciador de Filter/intake 061-0186 4 Screw 1/4-20 x 2-1/2” .....Vis........Tornillo hex washer head 042-0104 1 Head ........Tête........Cabezal...
