QSC ABX Comparator User Manual page 6

B CH1
A
INPUT
M
P
B CH2

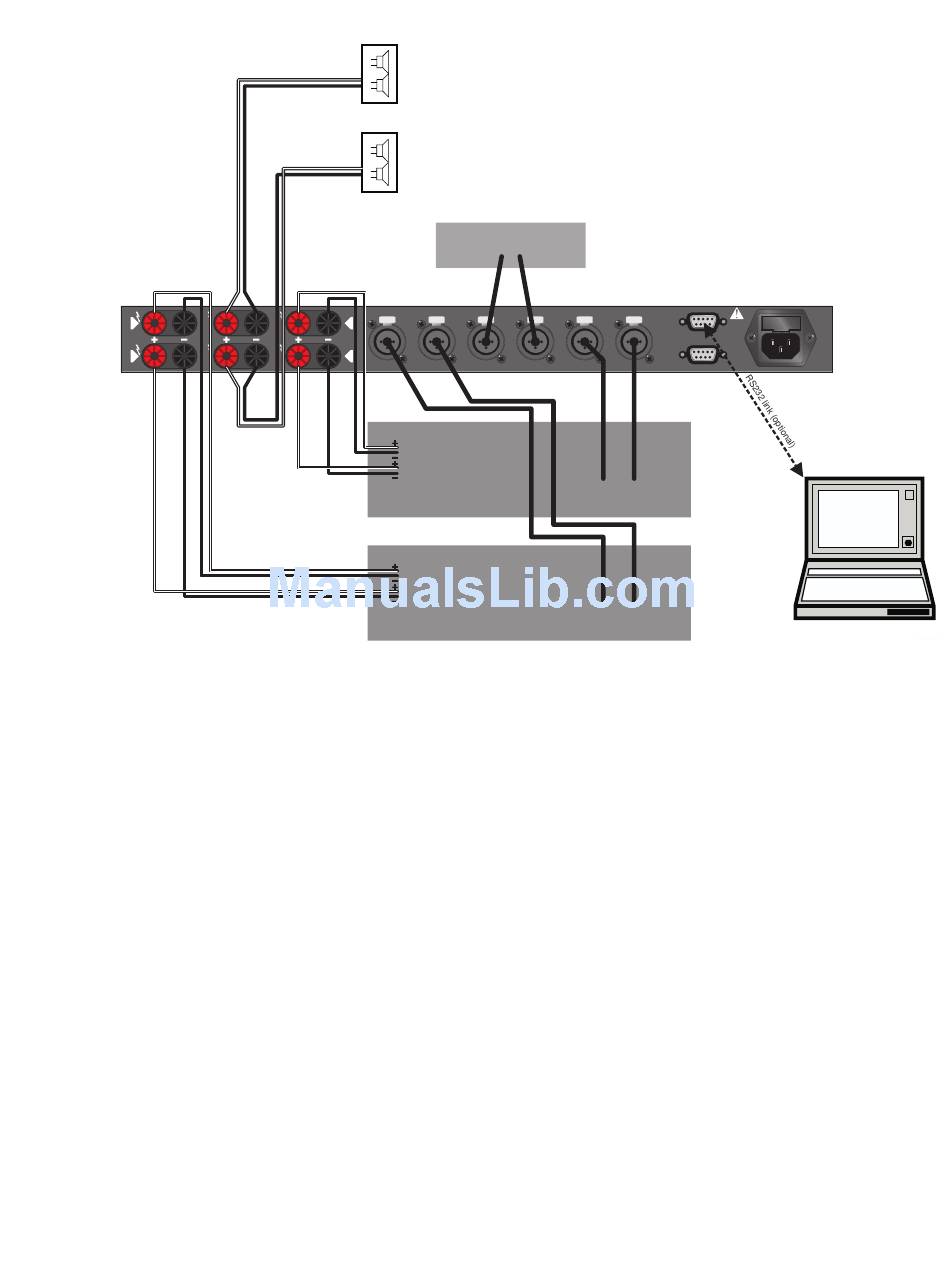

ABX cabling setup for testing amplifiers
• Another pair of shielded audio cables for connecting the ABX to Amplifier B's inputs. One end of each
cable must have a connector suitable for the amplifier's inputs, and the other end must have either
a male 3-pin XLR or a male ¼-inch (6.3 mm) TRS connector for the ABX unit.
• A pair of two-conductor speaker cables for connecting Amplifier A's outputs to the ABX. Prepare one
end of each cable so it is suitable for the amplifier's outputs, with either a connector or stripped wire
ends, as required. The other end must have either a dual banana plug or stripped wire ends, suitable
for connecting to the ABX's binding posts labeled "AMP A."
• Another pair of two-conductor speaker cables for connecting Amplifier B's outputs to the ABX. Prepare
one end of each cable so it is suitable for the amplifier's outputs, with either a connector or stripped
wire ends, as required. The other end must have either a dual banana plug or stripped wire ends, suitable
for connecting to the ABX's binding posts labeled "AMP B."
• One pair of two-conductor speaker cables for connecting the ABX's binding post outputs, labeled "AMP
X," to the speakers. One end must have either a dual banana plug or stripped wire ends, suitable for
connecting to the ABX's binding posts, and the other end must be suitable for connecting to the
speakers' input connection.
Speakers
Speakers
CH2—LINE OUT—CH1
B
CH1 A
A
OUTPUT INPUT
M
P
CH2 A
P 1=G
P 2=+
P 3=-
CH1 out
CH2 out
CH1 out
CH2 out
CD PLAYER
CH2—LINE IN—CH1 CH2—LINE OUT—CH1
A
CH 2 in CH 1 in
AMP A
CH 2 in CH 1 in
AMP B
RS232
REPLACE
FUSE WITH
QSC AUDIO SAME TYPE.
PRODUCTS INC.
SEE USER'S
MANUAL FOR
SLAVE
RATING.
MADE IN
U.S.A.
Computer (optional)
