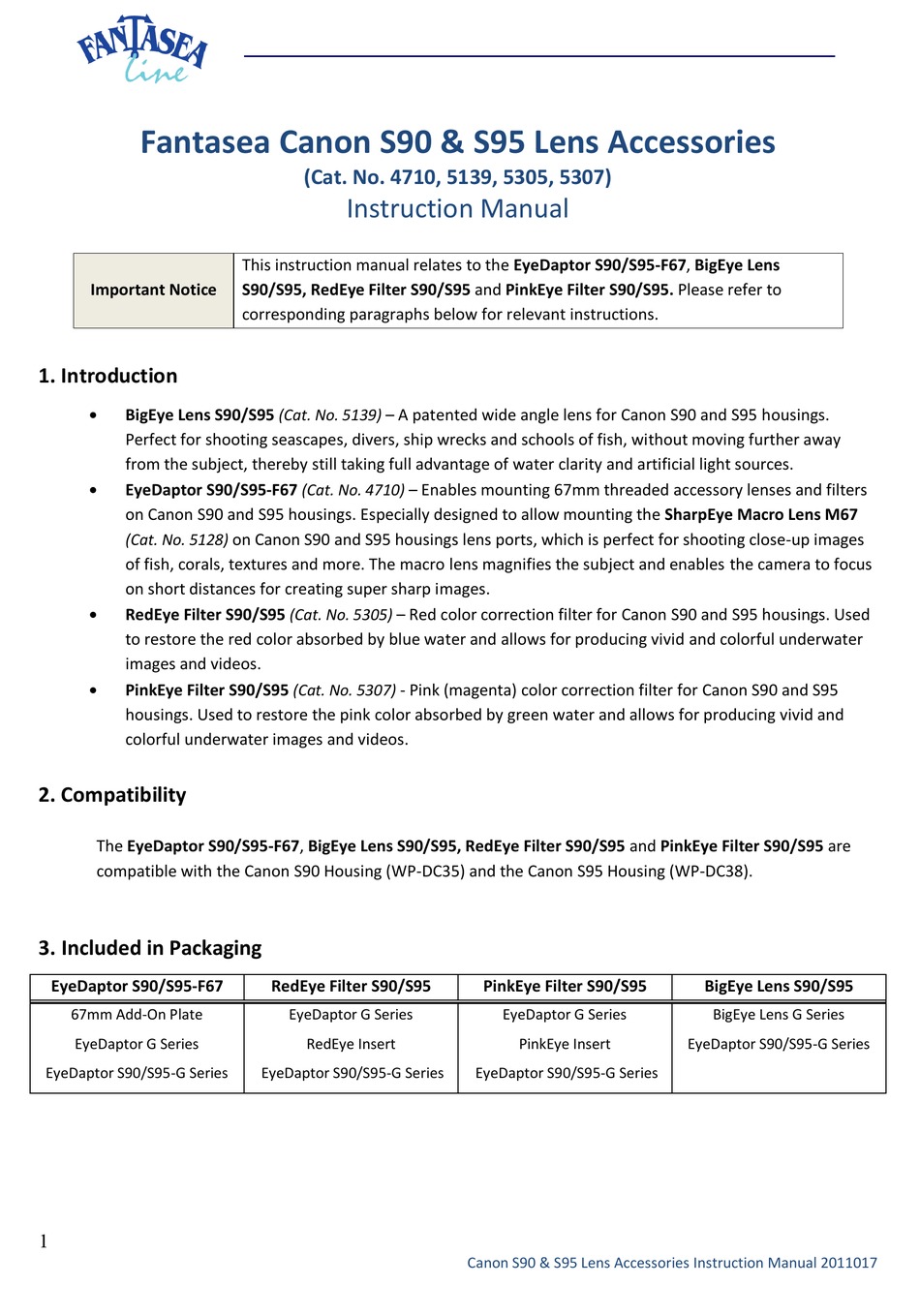

Fantasea Canon S90 & S95 Lens Accessories
Important Notice
1. Introduction

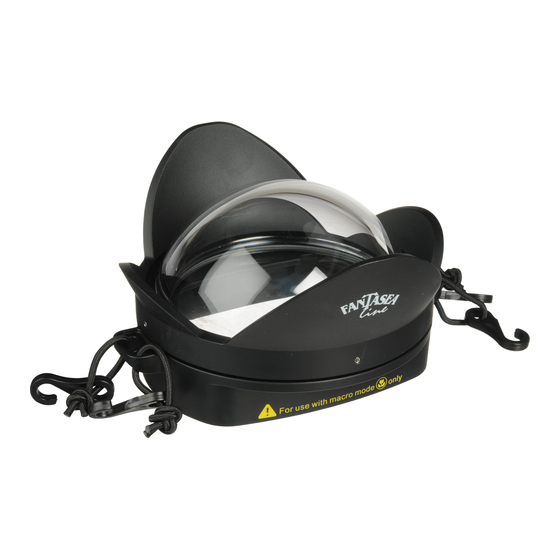

BigEye Lens S90/S95 (Cat. No. 5139) – A patented wide angle lens for Canon S90 and S95 housings.
Perfect for shooting seascapes, divers, ship wrecks and schools of fish, without moving further away
from the subject, thereby still taking full advantage of water clarity and artificial light sources.
EyeDaptor S90/S95-F67 (Cat. No. 4710) – Enables mounting 67mm threaded accessory lenses and filters
on Canon S90 and S95 housings. Especially designed to allow mounting the SharpEye Macro Lens M67
(Cat. No. 5128) on Canon S90 and S95 housings lens ports, which is perfect for shooting close-up images
of fish, corals, textures and more. The macro lens magnifies the subject and enables the camera to focus
on short distances for creating super sharp images.
RedEye Filter S90/S95 (Cat. No. 5305) – Red color correction filter for Canon S90 and S95 housings. Used
to restore the red color absorbed by blue water and allows for producing vivid and colorful underwater
images and videos.
PinkEye Filter S90/S95 (Cat. No. 5307) - Pink (magenta) color correction filter for Canon S90 and S95
housings. Used to restore the pink color absorbed by green water and allows for producing vivid and
colorful underwater images and videos.
2. Compatibility
The EyeDaptor S90/S95-F67, BigEye Lens S90/S95, RedEye Filter S90/S95 and PinkEye Filter S90/S95 are
compatible with the Canon S90 Housing (WP-DC35) and the Canon S95 Housing (WP-DC38).
3. Included in Packaging
EyeDaptor S90/S95-F67
67mm Add-On Plate
EyeDaptor G Series
EyeDaptor S90/S95-G Series
1
(Cat. No. 4710, 5139, 5305, 5307)
Instruction Manual
This instruction manual relates to the EyeDaptor S90/S95-F67, BigEye Lens
S90/S95, RedEye Filter S90/S95 and PinkEye Filter S90/S95. Please refer to
corresponding paragraphs below for relevant instructions.
RedEye Filter S90/S95
EyeDaptor G Series
RedEye Insert
EyeDaptor S90/S95-G Series
PinkEye Filter S90/S95
EyeDaptor G Series
PinkEye Insert
EyeDaptor S90/S95-G Series
Canon S90 & S95 Lens Accessories Instruction Manual 2011017
BigEye Lens S90/S95
BigEye Lens G Series
EyeDaptor S90/S95-G Series
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fantasea EyeDaptor S90
Summary of Contents for Fantasea EyeDaptor S90
- Page 1 Fantasea Canon S90 & S95 Lens Accessories (Cat. No. 4710, 5139, 5305, 5307) Instruction Manual This instruction manual relates to the EyeDaptor S90/S95-F67, BigEye Lens Important Notice S90/S95, RedEye Filter S90/S95 and PinkEye Filter S90/S95. Please refer to corresponding paragraphs below for relevant instructions.
-
Page 2: Identification Of Parts
4. Identification of Parts PinkEye/RedEye Inserts EyeDaptor G Series 67mm Add-On Plate BigEye Lens G Series EyeDaptor S90/S95-G Series 5. Instructions for Use Please use the utmost care and do not use excessive force when assembling and Important Notice disassembling the different accessories, in order to not cause any damage to the product. - Page 3 Image #2 Image #3 d. Remove the 2 stoppers off the EyeDaptor S90/S95-G Series as well, following the same method described above for removing the stoppers off the EyeDaptor G Series. e. Place the EyeDaptor G Series on a flat and protected surface, so that the adaptor configuration (the side that attaches to the housing lens port) is facing up and the “TOP”...
- Page 4 bungee cord to the dedicated slot, double back the bungee cord through itself and pull it in order to tighten it around the slot (image #6). Place the 67mm Add-On Plate on a flat and protected surface, so that the thread is facing down and the concaved side of the plate is facing up (image #7).
- Page 5 Assembling the RedEye/PinkEye Filter S90/S95 a. Install the EyeDaptor S90/S95-G Series inside the EyeDaptor G Series and replace the bungee cords on the EyeDaptor G Series by following the steps described in section 1, paragraphs e-i. b. Peel the transparent protective films off both sides of the color insert. c.
- Page 6 For further information, please visit our website at www.fantasea.com/FantaseaEyes i. When mounting any of these lens accessories on the WP-DC38 Housing, which lacks a plastic loop on the bottom left side of the housing, please follow the steps below: i.
- Page 7 Image #17 Image #16 Image #19 Image #18 Image #21 Image #20 Canon S90 & S95 Lens Accessories Instruction Manual 2011017...
-
Page 8: Care And Maintenance
Installing Color Correction Inserts inside the EyeDaptor S90/S95-F67 or BigEye Lens S90/S95 a. Color correction inserts included with the RedEye/PinkEye Filter S90/S95 can be installed inside the EyeDaptor S90/S95-F67 or BigEye Lens S90/S95 for the purpose of producing vivid and colorful images or videos while making use of macro and wide angle accessory lenses. -
Page 9: Fantasea Product Consumer Limited Warranty
ONE (1) YEAR, (two years, where required by law as determined by the origin of the authorized dealer). This warranty is effective from the date of retail purchase from Fantasea or an authorized Fantasea dealer, by the original end-user purchaser (“Warranty Period”). This warranty does not cover any commercial use of the product.
