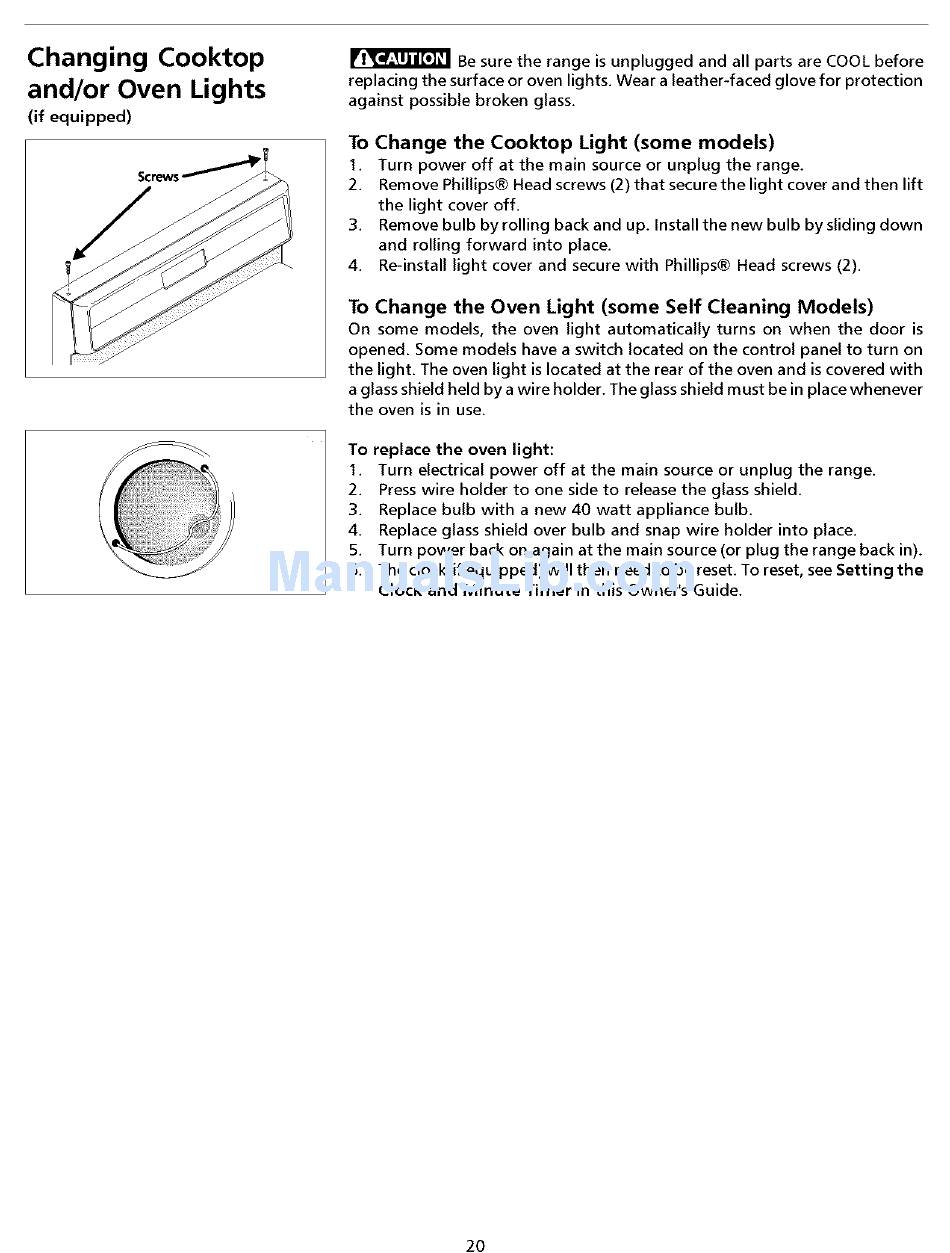

Changing Cooktop
and/or Oven Lights
(if equipped)
Be sure the range is unplugged
and all parts are COOL before
replacing the surface or oven lights. Wear a leather-faced
glove for protection
against possible broken glass.
To Change
the Cooktop
Light (some models)
1.
Turn power off at the main source or unplug the range.
2.
Remove Phillips® Head screws (2) that secure the light cover and then lift
the light cover off.
3.
Remove bulb by rolling back and up. Install the new bulb by sliding down
and rolling forward
into place.
4.
Re-install light cover and secure with Phillips® Head screws (2).
To Change
the
Oven
Light
(some
Self
Cleaning
Models)
On some models, the oven light automatically
turns on when the door is
opened. Some models have a switch located on the control panel to turn on
the light. The oven light is located at the rear of the oven and is covered with
a glass shield held by a wire holder. The glass shield must be in place whenever
the oven is in use.
To replace the oven light:
1.
Turn electrical power off at the main source or unplug the range.
2.
Press wire holder to one side to release the glass shield.
3.
Replace bulb with a new 40 watt appliance bulb.
4.
Replace glass shield over bulb and snap wire holder into place.
5.
Turn power back on again at the main source (or plug the range back in).
6.
The clock(if equipped) will then need to be reset. To reset, see Setting the
Clock and Minute
Timer in this Owner's Guide.
20
