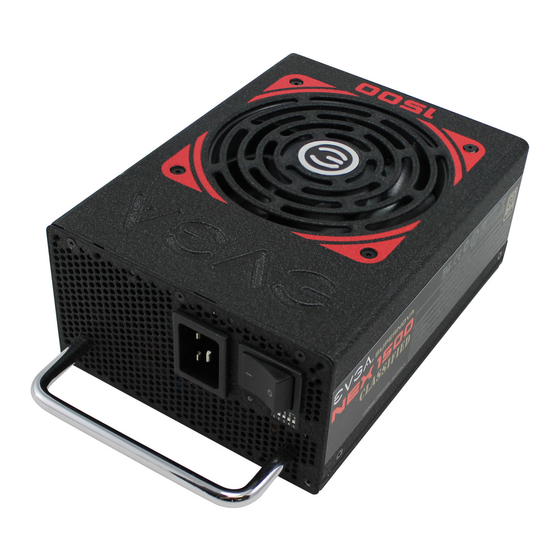

Summary of Contents for EVGA NEX-1500 Classified
-
Page 2: Table Of Contents
1500W Power Supply User Manual Table of contents Introduction....................3 Safety Information..................3 Features......................4 Installation.....................4 Advanced Features..................6 Cable Configuration..................7 Specification....................8 DIP Switches....................9... -
Page 3: Introduction
WARNING: This unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will void the warranty. EVGA will not be responsible for any result of improper use, use for which the product was not intended, or use inconsistent with the warranty terms (available for review at www.evga.com/support/warranty/... -
Page 4: Features
EVGA SUPERNOVA The NEX-1500 CLASSIFIED is compatible with the unique and exclusive EVGA SuperNOVA software that lets you monitor and control your power supply from your desktop. Monitor and adjust voltage, change fan speed, and even switch between single and multiple rails! - Page 5 5. Connect the SATA cables to your power supply and drives (hard drives, solid state drives, optical drives). 6. Connect the peripheral “molex” connectors to the power supply and your fans and other devices. 7. Connect the provided EVGA USB cable to your power supply and your motherboard’s USB header.
-
Page 6: Advanced Features
– DIP switch #2. Note: EVGA “OC Mode” will only work with 230VAC input. If user activates OC Mode on 115VAC input the OC Mode will be disabled and the Over Current and Over Power protections will remain set at 1500W. -
Page 7: Cable Configuration
1500W Power Supply User Manual Cable Configuration Cables (distance to first Modular Connector Cable Color +12V Rail connector) 1x ATX 24/20 pin (750mm) Black +12V1 1x EPS12V 8 pin + PCIe 6 CPU0 +12V2 / +12V3 pin (750mm) Black 1x EPS12V 8 pin + PCIe 6 CPU1 +12V5 / +12V6 pin x2 (750mm) -
Page 8: Specification
1500W Power Supply User Manual Specifications Label ATX Power supply +50°C ambient @ full load EVGA 80Plus 120-PG-1500 +40°C ambient @ 110% load GOLD 100-240 VAC 47-63 Hz, IEC 60320 C-20 input connector AC Input DC Output +3.3V +12V1 +12V2... -
Page 9: Dip Switches
1500W Power Supply User Manual DIP Switches Switch Position Function ON Function OFF Turn PSU on w/o motherboard Enable OC mode (1650W) Disable OC mode Enable +12V Single Rail operation Enable +12V Multi Rail operation Force Fan 100% Enable fan PWM control Enable User DIP Switches Disable User DIP Switches DIP Switch #5 must be turned on for other Dip Switches to operate. - Page 10 E006-00-000016...
