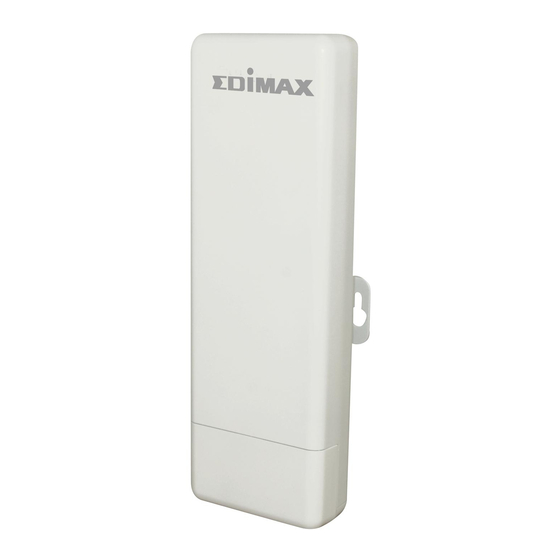

Edimax EW-7303APn v2 Quick Installation Manual
Wlan broadband router
Hide thumbs
Also See for EW-7303APn v2:
- Quick installation manual (71 pages) ,
- Specifications (2 pages) ,
- Manual (10 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Edimax EW-7303APn v2
Summary of Contents for Edimax EW-7303APn v2
- Page 1 EW-7303APn v2 Quick Installation Guide 11-2011 / v1.0...
- Page 2 COPYRIGHT Copyright Edimax Technology Co., Ltd. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission from Edimax Technology Co.,...
-
Page 3: Package Content
Support Dynamic DNS Support NTP *Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors. Product specifications and design are subject to change without notice. Copyright © 2012 Edimax Technology Co. Ltd. All rights reserved. -
Page 4: Front Panel Description
Front panel description LED Indicator State Description The WLAN Broadband Router is powered ON. 1. PWR LED The WLAN Broadband Router is powered Off. Wireless Radio ON. 2. WLAN LED Wireless Radio Off. Flashing Data is transmitting or receiving on the wireless. Port linked. -
Page 5: Rear Panel Description
Rear panel description Interfaces Description For external antenna. You can use the SMA connector to connect with SMA connector 2.4GHz external antenna. The RJ-45 sockets allow LAN connection through Category 5 cables. Secondary(Middle) Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. -
Page 6: Installation
Installation Notes: The product shot is for reference only please refer to physical product. 1.LED Panel 2. Waterproof Sliding Door 3. Pass trough Ethernet cable from this cable 4. Push this button to remove upper housing... - Page 7 Wall Mount 6. Pole Mount Secondary port with POE 8. Main port 9. SMA connector for external antenna...
-
Page 8: Hardware Installation Steps
Hardware installation steps Step2: Pass through Ethernet cable from the hole; insert the cable to Secondary port. Note: RJ-45 8P8C Ethernet cable is required. Step3: Install the upper housing and make sure the housing is well installed. -
Page 9: Software Installation
Software Installation Step4: Install POE Injector DC: Insert adapter POE: This hole is linked to Secondary port of the Outdoor Router with RJ-45. LAN: This hole is linked to LAN side PC/Hub or Router/ADSL modem device with RJ-45... - Page 10 Step5: Complete the hardware installation as diagram at below Notes: Use Reset button on POE injector. Push continually the reset button of POE injector about 5 ~ 10 seconds to reset the configuration parameters to factory defaults. There is no software driver or utility installation needed, but only the configuration setting.
-
Page 11: Software Configuration
Software configuration There are web based management and configuration functions allowing you to have the jobs done easily. The Outdoor Router is delivered with the following factory default parameters on the Ethernet LAN interfaces. Default IP Address: 192.168.2.1 Default IP subnet mask: 255.255.255.0 WEB login User Name: admin WEB login Password: 1234... -
Page 12: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 13: Eu Declaration Of Conformity
EU Declaration of Conformity English: This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC, 2009/125/EC. French: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive 1999/5/CE, 2009/125/CE Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanovení mi Czechian: směrnic 1999/5/ES, 2009/125/ES. -
Page 14: Declaration Of Conformity
Declaration of Conformity We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the equipment described below complies with the requirements of the European R&TTE directive 1999/5/EC. Equipment: N150 Outdoor Wireless Access Point/Range Extender with Built-in 12dBi Antenna Model No.:... - Page 15 Notice According to GNU General Public License Version 2 This product includes software that is subject to the GNU General Public License version 2. The program is free software and distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source code.
- Page 16 You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. 2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions: a) You must cause the modified files to carry prominent notices stating that you changed the files and the date of any...
- Page 17 7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
