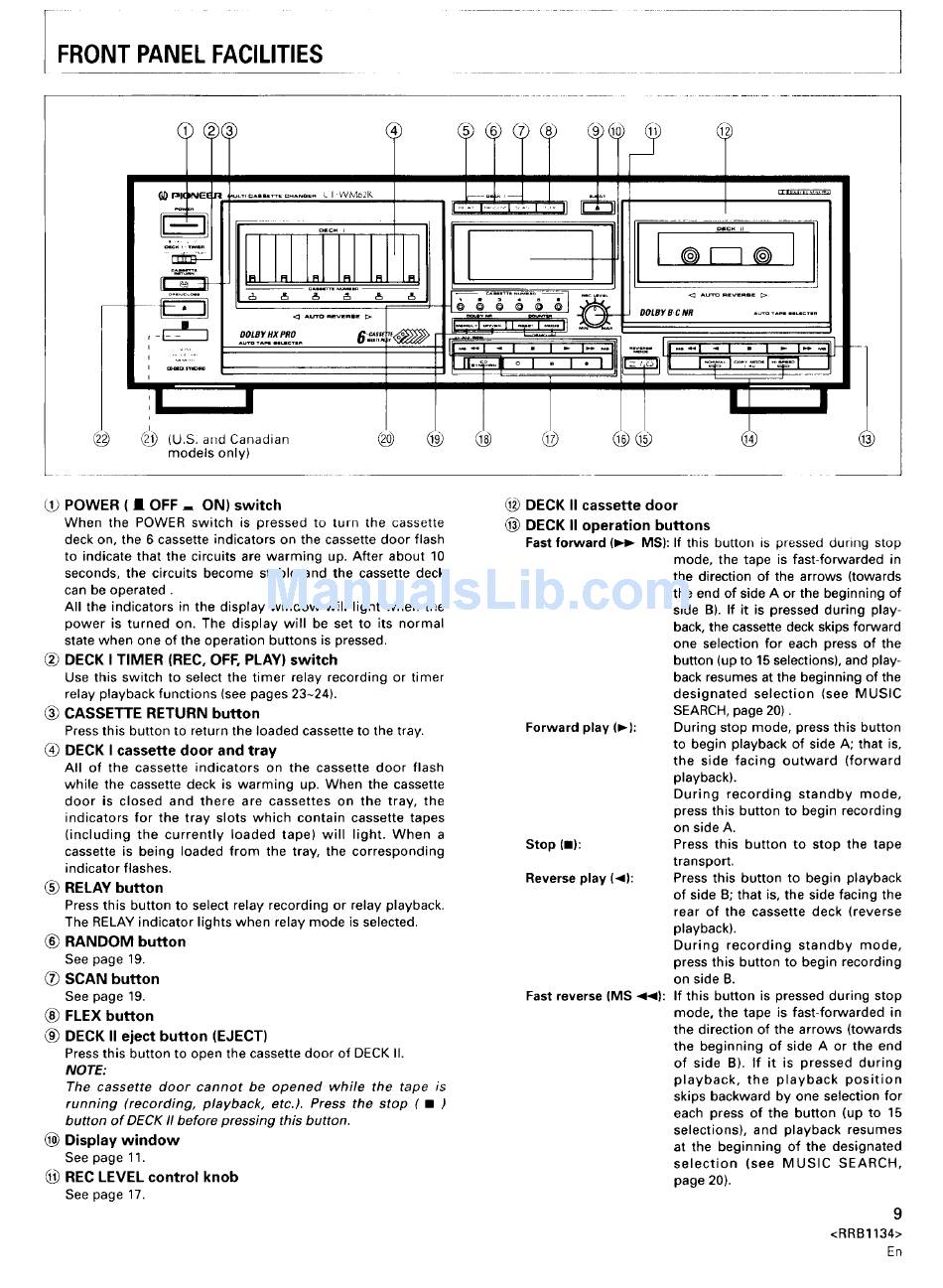

I FRONT PANEL FACILITIES
2_ _21_(U.S. and Canadian 2_
models only)
[ @
®
I
@ @ @ @
POWER ( • OFF -- ON) switch
When the POWER switch is pressed to turn the cassette
deck on, the 6 cassette indicators on the cassette door flash
to indicate that the circuits are warming up. After about 10
seconds, the circuits become stable and the cassette deck
can be operated.
All the indicators in the display window will light when the
power is turned on. The display will be set to its normal
state when one of the operation buttons is pressed.
DECK I TIMER (REC, OFF, PLAY) switch
Use this switch to select the timer relay recording or timer
relay playback functions (see pages 23~24).
_) CASSETTE RETURN button
Press this button to return the loaded cassette to the tray.
4_ DECK I cassette door and tray
All of the cassette indicators on the cassette door flash
while the cassette deck is warming up. When the cassette
door is closed and there are cassettes on the tray, the
indicators for the tray slots which contain cassette tapes
(including the currently loaded tape) will light. When a
cassette is being loaded from the tray, the corresponding
indicator flashes.
(_) RELAY button
Press this button to select relay recording or relay playback.
The RELAY indicator lights when relay mode is selected.
(_ RANDOM button
See page 19.
_) SCAN button
See page 19.
® FLEX button
L_ DECK II eject button (EJECT)
Press this button to open the cassette door of DECK I1.
NOTE:
The cassette door cannot be opened while the tape is
running (recording, playback, etc.). Press the stop ( • )
button of DECK II before pressing this button.
1_ Display window
See page 11.
@ REC LEVEL control knob
See page 17.
1@ DECK II cassette door
@ DECK II operation buttons
Fast forward (1_ MS): If this button is pressed during stop
Forward play (1_):
Stop (m):
Reverse play (_1):
Fast reverse (MS .ql_l):
mode, the tape is fast-forwarded in
the direction of the arrows (towards
the end of side A or the beginning of
side B). If it is pressed during play-
back, the cassette deck skips forward
one selection for each press of the
button (up to 15 selections), and play-
back resumes at the beginning of the
designated selection (see MUSIC
SEARCH, page 20).
During stop mode, press this button
to begin playback of side A; that is,
the side facing outward (forward
playback).
During recording standby mode,
press this button to begin recording
on side A.
Press this button to stop the tape
transport.
Press this button to begin playback
of side B; that is, the side facing the
rear of the cassette deck (reverse
playback).
During recording standby mode,
press this button to begin recording
on side B.
If this button is pressed during stop
mode, the tape is fast-forwarded in
the direction of the arrows (towards
the beginning of side A or the end
of side B). If it is pressed during
playback, the playback position
skips backward by one selection for
each press of the button (up to 15
selections), and playback resumes
at the beginning of the designated
selection (see MUSIC SEARCH,
page 20).
9
<RRB1134>
En
