Technical Overview
Dell™ Inspiron™ 535s/537s/545s/546s Service Manual
Inside View of Your Computer
System Board Components
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

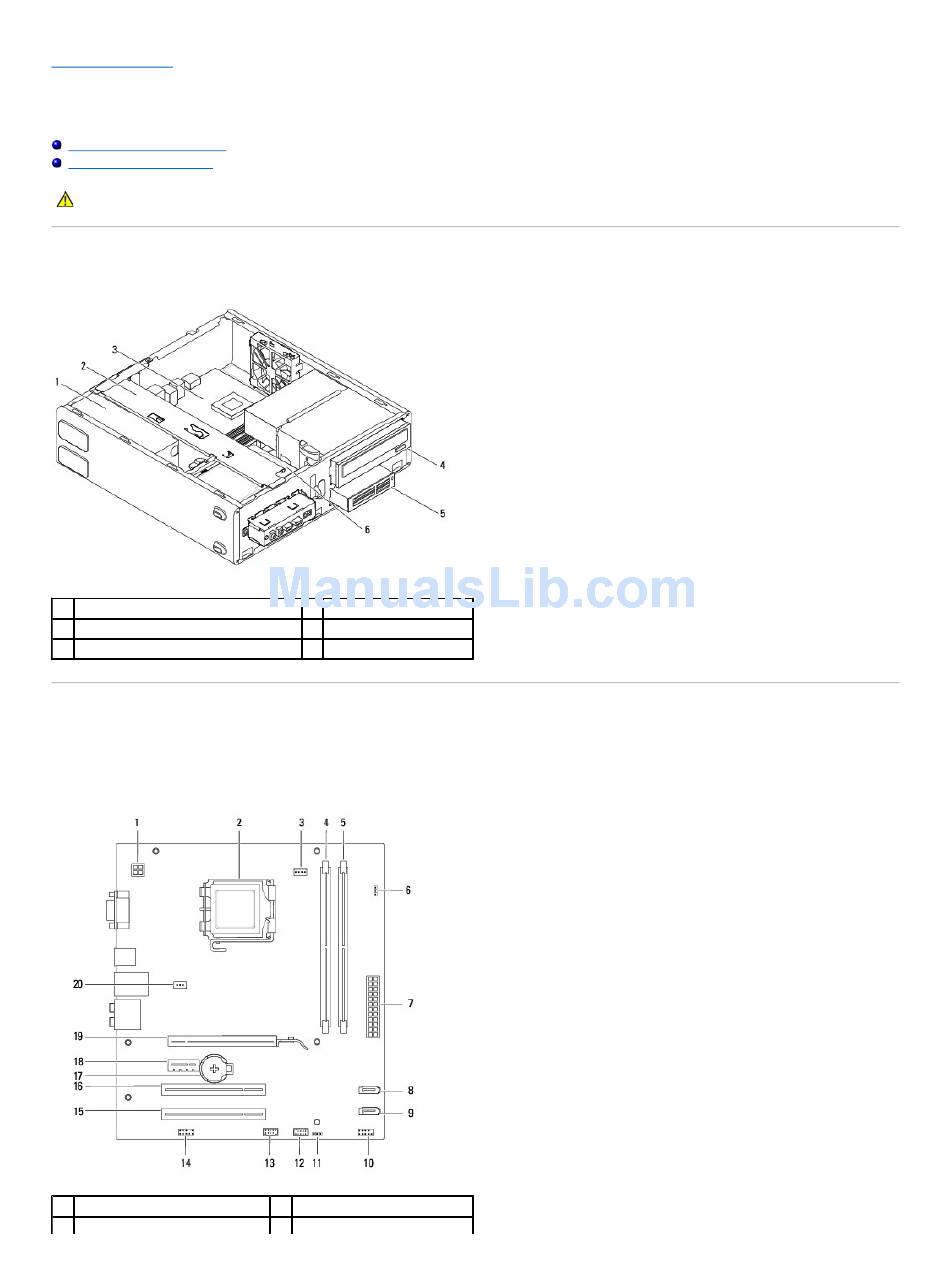

Inside View of Your Computer
1
power supply
3
system board
5
media card reader (optional)
System Board Components
Inspiron 535s/537s
1
12 V power connector (ATX12V1)
3
processor fan connector
2
support bracket
4
optical drive
6
primary hard drive
2
processor socket
4
memory module connector
