Clearing Cmos Settings - Dell Inspiron 535S Service Manual

Inspiron 546s

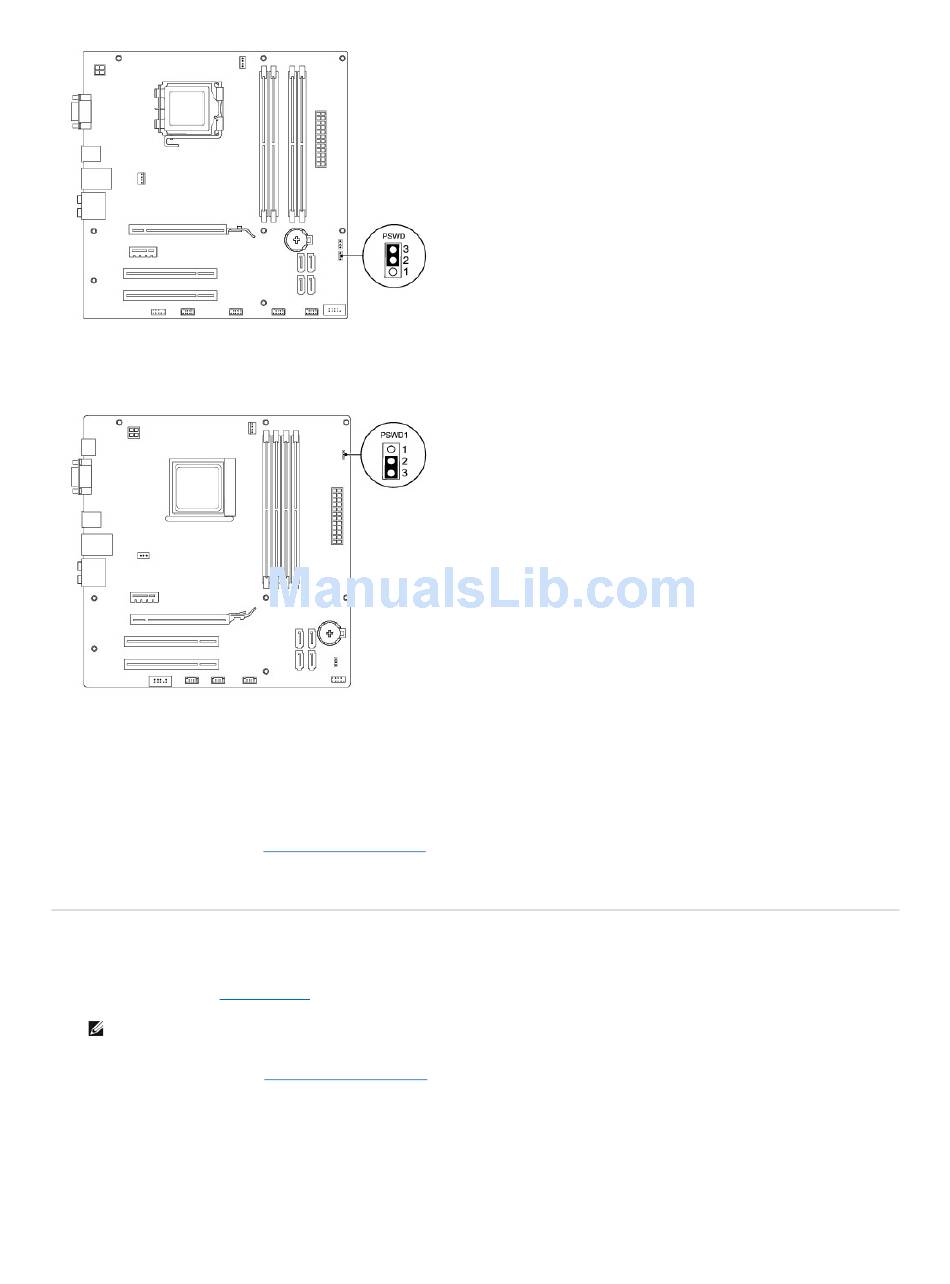

4. Remove the 2-pin jumper plug from pins 2 and 3 and fix it on pins 1 and 2.
5. Turn on the computer, wait for approximately five seconds, and then turn off the computer. If required, press and hold the power button to turn off the
computer.
6. Remove the 2-pin jumper plug from pins 1 and 2 and replace it on pins 2 and 3 to enable the password feature.
7. Replace the computer cover (see
8. Connect your computer and devices to electrical outlets, and turn them on.
Clearing CMOS Settings
1. Follow the procedures in Before You
NOTE: The computer must be disconnected from the electrical outlet to clear the CMOS setting.
2. Remove the computer cover (see
3. Reset the current CMOS settings:
a. Locate the 3-pin CMOS reset jumper on the system board.
b. Remove the jumper plug from the CMOS reset jumper pins 2 and 3.
c. Place the jumper plug on the CMOS reset jumper pins 1 and 2 and wait approximately five seconds.
d. Remove the jumper plug and replace it on the CMOS reset jumper pins 2 and 3.
Replacing the Computer Cover).
Begin.
Removing the Computer Cover).
