Removing The Chassis Fan - Dell Inspiron 535S Service Manual

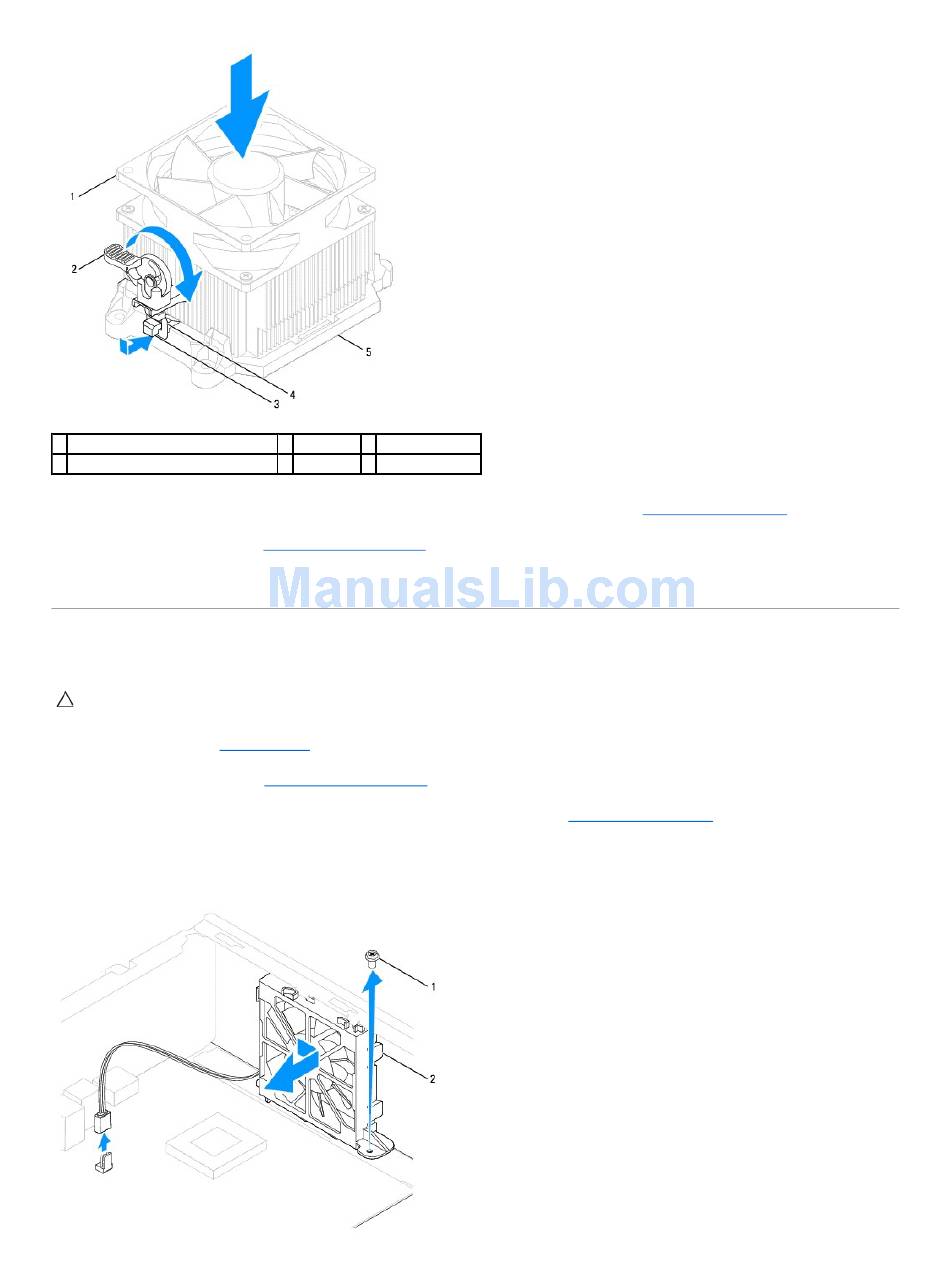

1 processor fan and heat sink assembly 2 clamp lever 3 bracket projection
4 clamp grip
4. Connect the processor fan and heat sink assembly cable to the fan connector on the system board (see
5. Replace the computer cover (see
6. Connect your computer and devices to an electrical outlet, and turn them on.
Removing the Chassis Fan
CAUTION: Do not touch the fan blades when you are removing the chassis fan. This could damage the fan.
1. Follow the procedures in Before You
2. Remove the computer cover (see
3. Disconnect the chassis fan cable from the chassis fan connector on the system board (see
4. Remove the screw securing the chassis fan.
5. Slide the chassis fan towards the front of the computer and lift it up.
5 bracket
Replacing the Computer Cover).
Begin.
Removing the Computer Cover).
System Board Components).
System Board Components).
