Replacing a Media Card Reader
1. Follow the procedures in Before You
2. Remove the computer cover (see
3. Remove the front bezel (see

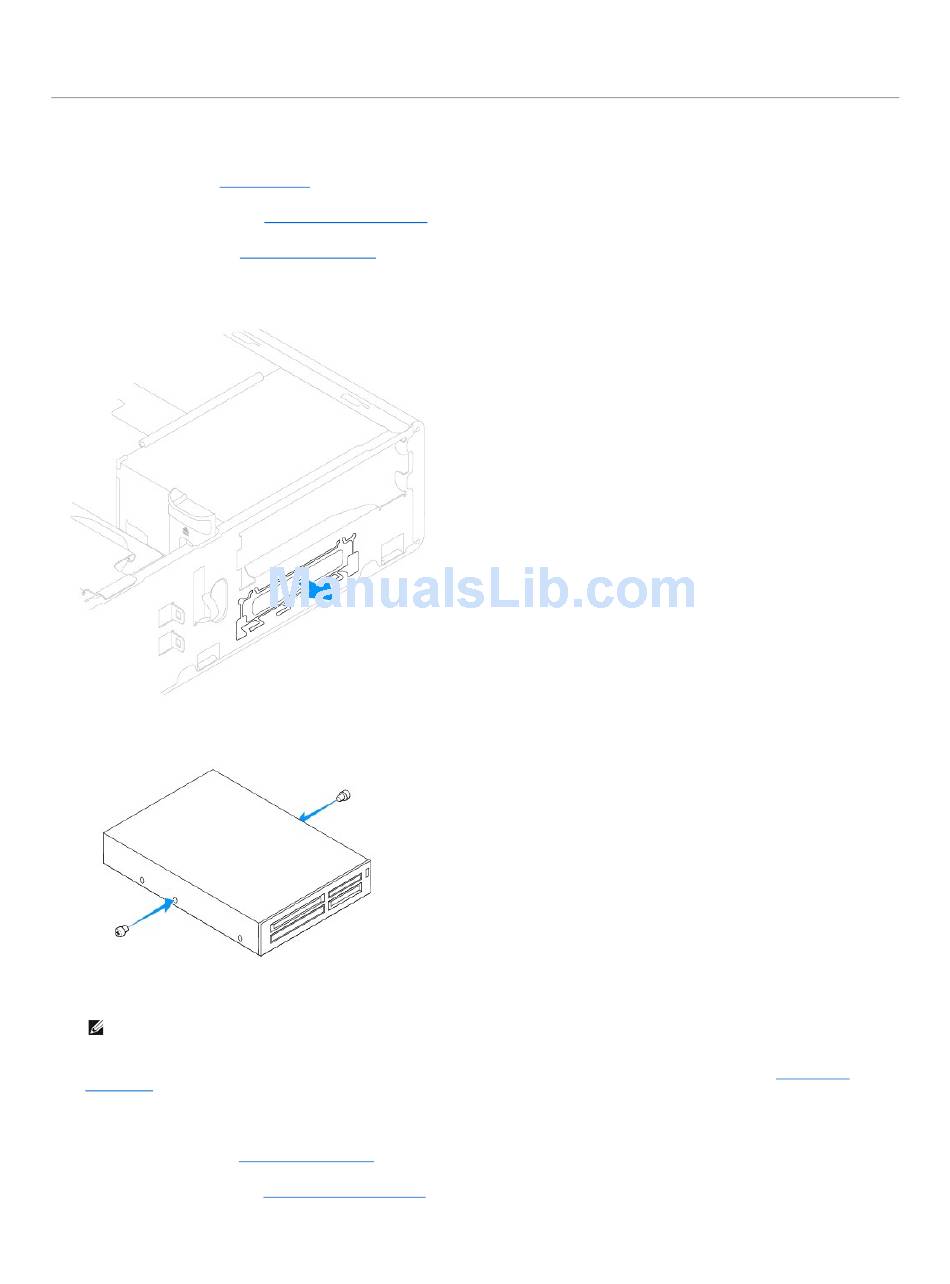

4. If this is a new media card reader installation, remove the break-away metal plate. Align the tip of a Phillips screwdriver with the slot on the break-away
metal plate and rotate the screwdriver outwards to break and remove the metal plate.
5. If not present, attach the two shoulder screws to the media card reader.
6. Gently slide the media card reader into the FlexBay slot, until the media card reader snaps in place.
NOTE: Ensure that the media card reader is installed before the FlexBay USB cable is connected.
7. Connect the FlexBay USB cable to the back of the media card reader and to the internal USB connector on the system board (see
Components).
8. Connect the power cable to the back of the media card reader.
9. Replace the front bezel (see
10. Replace the computer cover (see
11. Connect your computer and devices to electrical outlets, and then turn them on.
