Fuel Filter - Kenmore 583.35600 Owner's Manual

30,000 btu portable heater
Table of Contents

Advertisement

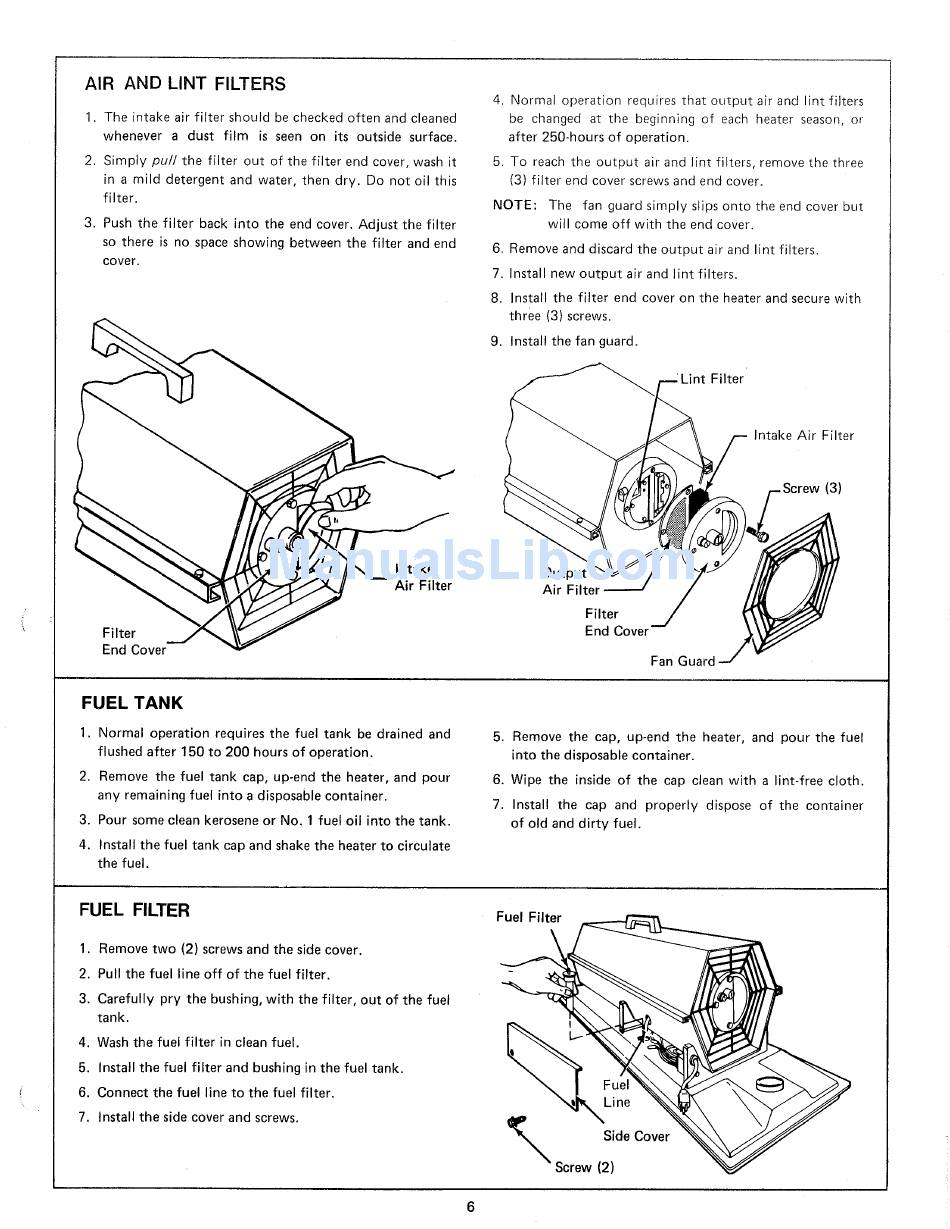

AIR
AND LINT
FILTERS
1. The intake
air filter
should
be checked
often
and cleaned
whenever
a dust
film
is seen on
its outside
surface.
2. Simply
puff the filter
out of the filter
end cover, wash it
in a mild
detergent
and water,
then
dry.
Do not oil this
filter.
3. Push the filter
back into
the end cover.
Adjust
the filter
so there
is no space showing
between
the filter
and end
cover,
4. Normal
operation
requires
that output
air and lint filters
be changed
at the
beginning
of each heater
season,
or
after
250-hours
of operation.
5. To reach the output
air and lint filters,
remove
the three
(3) filter
end cover screws and end cover.
NOTE:
The
fan guard simply
slips onto
the end cover but
will come off with
the end cover.
6. Remove
and discard
the output
air and lint filters.
7. Install
new output
air and lint filters.
8. Install
the filter
end cover on the heater and secure with
three
(3) screws.
9. Install
the fan guard.
Filter
Intake
Air
Filter
(3)
Filter
End Cover
Intake
Air Filter
Output
Air Filter
Filter
End Cover
Fan Guard
FUEL
TANK
1. Normal
operation
requires
the fuel tank
be drained
and
flushed
after
150 to 200 hours
of operation.
2. Remove
the fuel
tank
cap, up-end
the heater,
and pour
any remaining
fuel
into a disposable
container.
3. Pour some clean kerosene
or No. 1 fuel oil into the tank.
4. Install
the fuel tank cap and shake the heater to circulate
the fuel.
5. Remove
the cap, up-end
the heater,
and pour
the fuel
into the disposable
container.
6. Wipe
the inside
of the cap clean with
a lint-free
cloth.
7. Install
the
cap
and properly
dispose
of the container
of old and dirty
fuel.
FUEL FILTER
1. Remove two (2) screws and the side cover.
2. Pull the fuel line off of the fuel filter.
3. Carefully
pry the bushing, with the filter, out of the fuel
tank.
4. Wash the fuel filter in clean fuel.
5. Install the fuel filter and bushing in the fuel tank.
6. Connect the fuel line to the fuel filter.
7. Install the side cover and screws.
Fuel
Filter
[2
\ rew:eO°ver
6
