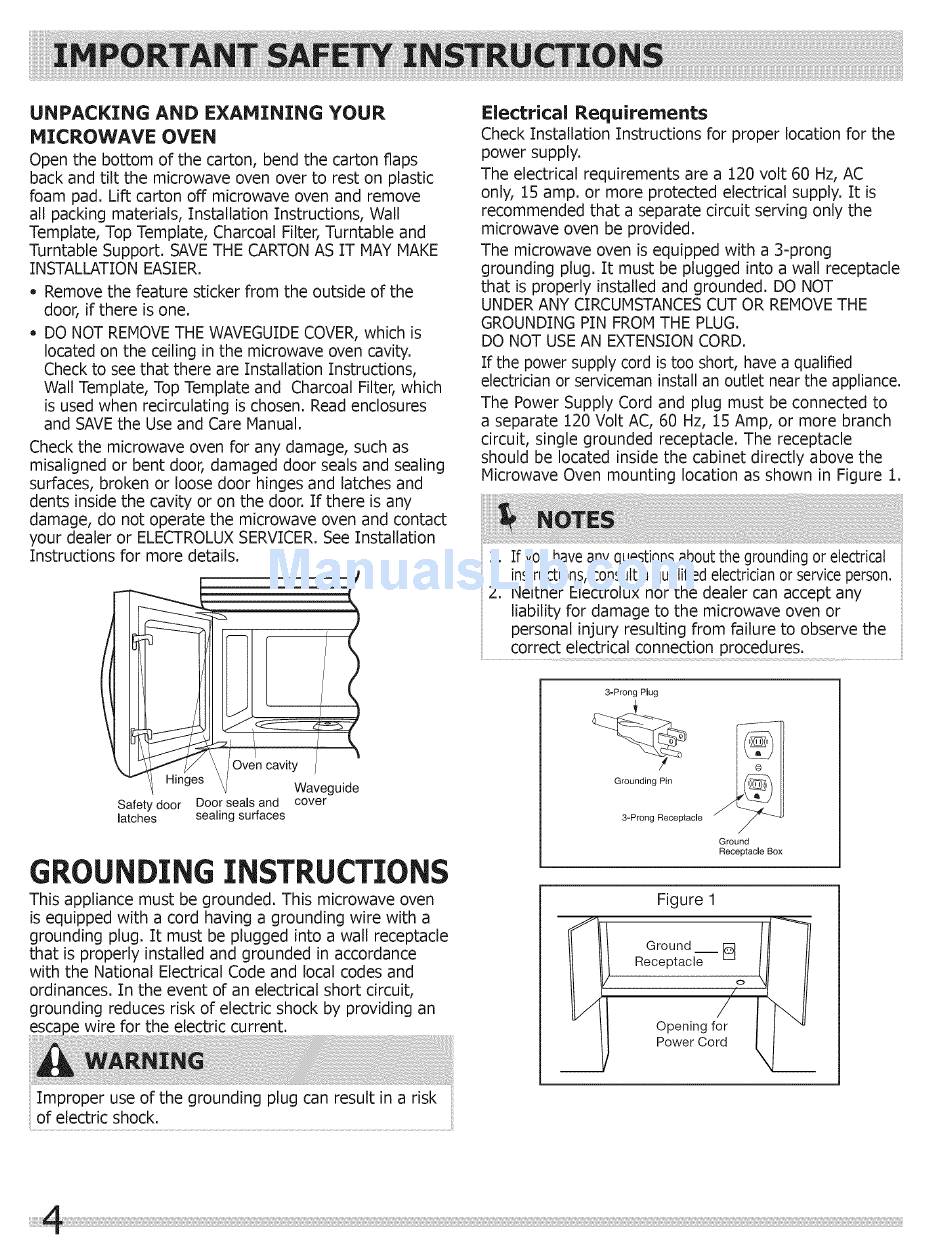

UNPACKING AND EXAHINING YOUR
MICROWAVE OVEN
Open the bottom of the carton, bend the carton flaps
back and tilt the microwave oven over to rest on plastic
foam pad. Lift carton off microwave oven and remove
all packing materials, Installation Instructions, Wall
Template, Top Template, Charcoal Filter, Turntable and
Turntable Support. SAVE THE CARTON AS IT NAY MAKE
INSTALLATION EASIER.
- Remove the feature sticker from the outside of the
door, if there is one.
DO NOT REMOVE THE WAVEGUIDE COVER, which is
located on the ceiling in the microwave oven cavity.
Check to see that there are Installation Instructions,
Wall Template, Top Template and Charcoal Filter, which
is used when recirculating is chosen. Read enclosures
and SAVE the Use and Care Manual.
Check the microwave oven for any damage, such as
misaligned or bent door, damaged door seals and sealing
surfaces, broken or loose door hinges and latches and
dents inside the cavity or on the door. If there is any
damage, do not operate the microwave oven and contact
your dealer or ELECTROLUX SERVICER. See Installation
Instructions for more details.
i
Safet door Door seams and cover
latches sealing surfaces
GROUNDING INSTRUCTIONS
Thisappliance must be grounded.Thismicrowave oven
is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded in accordance
with the National Electrical Code and local codes and
ordinances. In the event of an electrical short circuit,
grounding reduces risk of electric shock by providing an
esca wire for the electric current.
,' ,mpro0or u so o f tho 0round,n0 p,u0 can rosu ,t,n o r, sk
of electric shock.
Electrical Requirements
Check Installation Instructions for proper location for the
power supply.
The electrical requirements are a 120 volt 60 Hz, AC
only, 15 amp. or more protected electrical supply. It is
recommended that a separate circuit serving only the
microwave oven be provided.
The microwave oven is equipped with a 3-prong
grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded. DO NOT
UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE
GROUNDING PIN FROM THE PLUG.
DO NOT USE AN EXTENSION CORD.
If the power supply cord is too short, have a qualified
electrician or serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to
a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch
circuit, single grounded receptacle. The receptacle
should be located inside the cabinet directly above the
Microwave Oven mounting location as shown in Figure 1.
1. If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or service person.
2. Neither Electrolux nor the dealer can accept any
liability for damage to the microwave oven or
personal injury resulting from failure to observe the
correct electrical connection procedures.
3=Prong Plug
Grounding Pin
3-Prong Receptacle
/
Ground
Receptacle Box
f
Figure 1
Ground __ r61
Receptacle
7
/
Opening for
Power Cord
