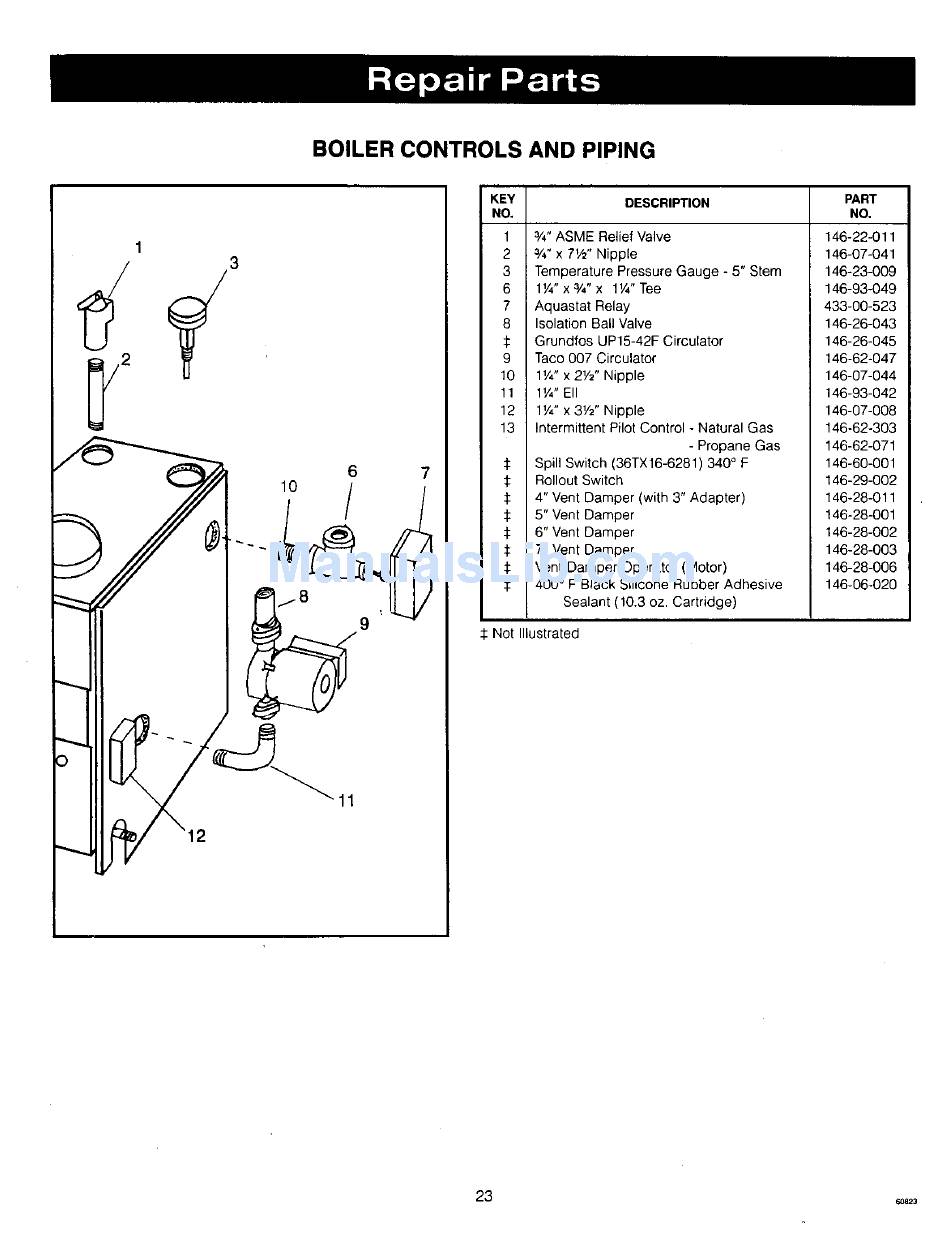

BOILER CONTROLS
AND PIPING
1
3
41,-,2
6
7
11
KEY
DESCRIPTION
PART
NO.
NO.
1
2
3
6
7
8
1:
9
10
11
12
13
%" ASME Relief Valve
%" x 71/2"Nipple
Temperature Pressure Gauge - 5" Stem
1Y4"x %" x 1W' Tee
Aquastat Relay
Isolation Bail Valve
Grundfos UP15-42F Circulator
"race 007 Circulator
1W' x 2W' Nipple
11/4"Ell
1Y4"x 3V2" Nipple
Intermittent Pilot Control - Natural Gas
- Propane Gas
Spill Switch (36TX16-6281) 340" F
Rollout Switch
4" Vent Damper (with 3" Adapter)
5" Vent Damper
6" Vent Damper
7" Vent Damper
Vent .Damper Operator (Motor)
400 ° F Black Silicone Rubber Adhesive
Sealant (10.3 oz. Cartridge)
146-22-011
146-07-041
146-23-009
146-93-049
433-00-523
146-26-043
146-26-045
146-62-047
146-07-044
146-93-042
146-07-008
146-62-303
146-62-071
146-60-001
146-29-002
146-28-011
146-28-001
146-28-002
146-28-003
146-28-006
146-06-020
Not Illustrated
23
r,_,_3
