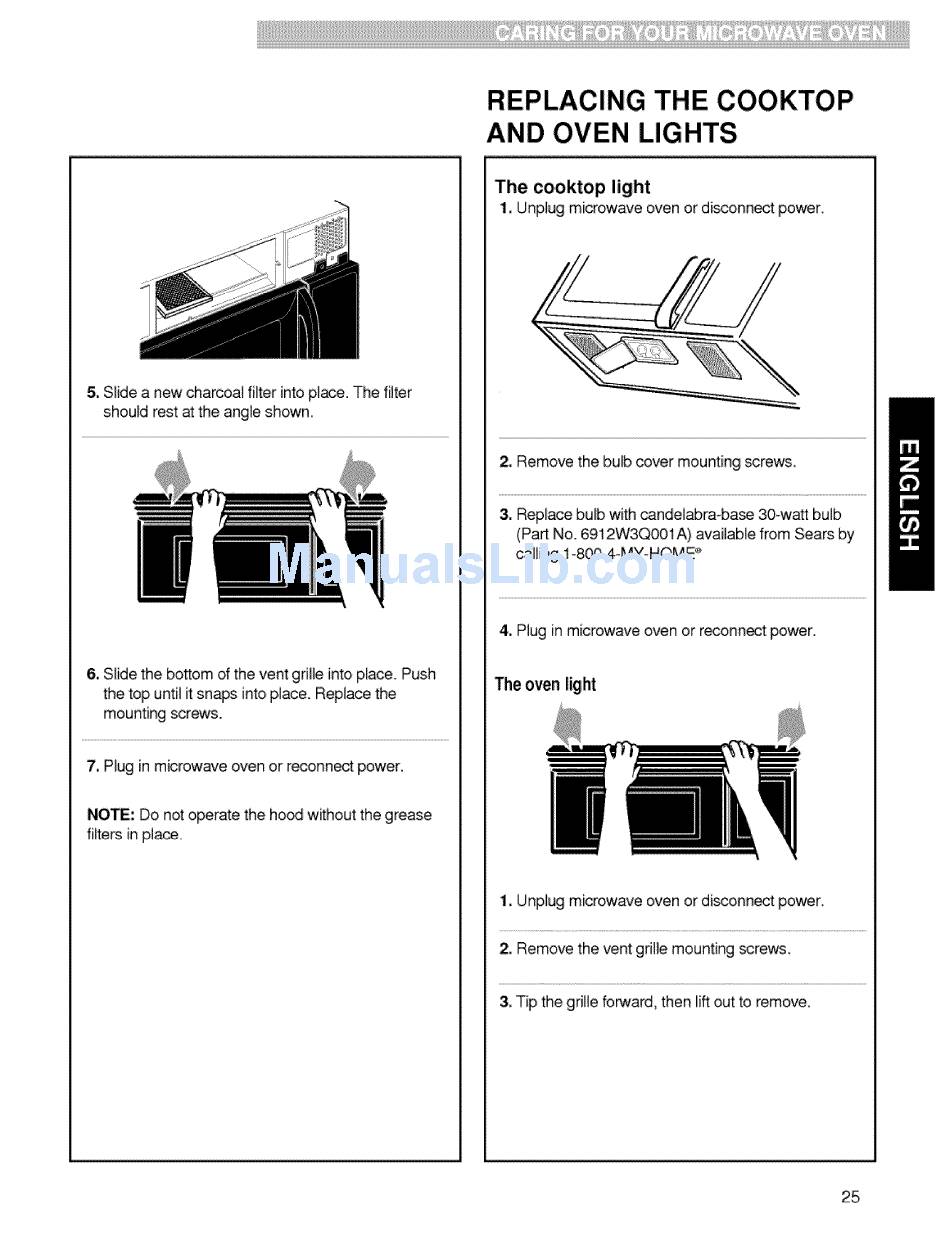

Replacing The Cooktop And Oven Lights - Kenmore 721.80492 Use & Care Manual

REPLACING THE CO'OKTOP
AND OVEN LIGHTS
5. Slide a new charcoal filter into place. The filter
should rest at the angle shown,
6., Slide the bottom of the vent gdlle into place. Push
the top until it snaps into place. Replaoe the
mounting screws.
7, Plug in microwave oven or reconnect power,
NOTE: Do not operate the ho_ w_hout the grease
filters in pia_.
The cooktop light
1_ Unplug microwave oven or di_onnect powers,
2, Remove the bulb cover mounting screws,
3. Replace bulb with candelabra-base 30-watt bulb
(Part No. 6912W3QO01 A) available from Sears by
calling 1-800-4-MY-HOME "
4. Plug in microwave oven or reconnect power.
The oven light
1. Unplug microwave oven or disconnect power.
2. Remove the vent grille mounting screws.
3, Tip the grille forward, then lift out to remove,
25
