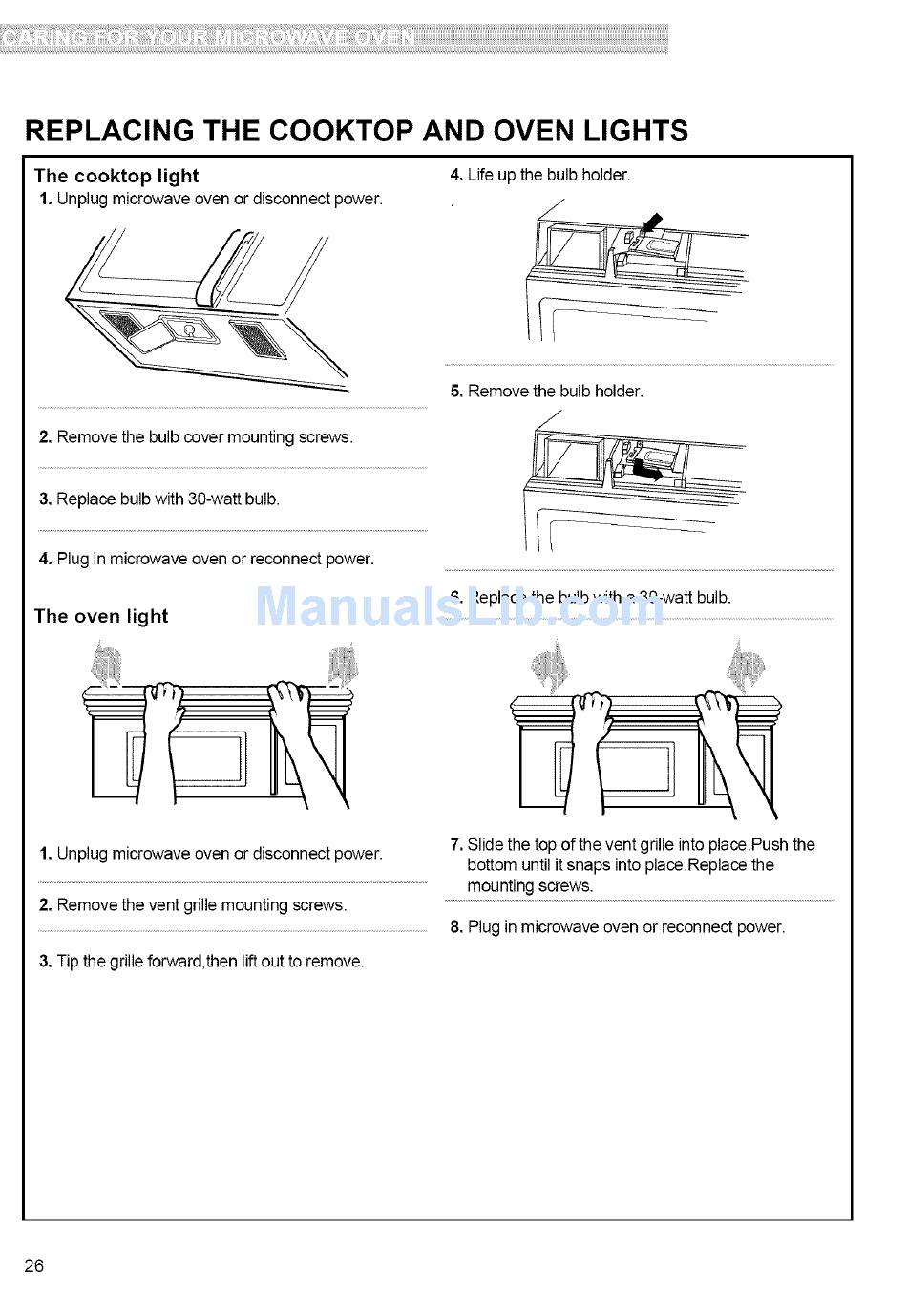

REPLACING THE COOKTOP AND OVEN LIGHTS
The cooktop light 4. Life up the bulb holder.
1. Unplug microwave oven or disconnect power. /
2. Remove the bulb cover mounting screws.
3. Replace bulb with 30-watt bulb.
4. Plug in microwave oven or reconnect power.
The oven light
1. Unplug microwave oven or disconnect power.
2. Remove the vent grille mounting screws.
3. Tip the grille forward,then lift out to remove.
5. Remove the bulb holder.
7
6. Replace the bulb with a 30-watt bulb.
7. Slide the top of the vent grille into place.Push the
bottom until it snaps into place.Replace the
mounting screws.
8. Plug in microwave oven or reconnect power.
