Operating
(continued)
Instructions

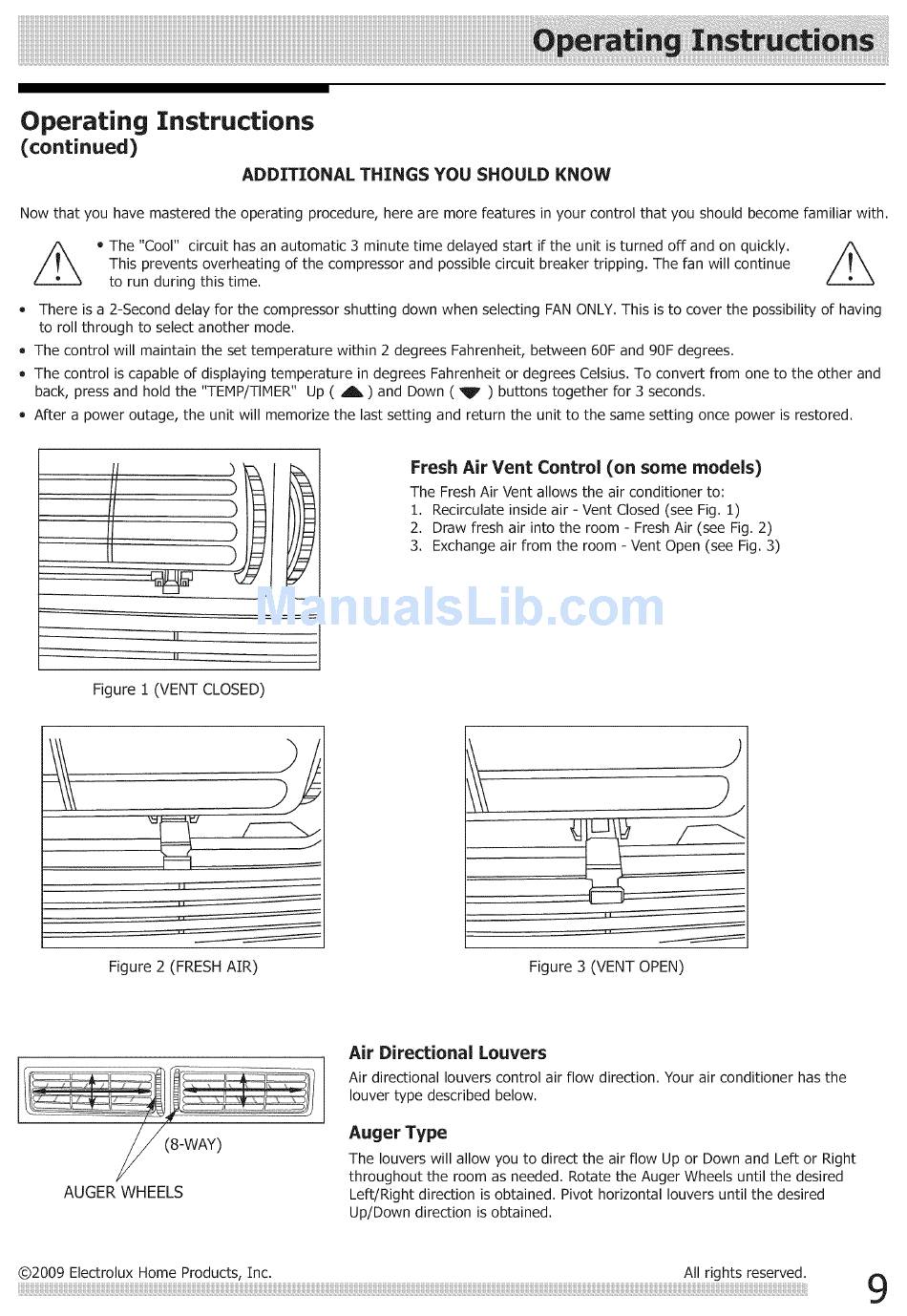

ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.
• The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.
This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue
\
to run during this time.
• There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility of having
to roll through to select another mode.
• The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.
• The control is capable of displaying temperature in degrees Fahrenheit or degrees Celsius. To convert from one to the other and
back, press and hold the "TEMP/TIMER" Up ( A ) and Down ( _p' ) buttons together for 3 seconds.
• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.
J
:3:
:[E
Figure 1 (VENT CLOSED)
Fresh Air Vent Control (on some models)
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air - Vent Closed (see Fig. 1)
2. Draw fresh air into the room - Fresh Air (see Fig. 2)
3. Exchange air from the room - Vent Open (see Fig. 3)
Figure 2 (FRESH AIR) Figure 3 (VENT OPEN)
!_(8-WAY)
AUGER WHEELS
Air Directional Louvers
Air directional louvers control air flow direction. Your air conditioner has the
louver type described below.
Auger Type
The louvers will allow you to direct the air flow Up or Down and Left or Right
throughout the room as needed. Rotate the Auger Wheels until the desired
Left/Right direction is obtained. Pivot horizontal louvers until the desired
Up/Down direction is obtained.
