Combined Model Name
QC7I Triple - MC
QC7I Triple - MC
2
QC7I Triple - MH
QC7I Triple - MH
2
QC7I Triple - TO
QC7I Triple - CV
QC7I Triple - XCV
QC7I Triple - XC
QC7I Triple - XC
2
QC7I Triple - 7CB5
QC7I Triple - 7CB5-K
QC7I Triple - 7CB5-S
Combined Model Name
QC7I Quad - MC
QC7I Quad - MC
2
QC7I Quad - MH
QC7I Quad - MH
2
QC7I Quad - TO
QC7I Quad - CV
QC7I Quad - XCV
QC7I Quad - XC
QC7I Quad - XC
2
QC7I Quad - 7CB5
QC7I Quad - 7CB5-K
QC7I Quad - 7CB5-S
* For individual cartridge specifications, refer to cartridge literature.
Temperature: 35-100°F (2-38°C)
Pressure:
10 - 125 psi (0.7 - 8.6 bar), non-shock
For cold water use only.

INSTALLATION

1. Use the predrilled mounting holes in the manifold bracket as guides. Mark and drill anchor holes.
Mount securely. See Figures 5-8.
2. Shut off power to machine.
3. Connect outlet port of QC7I unit to equipment served. Always use a NSF approved pipe dope
or Teflon tape at all connections. Use a backup wrench on all fittings while connecting to avoid
excessive stress on the system components.
Note: If the optional E-Series Filter is used, install a manual shut-off valve leading to the system
for servicing.
4. Connect minimum 3/8" water line to inlet side of QC7I singles. Use minimum 1/2" line for other
systems.
5. The cross fitting has a flushing valve installed on the bottom. Connect tubing to flushing valve and
run to drain.
Note: Some municipal plumbing codes and good sanitary practices require an air gap at the drain
termination point.
6. Install the cartridge(s) into the QC7I head (s) following directions on the cartridge label or as shown
in the Cartridge Change illustrations.
7. Turn on water to filter and check for leaks.
8. Flush the cartridge by running water through at full force for five minutes. This will set the filtering
media and purge air and fines, insuring maximum filter life.
9. After flushing, close the flushing valve, turn on power to equipment and plug the LPA (if so
equipped) into the electrical outlet. See illustrations.
Replacement
Cartridge
Flow Rate
MC
5.0 gpm (18.9 lpm)
MC
5.0 gpm (18.9 lpm)
2
MH
5.0 gpm (18.9 lpm)
MH
5.0 gpm (18.9 lpm)
2
TO
4.5 gpm (56.7 lpm)
CV
5.0 gpm (18.9 lpm)
XCV
5.0 gpm (18.9 lpm)
XC
5.0 gpm (18.9 lpm)
XC
2
5.0 gpm (18.9 lpm)
7CB5
7.5 gpm (28.2 lpm)
7CB5-K
7.5 gpm (28.2 lpm)
7CB5-S
7.5 gpm (28.2 lpm)
Replacement
Cartridge
Flow Rate
MC
6.6 gpm (25 lpm)
MC
6.6 gpm (25 lpm)
2
MH
6.6 gpm (25 lpm)
MH
6.6 gpm (25 lpm)
2
TO
6.0 gpm (22.4 lpm)
CV
6.6 gpm (25 lpm)
XCV
6.6 gpm (25 lpm)
XC
6.6 gpm (25 lpm)
XC
6.6 gpm (25 lpm)
2
7CB5
10.0 gpm (37.6 lpm)
7CB5-K
10.0 gpm (37.6 lpm)
7CB5-S
10.0 gpm (37.6 lpm)
Capacity
27,000 gal (102,000 L)
27,000 gal (102,000 L)
27,000 gal (102,000 L)
27,000 gal (102,000 L)
90,000 gal (340,650 L)
22,500 gal (85,170 L)
30,000 gal (113,550 L)
36,000 gal (136,260 L)
36,000 gal (136,260 L)
30,000 gal (113,550 L)
30,000 gal (113,550 L)
30,000 gal (113,550 L)
Capacity
36,000 gal (136,000 L)
36,000 gal (136,000 L)
36,000 gal (136,000 L)
36,000 gal (136,000 L)
120,000 gal (454,200 L)
30,000 gal (113,550 L)
40,000 gal (151,400 L)
48,000 gal (181,680 L)
48,000 gal (181,680 L)
40,000 gal (151,400 L)
40,000 gal (151,400 L)
40,000 gal (151,400 L)
Check for compliance with state and local laws
and regulations. Do not use with water that is
microbiologically unsafe or of unknown quality without
adequate disinfection before or after the system. Systems
certified for cyst reduction may be used on disinfected
waters that may contain filterable cysts.
5.60"
60
EVERPURE
PSI
PSI
INLET
OUTLET
3/8" FNPT
3/8" FNPT
EVERPURE
QC7I
WATER FILTER
3072-61
Made in U.S.A.
27.50"

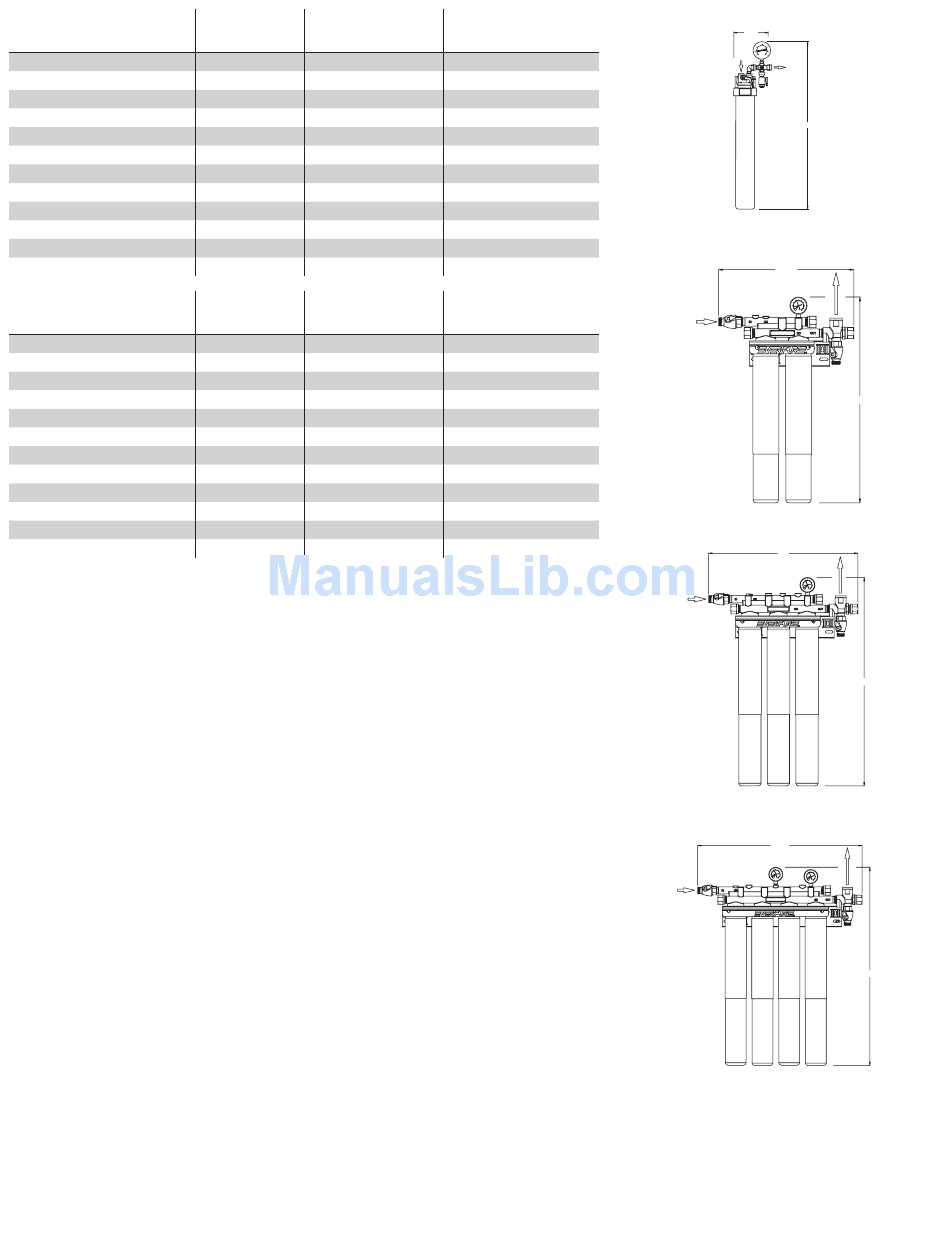

Figure 5 – Single System
16.60"
OUTLET
3/4" FNPT
INLET
3/4" MNPT
Figure 6 – Twin System
21"
OUTLET
3/4" FNPT
INLET
3/4" MNPT
Figure 7 – Triple System
24.60"
OUTLET
3/4" FNPT
INLET
3/4" MNPT
Figure 8 – Quad System
25.26"
29.26"
29.69"
