Air Flow Parts - KitchenAid KSRS25FGBL04 Parts List

Illus. Part
No. No. DESCRIPTION
1 2182120 Fan Scroll
2 2155590 Retainer,
Fan Motor
3 2161231 Air Scoop
4 2209606 Gasket
5 2203593 Air Duct Freezer
7 2149299 Fan Motor
8 2169142 Fan Blade
9 2209607 Gasket
10 2176759 Fan Grommet (2)
11 2182146 Duct, Icemaker
12 2206504 Harness, Fan
Evaporator, And
Heater, Bi−Metal
13 2155789 Gasket Cover
14 2172840 Wire Tie
16 2203876 Gasket
17 2203841 Cover, Evaporator
18 489355 Screw
21 489478 Screw
22 2203595 Support, R.S
23 2203596 Support, L.S
4398871

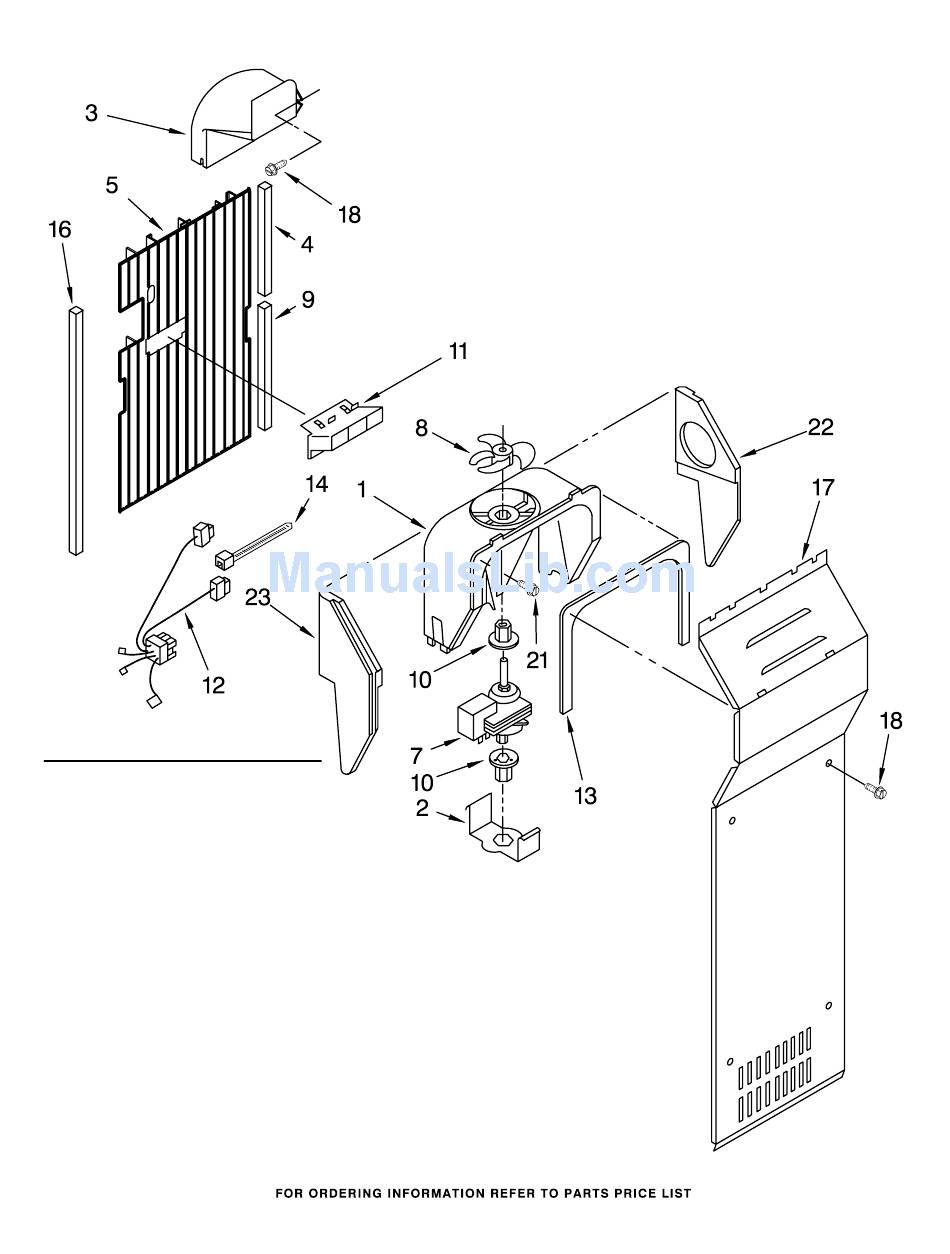

AIR FLOW PARTS

For Models: KSRS25FGWH04, KSRS25FGBL04, KSRS25FGBT04
(White) (Black) (Biscuit)
15
