Product Specifications - Craftsman 315.115160 Operator's Manual

5-1/2 in, 19.2 volt cordless laser trim saw
Hide thumbs

Advertisement

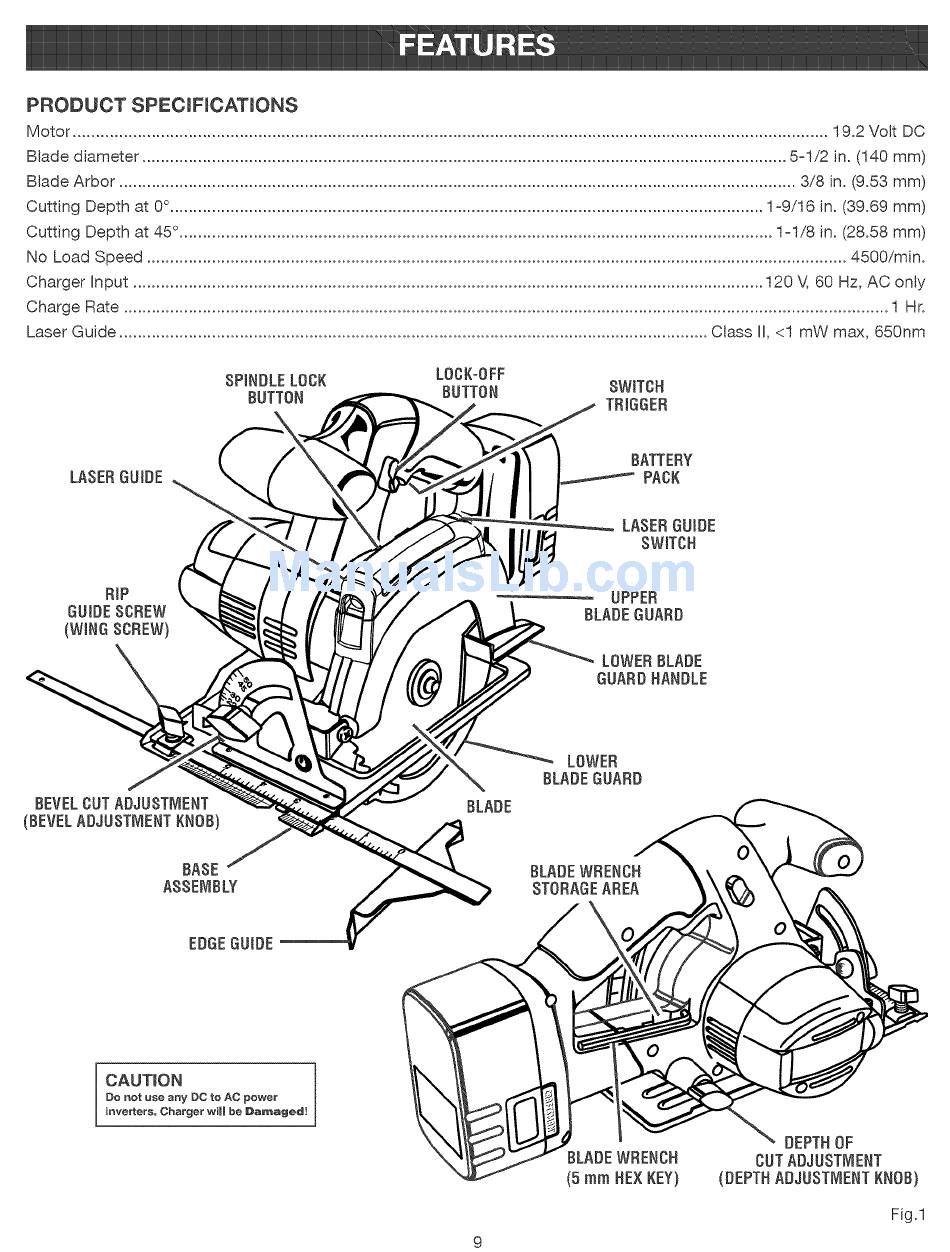

PRODUCT
SPECIFICATIONS
Motor ...................................................................................................................................................................
19.2 Volt DC
Blade diameter ...........................................................................................................................................
5-1,/2 in. (140 ram)
Blade Arbor ..................................................................................................................................................
3/8 in. (9.53 ram)
Cutting Depth at 0°................................................................................................................................
1-9/16 in. (39.69 ram)
Cutting Depth at 45 °................................................................................................................................
1=1/8 in. (28.58 ram)
No Load Speed .......................................................................................................................................................
4500/min.
Charger hput ........................................................................................................................................
120 V, 60 Hz, AC only
Charge Rate .....................................................................................................................................................................
1 Hr.
Laser Guide ...............................................................................................................................
Class E <1 mW max, 65Onto
SPINDLELOCK
LOCK-OFF
BUTTON
BUTTON
SWITCH
TRIGGER
BATTERY
LASER GUIDE
PACK
LASERGUIDE
SWITCH
RiP
UPPER
GUIDE SCREW
BLADE GUARD
(WING SCREW)
LOWER BLADE
GUARD HANDLE
BEVELCUTADJUSTMENT
(BEVELADJUSTMENTKNOB)
BASE
ASSEMBLY
LOWER
BLADE GUARD
EDGEGUIDE
I CAUTmON
i
Do not use any DC to AC power
iavettera, Charger wimlbe #a_aged!
BLADEWRENCH
(5 mm HEXKEY)
DEPTHOF
CUT ADJUSTMENT
(DEPTHADJUSTMENT KNOB)
Fig.1
