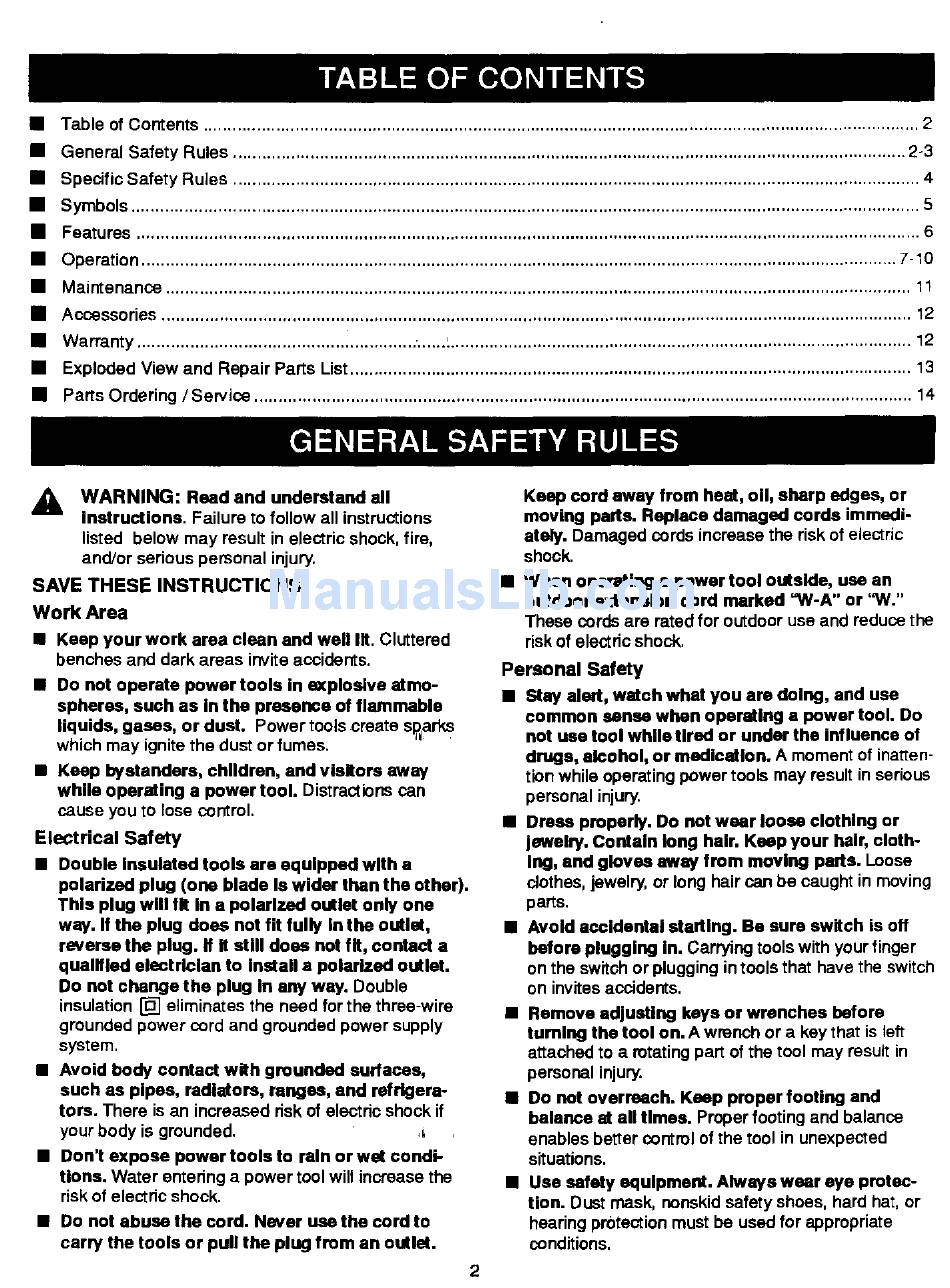

Craftsman 315.101130 Operator's Manual page 2

• Table of Contents ..................................................................................................................................................... 2
• General Safety Rules ............................................................................................................................................ 2-3
• Specific Safety Rules ............................................................................................................................................... 4
• Symbols .................................................................................................................................................................... 5
• Features ................................................................................................................................................................... 6
• Operation ............................................................................................................................................................. 7-10
• Maintenance ........................................................................................................................................................... 11
• Accessories ............................................................................................................................................................ 12
• Warranty .......................................................... ;...,.L ................................................................................................ 12
• Exploded View and Repair Parts List ..................................................................................................................... 13
• PartsOrdering/Service ......................................................................................................................................... 14
A
WARNING: Reed and understand all
Instructions. Failure to follow all instructions
listed below may result in electricshock, fire,
and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
• Keep yourwork area clccn and well lit. Cluttered
benches and dark areas inviteaccidents.
• Do not operate power tools in an(plosive atmo-
spheres, such as In the presence of flammable
liquids, gases, or dust. Power tools create s_arks
which may ignite the dust or fumes.
• Keep bystanders, children, and visitors away
white operating a power tool. Distractions can
cause you to lose control.
Electrical Safety
• Double Insulated tools are equipped with a
polarized plug (one blade Is wider than the other).
This plug will fit In a polerlzed outlet only one
way. If the plug does not fit fully in the outlet,
reverse the plug. If It STIll does not fit, contact a
qualified electrlolan to Install a polerlzed outlet.
Do not change the plug In any way. Double
insulation[] eliminates the need for the three-wire
groundedpower cord and groundedpower supply
system.
• Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges, and refrigera-
tors. There is an increased risk of electricshock if
your body is grounded. ,_
• Don't expose power tools to rain or wet condi-
tions. Water entenng a power tool will increasethe
riskof electricshock.
• Do not abuse the cord. Never use the cord to
carw the tools or pull the plug from an outlet.
Keep cord away from heat, o11,sharp edges, or
moving pads. Replace damaged cords immedi-
ately. Damaged cords increase the risk of electric
shock.
• When operating a power tool outside, use an
outdoor extension cord marked "W-A" or "W."
These cords are rated for outdoor use and reduce the
risk of electric shoci_
Personal Safety
• Stay alert, watch what you are doing, and use
common sense when operating a power tool. Do
not use tool white tired or under the influence of
drugs, alcohol, or mndicatlon. A momentof inatten-
tion while operatingpower tools may result in serious
personalinjury.
• Dress properly. Do not wear loose clothing or
JawstW. Contain long hair. Keep your hair, cloth-
Ing, and gloves away from moving pads. Loose
clothes, jewelry, or long hair can be caught in moving
parts.
• Avoid accidental starUng. Be sure switch is off
before plugging In. Carryingtools with yourfinger
on the switchor pluggingin tools that have the switch
on invitesaccidents.
• Remove adjusting keys or wrenches before
tumlng the tool on. A wrench or a key that is lef_
attached to a rotating part of the tool may result in
personal injury.
• Do not overreach. Keep proper footing and
balance at all times. Proper footingand balance
enables better controlof the tool in unexpected
situations.
• Use setstyequipment.Alwayswccr aye protec-
tion.
Dust mask, nonskidsafety shoes, hard hat, or
hearing protectionmust be used for appropriate
conditions.
