Top View; Chuck Removal - Craftsman 315.101130 Operator's Manual

1/2 in. electric drill variable speed / reversible double insulated
Table of Contents

Advertisement

TOPVIEW
LEVEL

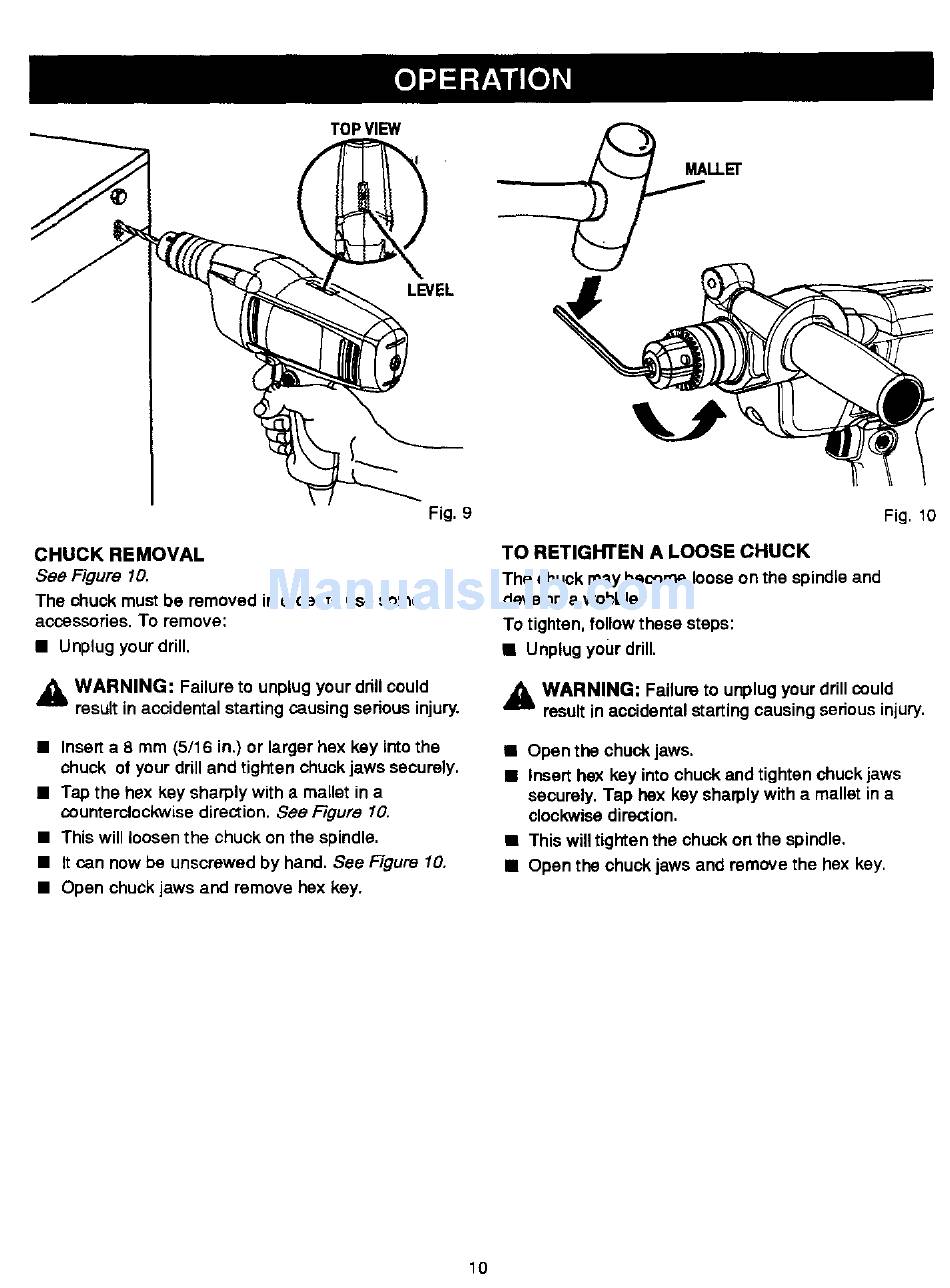

CHUCK REMOVAL
See Figure 10.
The chuck must be removed in order to use some
accessories. To remove:
Unplug yourdrill.
,_lb WARNING:
Failure to unplug your drillcould
resultin accidental starting causing serious injury,
Insert a 8 mm (5/16 in.) or larger hsx key into the
chuck of your drill and tighten chuck jaws securely.
Tap the hex key sharply with a mallet in a
counterclockwise direction.
See Figure 1G
This will loosen the chuck on the spindle,
It can now be unscrewed
by hand, See Figure 10.
Open chuck jaws and remove hex key.
Fig. 9
Fig, 10
TO RETIGHTEN
A LOOSE CHUCK
The chuck may become looseon the spindle and
develop a wobble.
To tighten, followthese steps:
Unplug your drill.
,_
WARNING: Failure to unplug your drill could
resultin accidental starting causing sedous injury.
Open the chuck jaws.
Insert hex key intochuck and tighten chuck jaws
securely. Tap hex key sharply with a mallet in a
clockwisedirection.
This will tighten the chuck on the spindle.
Open the chuck jaws and remOVethe hex key,
10
