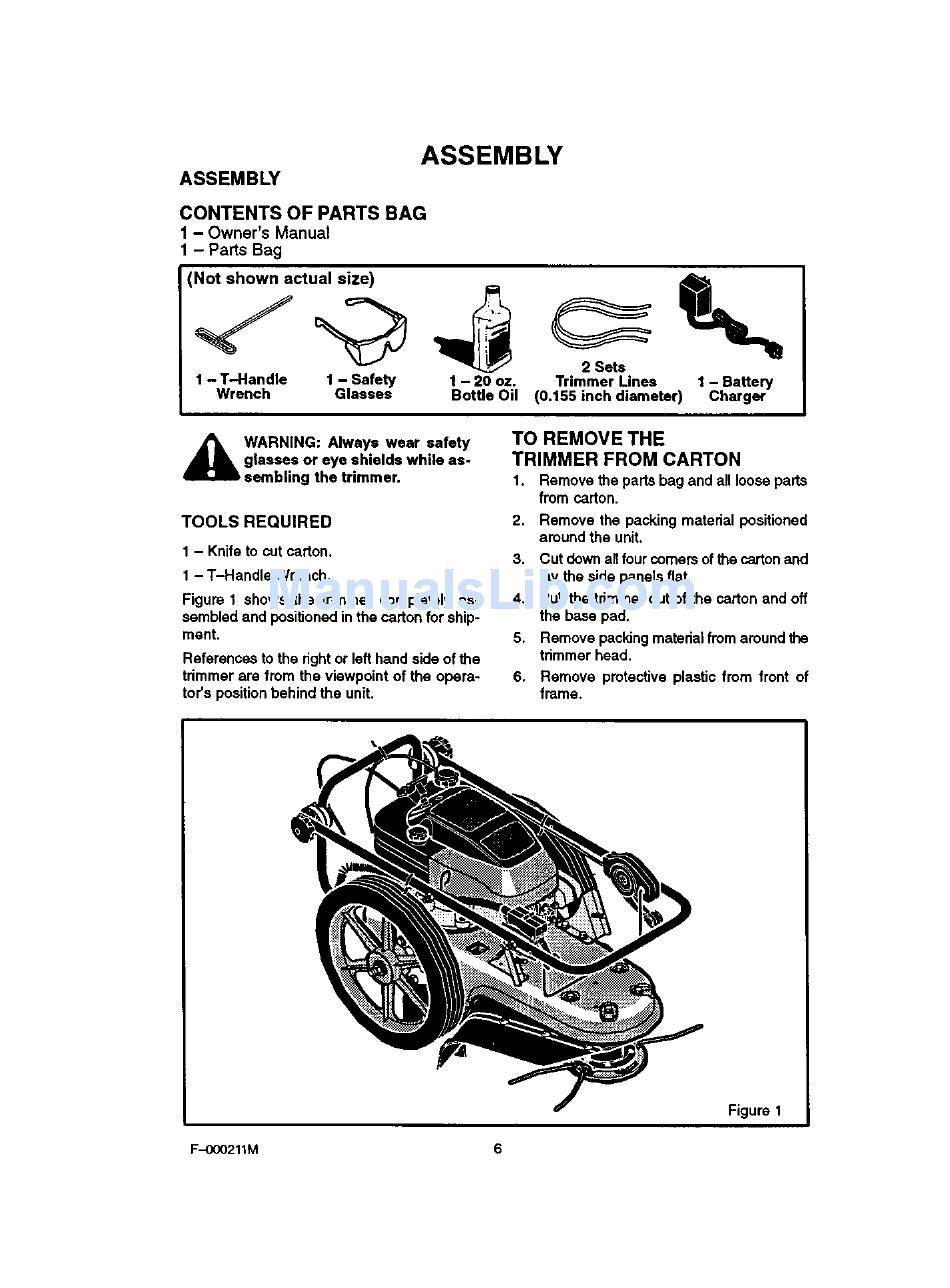

ASSEMBLY
ASSEMBLY
CONTENTS OF PARTS BAG
1 Owner'sManual
- Parts Bag
Not shown actual size)
1 - T--Handle 1 - Safety 1 - 20 oz.
Wrench Glasses Bottle Oil
2 Sets
Trimmer Lines 1 - Battery
(0.155 inch diameter) Charger
WARNING: Always wear safety
glasses or eye shields while as-
sembling the trimmer.
TOOLS REQUIRED
1 - Knife to cut carton.
1 - T-Handle Wrench.
Figure 1 shows the trimmer completely as-
sembled and positioned in the carton for ship*
ment.
References to the fight or left hand side of the
trimmer are from the viewpoint of the opera-
tor's position behind the unit.
TO REMOVE THE
TRIMMER FROM CARTON
1. Remove the parts bag and all loose parts
from carton.
2. Remove the packing material positioned
around the unit.
3. Cut down an four comers of the carton and
lay the side panels flat.
4. Pull the trimmer out of the carton and off
the base pad.
5. Remove packing material from around the
trimmer head.
6. Remove protective plastic from front of
frame.
Figure 1
F-OOO211M 6
