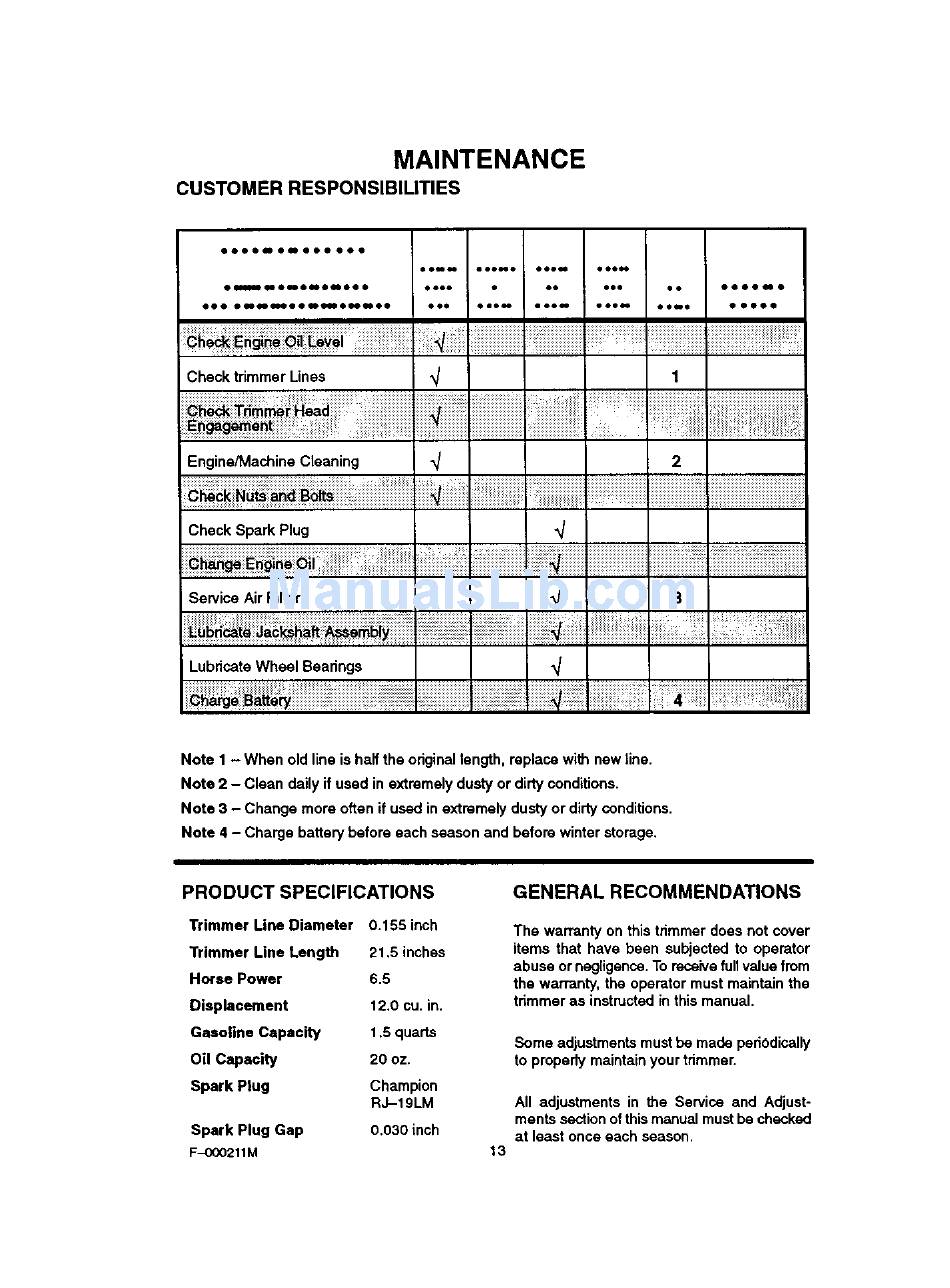

MAINTENANCE
CUSTOMER RESPONSIBILITIES
oooo_o_mooooeo
eom_ eooMo oooN oeeeo
OUmONO_O_mOO • eOOO eO eee
eee o qlll__ _ • • _ _ • Ill4' _ • • eee =oe_ eeew eee_
Check trimmer Lines
Engine/Machine Cleaning
eo oooo_o
ee_e ooooo
2
Check Spark Plug
,y
Service Air Filter
Lubricate Wheel Bearings _/
Note 1 - When old line is half the original length, replace with new line.
Note 2 - Clean daily if used in extremely dusty or dirty conditions.
Note 3 - Change more often if used in extremely dusty or dirty conditions.
Note 4 - Charge battery before each season and before winter storage.
PRODUCT SPECIFICATIONS
Trimmer Line Diameter 0.155 inch
Trimmer Line Length 21,5 inches
Horse Power 6.5
Displacement 12,0 cu. in.
Gasoline Capacity 1.5 quarts
Oil Capacity 20 oz.
Spark Plug Champion
RJ-19LM
Spark Plug Gap 0,030 inch
F_000211M
GENERAL RECOMMENDATIONS
The warranty on this trimmer does not cover
items that have been subjected to operator
abuse or negligence. To receive full value from
the warranty, the operator must maintain the
trimmer as instructed in this manual.
Some adjustments must be made periodically
to properly maintain your trimmer.
13
All adjustments in the Service and Adjust-
ments section of this manual must be checked
at least once each season.
