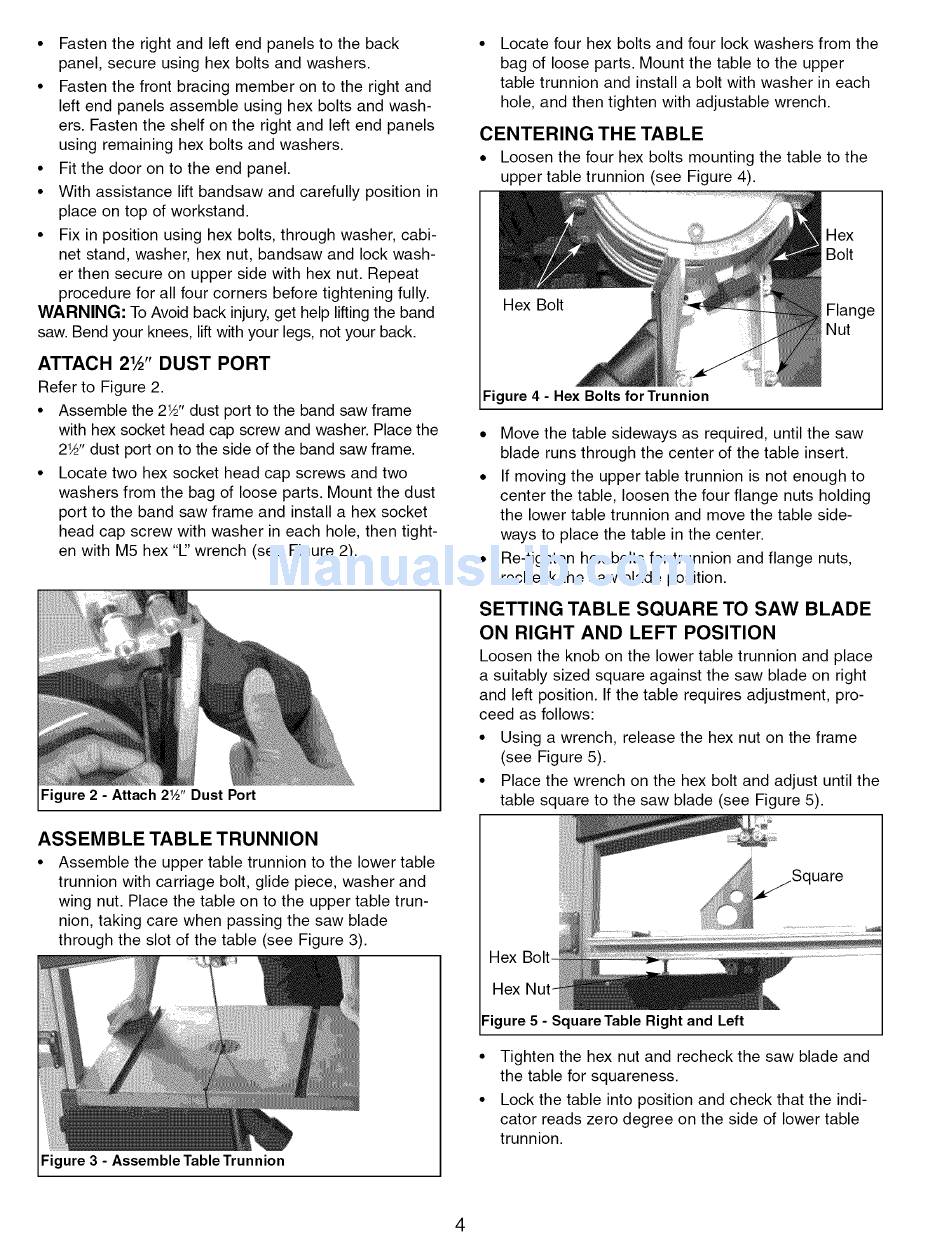

Fasten the right and left end panels to the back
panel, secure using hex bolts and washers.
•
Fasten the front bracing member on to the right and
left end panels assemble using hex bolts and wash-
ers. Fasten the shelf on the right and left end panels
using remaining hex bolts and washers.
•
Fit the door on to the end panel.
•
With assistance lift bandsaw and carefully position in
place on top of workstand.
•
Fix in position using hex bolts, through washer, cabi-
net stand, washer, hex nut, bandsaw and lock wash-
er then secure on upper side with hex nut. Repeat
procedure for all four corners before tightening fully.
WARNING:
To Avoid back injury, get help lifting the band
saw. Bend your knees, lift with your legs, not your back.
ATTACH 21/_ '' DUST PORT
Refer to Figure 2.
•
Assemble the 21_ '' dust port to the band saw frame
with hex socket head cap screw and washer. Place the
21/_ ' ' dust port on to the side of the band saw frame.
•
Locate two hex socket head cap screws and two
washers from the bag of loose parts. Mount the dust
port to the band saw frame and install a hex socket
head cap screw with washer in each hole, then tight-
en with M5 hex "1" wrench (see Figure 2).
Figure 2 - Attach 21,5 ', Dust Port
ASSEMBLE
TABLE TRUNNION
•
Assemble the upper table trunnion to the lower table
trunnion with carriage bolt, glide piece, washer and
wing nut. Place the table on to the upper table trun-
nion, taking care when passing the saw blade
through the slot of the table (see Figure 3).
Figure 3 - Assemble Table Trunnion
Locate four hex bolts and four lock washers from the
bag of loose parts. Mount the table to the upper
table trunnion and install a bolt with washer in each
hole, and then tighten with adjustable wrench.
CENTERING
THE TABLE
•
Loosen the four hex bolts mounting the table to the
upper table trunnion (see Figure 4).
Hex Bolt
Figure 4 - Hex Bolts for Trunnion
.
Move the table sideways as required, until the saw
blade runs through the center of the table insert.
.
If moving the upper table trunnion is not enough to
center the table, loosen the four flange nuts holding
the lower table trunnion and move the table side-
ways to place the table in the center.
.
Re-tighten hex bolts for trunnion and flange nuts,
recheck the saw blade position.
SETTING
TABLE SQUARE TO SAW BLADE
ON RIGHT AND LEFT POSITION
Loosen the knob on the lower table trunnion and place
a suitably sized square against the saw blade on right
and left position. If the table requires adjustment, pro-
ceed as follows:
•
Using a wrench, release the hex nut on the frame
(see Figure 5).
•
Place the wrench on the hex bolt and adjust until the
table square to the saw blade (see Figure 5).
aex
Hex
Figure 5 - Square Table Right and Left
•
Tighten the hex nut and recheck the saw blade and
the table for squareness.
•
Lock the table into position and check that the indi-
cator reads zero degree on the side of lower table
trunnion.
Page 4
