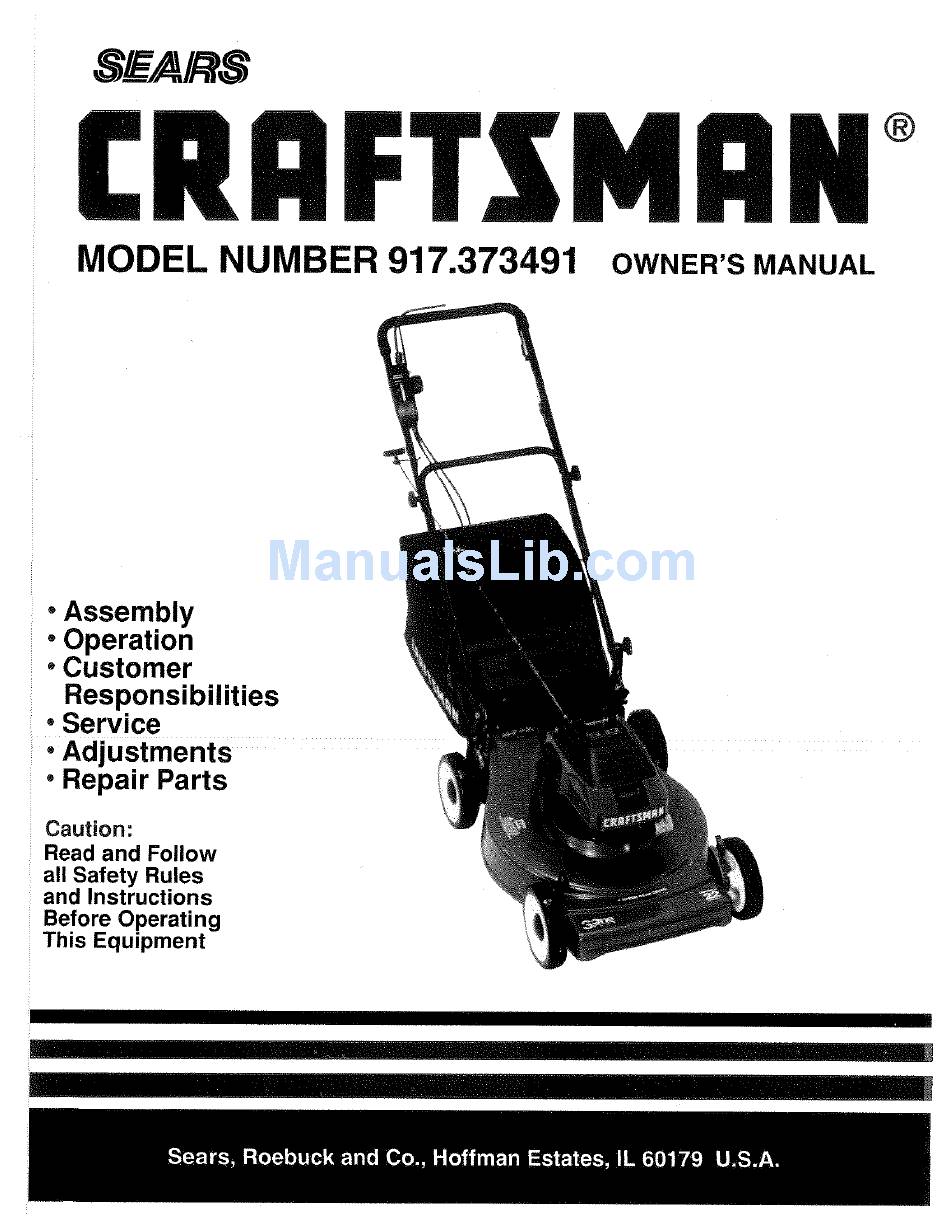

SEARS
CRRFTZMI:IN
MODEL NUMBER 917.373491
OWNER'S MANUAL
* Assembly
- Operation
" Customer
Responsibilities
, Service
" Adjustments
Repair Parts
Caution:
Read and Follow
all Safety Rules
and Instructions
Before Operating
This Equipment
J
[
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.373491 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftsman 917.373491

Summary of Contents for Craftsman 917.373491

  • Page 1 SEARS CRRFTZMI:IN MODEL NUMBER 917.373491 OWNER'S MANUAL * Assembly - Operation " Customer Responsibilities , Service " Adjustments Repair Parts Caution: Read and Follow all Safety Rules and Instructions Before Operating This Equipment...
  • Page 2 SAFETY RULES & PLUG TO PREVENT ACCIDENTAL STARTING WHEN SETTING UP, TRANSPORTING, ADJUSTING OR MAKING CAUTION: REPAIRS. ALWAYS DISCONNECT SPARK PLUG WIRE AND PLACE WIRE WHERE IT CANNOT CONTACT SPARK IMPORTANT SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY. YOUR UNIT IS EQUIPPED WITH SUCH CONTROLS.

  • Page 3: Safety Rules

    _cc0rding to the operating and maintenance instructions in the owneCs manual, Sears will repair free of charge any efect in material or workmanship. if this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
  • Page 4 TABLE OF CONTENTS SAFETY RULES ............ MAINTENANCE SCHEDULE ......PRODUCT SPECIFICATIONS ......SERVICE AND ADJUSTMENTS ......CUSTOMER RESPONSiBILiTIES ..... 3, 11-14 STORAGE ............WARRANTY ............TROUBLESHOOTING ......... LAWN MOWER ACCESSORIES ......REPAIR PARTS - LAWN MOWER ....20-24 ASSEMBLY ............REPAIR PARTS - ENGINE...
  • Page 5 LAWN MOWER ACCESSORIES These accessories were available when this lawn mower was produced. They are also available at most Sears retail outlets, catalog and service centers. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn mower.
  • Page 6 ASSEMBLY Read these instructions and this manual in its entirety OPERATOR PRESENCE before you attempt to assemble or operate your new lawn CONTROLBAR mower. Your new lawn mower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.

  • Page 7: Grass Catcher

    ASSEMBLY TO ASSEMBLE & ATTACH GRASS CATCHER CATCHER (See Figs. 4 & 5) FRAME ° Put grass catcher frame into grass bag with rigid part HANDLE of bag on the bottom. Make sure the frame handle is outside of the bag top. Slip vinyl bindings over frame.

  • Page 8: Starting The Engine

    OPERATION KNOW YOUR LAWN MOWER READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the ilJustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. DRIVE l CONTROL DRIVE SPEED CONTROL...

  • Page 9: Engine Speed Control

    OPERATION HOW TO USE YOUR LAWN MOWER ENGINE SPEED CONTROL (See Fig. 9) The engine speed is controlled by a lever (red knob) located on the side of the engine. Fast ('_) position is for starting engine, normal cutting and better grass bagging. Slow (,_) position is for light cutting, trimming and fuel economy.

  • Page 10: Engine

    OPERATION GROUND DRmVE FOUR SPEEDS (See Fig. 12) You r lawn mower provides four (4) speeds to let you select the speed that suits you best. The drive speed control lever can be changed while you are mowing. Speeds 1 and 2 are found when the engine speed DRIVE SPEED control (red) lever is in low position.

  • Page 11: Starting

    OPERATION TO START ENGINE • To start a cold engine, push primer five (5) times before trying to start. Use a firm push. This step is not usually necessary when starting an engine which has already run for a few minutes. •...

  • Page 12: Lubrication

    CUSTOMER RESPONSIBILmES MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check for Loose Fasteners Clean/Inspect Grass Catcher v" V" (if Equipped) v" Clean Lawn Mower Inspect/Clean Drive Wheels (Self-Propelled Mowers) Sharpen/Replace Mower Blade Lubrication Chart Clean Battery/Recharge (Electric Start Mowers) nmmEil...

  • Page 13: Replacement

    CUSTOMER RESPONSIBILiTiES LAWN MOWER CRANK- Always observe safety rules when performing any mainte- SHAFT& nance. BLADE ADAPTER TIRES DETAIL BLADE HARDENED Keep tires free of gasoline, oil, or insect control chemi- EDGE cals which can harm rubber. ADAPTER Avoid stumps, stones, deep ruts, sharp objects and other hazards that may cause tire damage.

  • Page 14: Drive Wheels

    CUSTOMER RESPONSIBILITIES DRIVE WHEELS (See Fig. 17) LOCKNUT WAVE WASHER I _'_ Check rear orwe wneels each time you mow to be sure they move freely. The wheels not turning freely means trash, WASHER _" grass cuttings, etc.. may be inside the drive wheel and dust cover area and must be cleaned out to free drive wheels.

  • Page 15: Air Filter

    CUSTOMER RESPONSIBILITIES ENGINE LUBRICATION Use only high quality detergent oil rated with AP] service classification Select the oil's SAE viscosity grade according to your expected operating temperature. VISCOSITY GRADES -20° 0° 30 o 32 ° 40° 60 _ 80° 100 ° °C-30_ -2'0°...

  • Page 16: Drive Belt

    SERVICE AND ADJUSTMENTS J A_ _ Release control bar and stop engine. Make sure the blade and al_ moving parts have completely stopped. Disconnect spark pJug wire from spark plug and place where it cannot come in contact with plug. LAWN MOWER LOCKNUT TOP HOOKS...

  • Page 17: Drive Control

    SERVICE AND ADJUSTMENTS TO ADJUST DR_VE CONTROL (See Figs. 24=26 ) /)72 uPPER • To check for proper adjustment of drive control, slowly OPERATOR pull down on the drive lever while pulling lawn mower PRESENCE backwards until rear wheels stop turning. When rear wheels stop turning, hold the drive lever and CONTROL HANDLE...

  • Page 18: Carburetor

    SERVICE AND ADJUSTMENTS HANDLE (See Fig. 27) TO ADJUST HANDLE The handle on your lawn mower has three (3) height ADJUSTMENT BRACKET positions - adjust to height that suits you. • Remove knob and carriage bolt on one side ofthe lower handle.

  • Page 19: Storage

    STORAGE Immediately prepare your lawn mower for storage at the ENGINE end of the season or if the unit will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM LAWN MOWER DEPOSITS FROM FORMING IN ESSENTIAL...
  • Page 20 REPAIR PARTS CRAFTSMAN 22" ROTARY LAWN MOWER- -MODEL NO. 917.373491 43 __ 49 i...
  • Page 21 Lower Handle 850998 Hex Head Thread Rolling Screw Locknut 5/16-18 STD541431 3/8-16 x 1-1/8 752183X Shoulder Bolt 700528 Engine - Craftsman Model No. 14&434032 Locknut 1/4-20 73510400 131986 Housing Decal "4 Speed Rear Drive" 752100X479 Handle Link (Right,} 701696 Owner's Manual...
  • Page 22 REPAIR PARTS CRAFTSMAN 22" ROTARY LAWN MOWER- -MODEL NO. 917.373491 7 3t...
  • Page 23 REPAIR PARTS CRAFTSMAN 22" ROTARY LAWN MOWER-,-MODEL NO. 917.373491 DESCRIPTION PART PART DESCRiPTiON Hex Head Screw 1/4-20 x 5/8 50705 Drive Pawl 851980 Locknut 5!16-18 750253 Access Door 752036 Drive Spring 751888 Hex Washer Head Screw #10-24 _ 7/16 71191012...
  • Page 24 REPAIR PARTS CRAFTSMAN 22" POWER-PROPELLED LAWN MOWER 917.373491 PART DESCRiPTiON 48356 Control Head Kit (Incl. Ref. #2) Plastite Screw #8 x 7/8 751837 751834 Torsion Spring 701599 Drive Actuator 751829 Drive Pulley 7011OO Speed Lever 751831 Lever Mounting Plastite Screw #4 x 518...
  • Page 25 CRAFTSMAN 4-.CYCLE ENGINE MODEL N UMBER 1 43.434032 378C <...
  • Page 26 CRAFTSMAN 4-CYCLE ENGINE MODEL N UMBER 1 43,434032 REF PART REF PART DESCRIPTmON NO. NO. DESCRIPTION NO. NO, 36265 Shroud, Engine Cylinder Assy. (Includes #2, 9 & 20) 166 35827 26727 Pin, Dowel 169 27234A * Gasket, Valve Spring Box...
  • Page 27 CRAFTSMAN 4-CYCLE ENGINE MODEL N UMBER 1 43.434032 CARBURETOR NO. 632644 REF PART NO. NO. DESCRiPTiON 631615 Throttle Shaft and Lever Assembly 631767 Throttle Return Spring 631184 Dust Sea! Washer, Throttle 631183 Dust Seal, Throttle 632590 Throttle Shutter 650506 Throttle and Choke Shutter Screw...

  • Page 28: Handle Height

    TROUBLESHOOTING POINTS CORRECTION PROBLEM CAUSE Ciean/replace air filter. Does not start Dirty air filter. Fill fuel lank. Out of fuel. Drain tank and refill with fresh clean fuel. Stale fuel. Drain fuel tank and carburetor and refill tank with fresh Water in fuel.
  • Page 29 SERVICE NOTES...
  • Page 30 SERVICE NOTES...
  • Page 31 SERVICE NOTES...
  • Page 32 [RAFTgMRN ® SWAINS OWNER'S 5.0 HORSEPOWER 22" REAR DISCHARGE MANUAL 3 IN ONE CONVERTIBLE POWER PROPELLED ROTARY LAWN MOWER Each lawn mower has its own model number. Each en- gine has its own model number. The model number for your lawn mower will be found on a MODEL NO.
