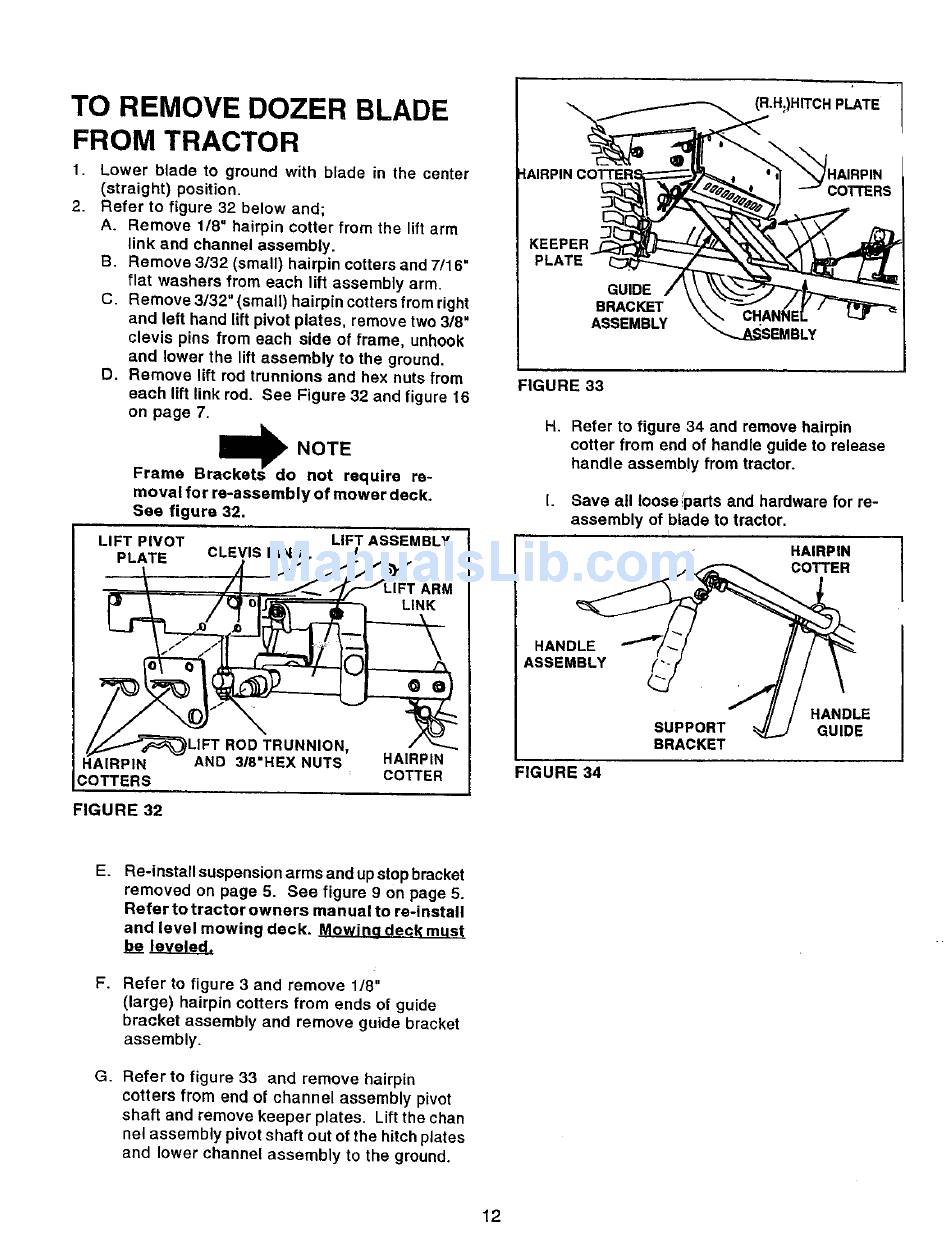

TO REMOVE DOZER BLADE
FROM TRACTOR
1.
Lower blade to ground with blade in the center
(straight)
position.
2.
Refer to figure 32 below and;
A.
Remove
1/8" hairpin
cotter
from the lift arm
link and channel assembly.
B. Remove
3/32 (smaU) hairpin cotters and 7/16"
flat washers from each lift assembly
arm.
C. Remove 3/32" (small) hairpin cotters from right
and left hand lift pivot plates,
remove two 3/8"
clevis
pins from each side of frame,
unhook
and lower the lift assembly to the ground.
13. Remove lift rod truenions and hex nuts from
each lift link rod. See Figure 32 and figure 16
on page 7.
__._.
NOTE
Frame
Brackets
do
not require
re-
moval for re-assembly
of mower deck.
See figure
32.
LIFT PIVOT
LIFT ASSEMBLY
PLATE
CLEVIS
PINS
ARM
LINK
LIFT ROD TRUNNION,
HAIRPIN
AND 318"HEX NUTS
HAIRPIN
COTTER
COTTERS
FIGURE
32
(R.H:)HITCHPLATE
"IAIRF
KEEPER
PLATE
GUIDE
BRACKET
ASSEMBLY
FIGURE 33
H. Refer to figure 34 and remove hairpin
cotter
from end of handle guide to release
handle assembly from tractor.
Save all loose parts and hardware for re-
assembly of blade to tractor.
•
HAIRPIN
COTTER
HANDLE
ASSEMBLY
FIGURE 34
HANDLE
SUPPORT
GUIDE
BRACKET
E.
F.
G.
Re-install
suspension arms and up stop bracket
removed
on page 5. See figure
9 on page 5.
Refer to tractor
owners
manual to re-install
and level mowing
deck.
Mowina deck must
be leveled.
Refer to figure
3 and remove
1/8"
(large)
hairpin cotters
from ends of guide
bracket
assembty and remove
guide bracket
assembly.
Refer to figure
33 and remove
hairpin
cotters
from end of channel
assembly
pivot
shaft and remove keeper plates.
Lift the chan
nel assembly
pivot shaft out of the hitch plates
and tower charmer assembly
to the ground.
12
