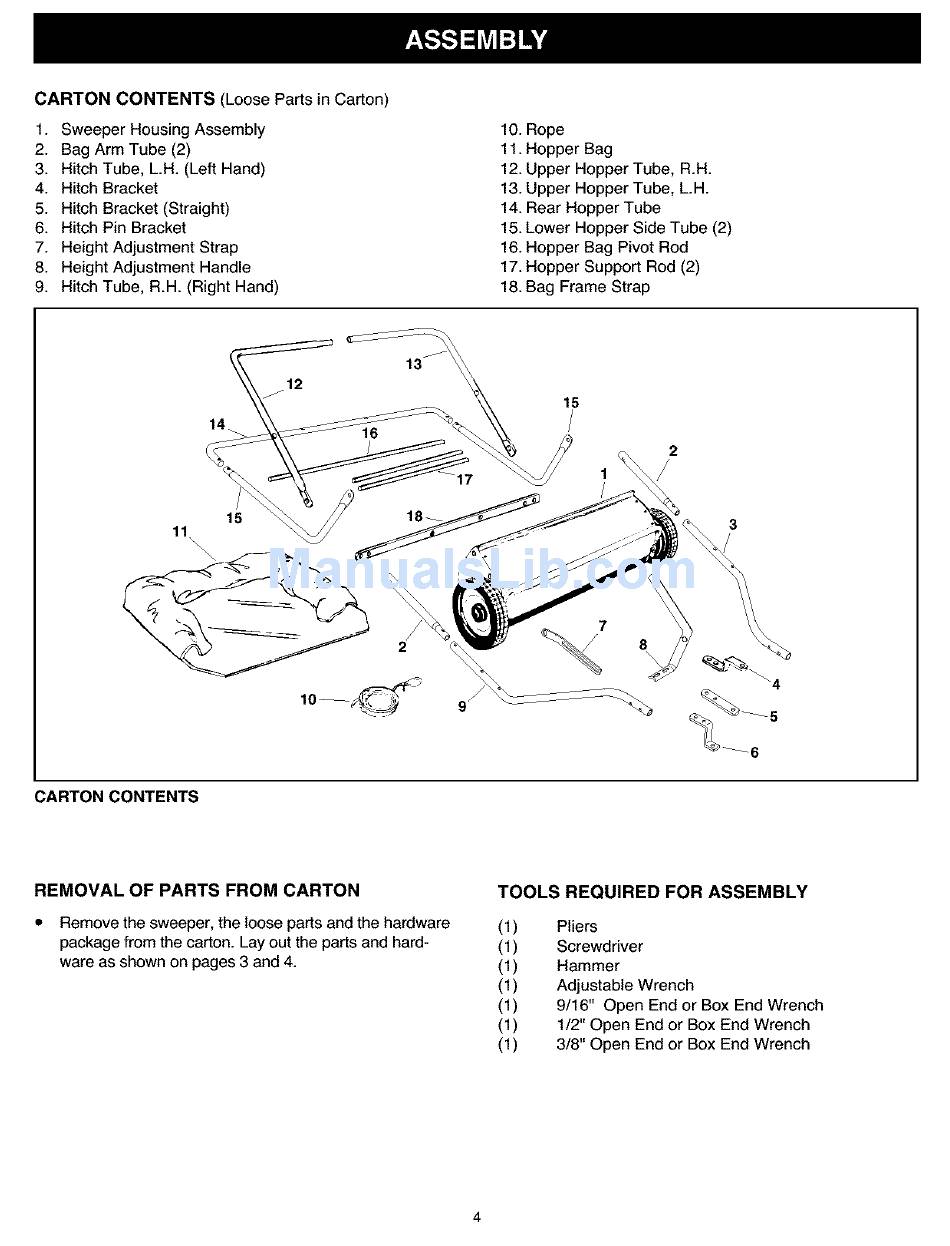

CARTON CONTENTS (Loose Parts in Carton)
1. Sweeper Housing Assembly
2. Bag Arm Tube (2)
3. Hitch Tube, L.H. (Left Hand)
4. Hitch Bracket
5. Hitch Bracket (Straight)
6. Hitch Pin Bracket
7. Height Adjustment Strap
8. Height Adjustment Handle
9. Hitch Tube, R.H. (Right Hand)
10. Rope
11. Hopper Bag
12. Upper Hopper Tube, R.H.
13. Upper Hopper Tube, L.H.
14. Rear Hopper Tube
15. Lower Hopper Side Tube (2)
16. Hopper Bag Pivot Rod
17. Hopper Support Rod (2)
18. Bag Frame Strap
15
15
11
\\
7
\4
5
CARTON CONTENTS
REMOVAL OF PARTS FROM CARTON
• Remove the sweeper, the loose parts and the hardware
package from the carton. Lay out the parts and hard-
ware as shown on pages 3 and 4.
TOOLS REQUIRED FOR ASSEMBLY
(1)
(1)
(1)
(1)
(1)
(1)
(1)
Pliers
Screwdriver
Hammer
Adjustable Wrench
9/16" Open End or Box End Wrench
1/2" Open End or Box End Wrench
3/8" Open End or Box End Wrench
4
