CRAFTSMAN 1/2 INCH HAMMER DRILL- MODEL NO. 315.101390
The model number will be found on a plate attached to the motor housing. Always mention the model number in all
correspondence regarding your 1/2 INCH HAMMER DRILL or when ordering repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
Key No. PaN No.
1 613150-003
2 973110-001
3 968703-013
4 972724-005
5 990963-001
6 972927-001
7 703774-005
8 972925-001
9 973825-001
10 972895-006
11 886165-000
12 972924-001
13 931744-063
14 972823-001
15 990962-001
16 606858-001
972000-148

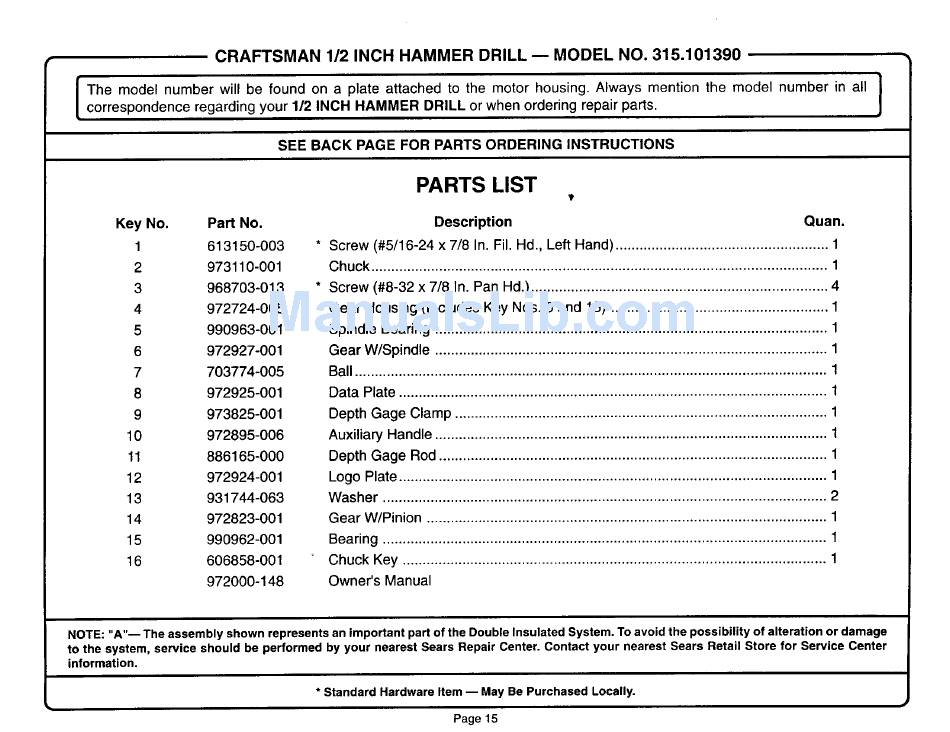

PARTS LIST
Description Quan.
Screw (#5/16-24 x 7/8 In. Fil. Hd., Left Hand) ..................................................... 1
Chuck .................................................................................................................. 1
Screw (#8-32 x 7/8 In. Pan Hd.) .......................................................................... 4
Gear Housing (Includes Key Nos. 5 and 15) ...................................................... 1
Spindle Bearing .................................................................................................. 1
Gear W/Spindle .................................................................................................. 1
Ball ...................................................................................................................... 1
Data Plate ........................................................................................................... 1
Depth Gage Clamp ............................................................................................. 1
Auxiliary Handle .................................................................................................. 1
Depth Gage Rod ................................................................................................. 1
Logo Plate ........................................................................................................... 1
Washer ............................................................................................................... 2
Gear W/Pinion .................................................................................................... 1
Bearing ............................................................................................................... 1
Chuck Key .......................................................................................................... 1
Owner's Manual
NOTE: "A"-- The assembly shown represents an important part of the Double Insulated System. To avoid the possibility of alteration or damage
to the system, service should be performed by your nearest Sears Repair Center. Contact your nearest Sears Retail Store for Service Center
information.
* Standard Hardware Item -- May Be Purchased Locally.
t=
Page 15
