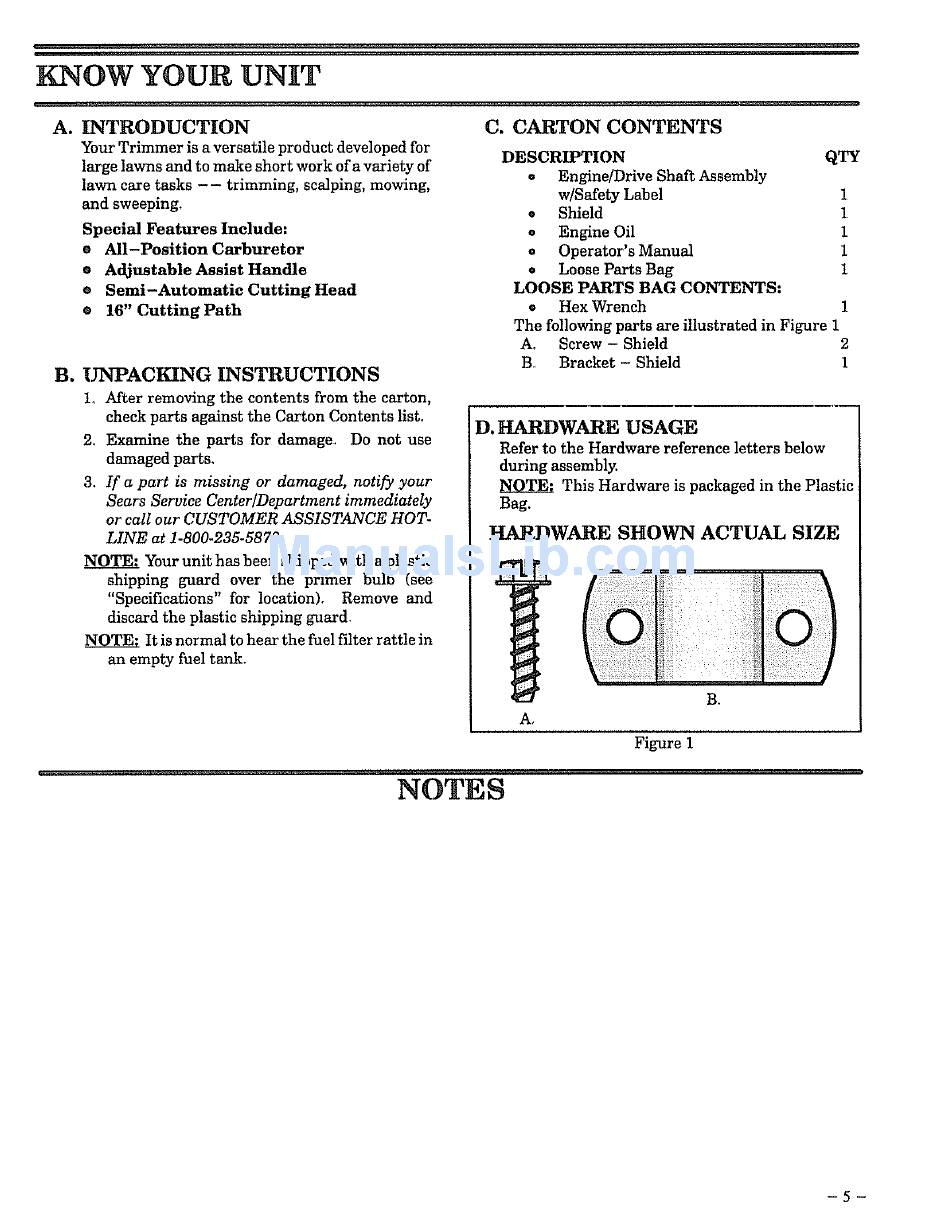

Craftsman 358.799240 Operator's Manual page 5

KNOW YOUR UNIT
A. INTRODUCTION
Your Trimmer is a versatile product developed for
large lawns and to make short work of a variety of DESCRIPTION QTY
lawn care tasks - - trimming, scalping, mowing, e Engine/Drive Shaft Assembly
and sweeping+ w/Safety Label 1
e Shield 1
Special Features Include: e Engine Oil 1
® All-Position Carburetor o Operator's Manual 1
e Adjustable Assist Handle . Loose Parts Bag 1
e Semi-Automatic Cutting Head LOOSE PARTS BAG CONTENTS:
e 16" Cutting Path • Hex Wrench 1
The following parts are illustrated in Figure 1
A. Screw - Shield 2
B+ Bracket - Shield 1
B. UNPACKING INSTRUCTIONS
1, After removing the contents from the carton,
check parts against the Carton Contents lisL
2_ Examine the parts for damage. Do not use
damaged parts,
3. If a part is missing or damaged, notify your
Sears Service Center/Department immediately
or call our CUSTOMER ASSISTANCE HOT-
LINE at 1-800-235-5878+
NOTE.' Your unit has been shipped with a plastic
shipping guard over the primer bulb (see
"Specifications" for location), Remove and
discard the plastic shipping guard,
N___O_T_A It is normal to hear the fuel filter rattle in
an empty fuel tank+
C. CARTON CONTENTS
D. HARDWARE USAGE
Refer to the Hardware reference letters below
during assembly.
This Hardware is packaged in the Plastic
Bag.
HARDWARE SHOWN ACTUAL SIZE
A,
iiiili?i iYI? i f i!!fii!!!! +i
B,
Figure 1
NOTES
