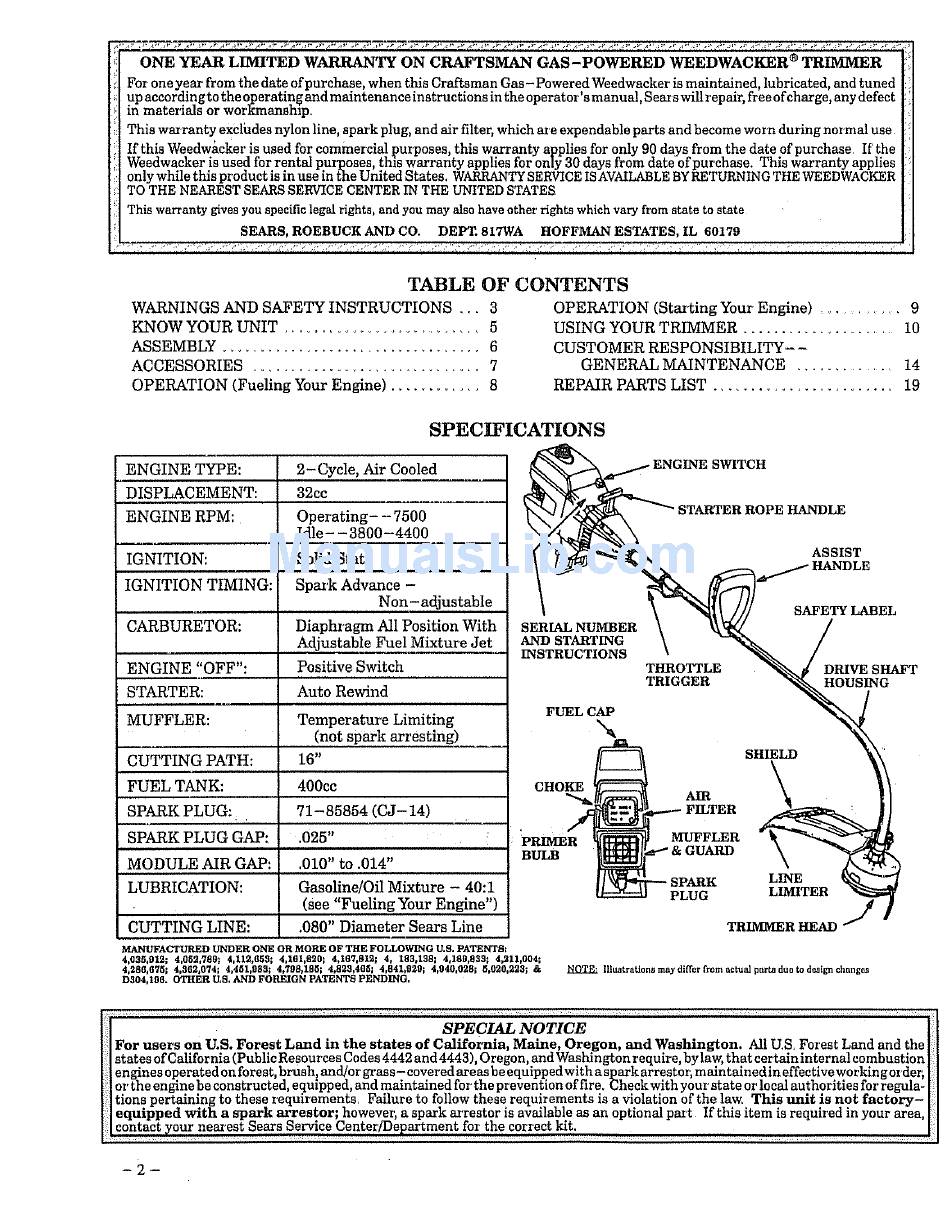

ONE YEAR LIMITED WARRANTY ON CRAFTSMAN GAS-POWERED WEEDWACKER ® TRIMMER
For one year from the date of purchase, when this Craftsman Gas- Powered Weedwacker is maintained, lubricated, and tuned
up accordingto the operating and maintenance instructions in the operator's manual, Seres will repair, free of charge, any defect
in materials or workraanehip_
This warranty excludes nylon line, spark plug, and air filter, which are expendable parts and become worn during normal use
If this Weedw_ckar is used for commarcial purposes, this warranty applies for only 90 days from the date of purchase If the
Weedwacker is used for rental pmlposes, this warranty applies for only 30 days from date of purchase. This warranty applies
only while this product is in use in the United States. WARRANTY SERVICE IS AVAILABLE BY RETURNING THE WEEDWACKER
TO THE NEAREST SEARS SERVICE CENTER IN THE UNITED STATES
This warranty gives you specific legal rlghtB, and you may also have other rights which vary from state to state
SEARS, ROEBUCK AND CO. DEPT. 817WA HOFFMANESTATES, IL 60179
TABLE OF CONTENTS
WARNINGS AND SAFETY INSTRUCTIONS •.. 3
KNOW YOUR UNIT ............................. 5
ASSEMBLY .................................. 6
ACCESSORIES ............................. 7
OPERATION (Fueling Your Engine) ............ 8
OPERATION (Stai'ting Your Engine) ....
USING YOUR TRIMMER ...............
CUSTOMER RESPONSIBILITY- -
GENERAL MAINTENANCE ........
.... • 9
.... 10
.... 14
REPAIR PARTS LIST ........................ 19
ENGINE TYPE:
DISPLACEMENT:
ENGINE RPM:
IGNITION:
IGNITION TIMING:
CARBURETOR'.
ENGINE "OFF":
STARTER:
MUFFLER:
CUTTING PATH:
FUEL TANK:
SPARK PLUG: .
SPARK PLUG GAP"
MODULE AIR GAP:
LUBRICATION:
CUTTING LINE:
2-Cycle, Air Cooled
32cc
Operating- - 7500
Idle- -3800-4400
Solid State
Spm'k Advance -
Non-adiustable
Diaphragm All Position With
Adiustable Fuel Mixture Jet
Positive Switch
Auto Rewind
Temperature Limiting
(not spark arresting)
16"
400cc
71-85854 (CJ-14)
.025"
.010" to .014"
Gasoline/Oil Mixture - 40:1
(see "Fueling Your Engine")
.080" Diameter Sears Line
SPECIFICATIONS
_ ENGINE SWITCH
_ _ STARTER ROPE HANDLE
_ _ ASSIST
o
SERIAL NUMBER \ _ /
AND STARTING X _'_"'_ /
INSTRUCTIONS \ _ /
THROTTLE _ _ DRIVE SHAFT
TRIGGER "_"_OU SING
SHIELD kii '
CHOKE \
, /
SPAR] LINE _'_:
PLUG LIMITER
TRINfMER HEAD J
MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS_
4,035,S12_ 4,052.789_ 4,11S.653; 4,1SI,820_ 4.167.812; 4. 183.138_ 4.189.833_ 4,21L004_
4,286,675_ 4,3t_2,074; 4_451,I}8S; 4,798,18_; 4,823,4(1_I 4,84LB29; 4,940,028_ _,020,223; & _ IUun_ration_ may differ from actual parte duo to design ¢hango_
D304,198. OTHER U,S, AND FOREIGN pATENTS PENDING.
SPECIAL NOTICE
For users on U.S. Forest Land in the states of California, Maine, Oregon, and Washington. All U.S Farest Land and the
states of California (Public Resources Codes 4442 and 4443), Oregon, and Washington require, by law, that certain internal combustion
engines operated on forest, brush, and]or grass - covered areas be equipped with a spark arrestor, maintained in effective working order_
or the engine be constructed, equipped, and maintained for the prevention of fire. Check with your'state or local authorities for regula-
tions pertaining to these requirements. Failure to follow these requirements is a violation of the law. Thin unit is not factory-
equipped with a spark arrestor; however, a spark arrestar is available as an optional paz t If this item is required in your area,
contact _our nearest Sears Service Center/Department for the correct kit.
