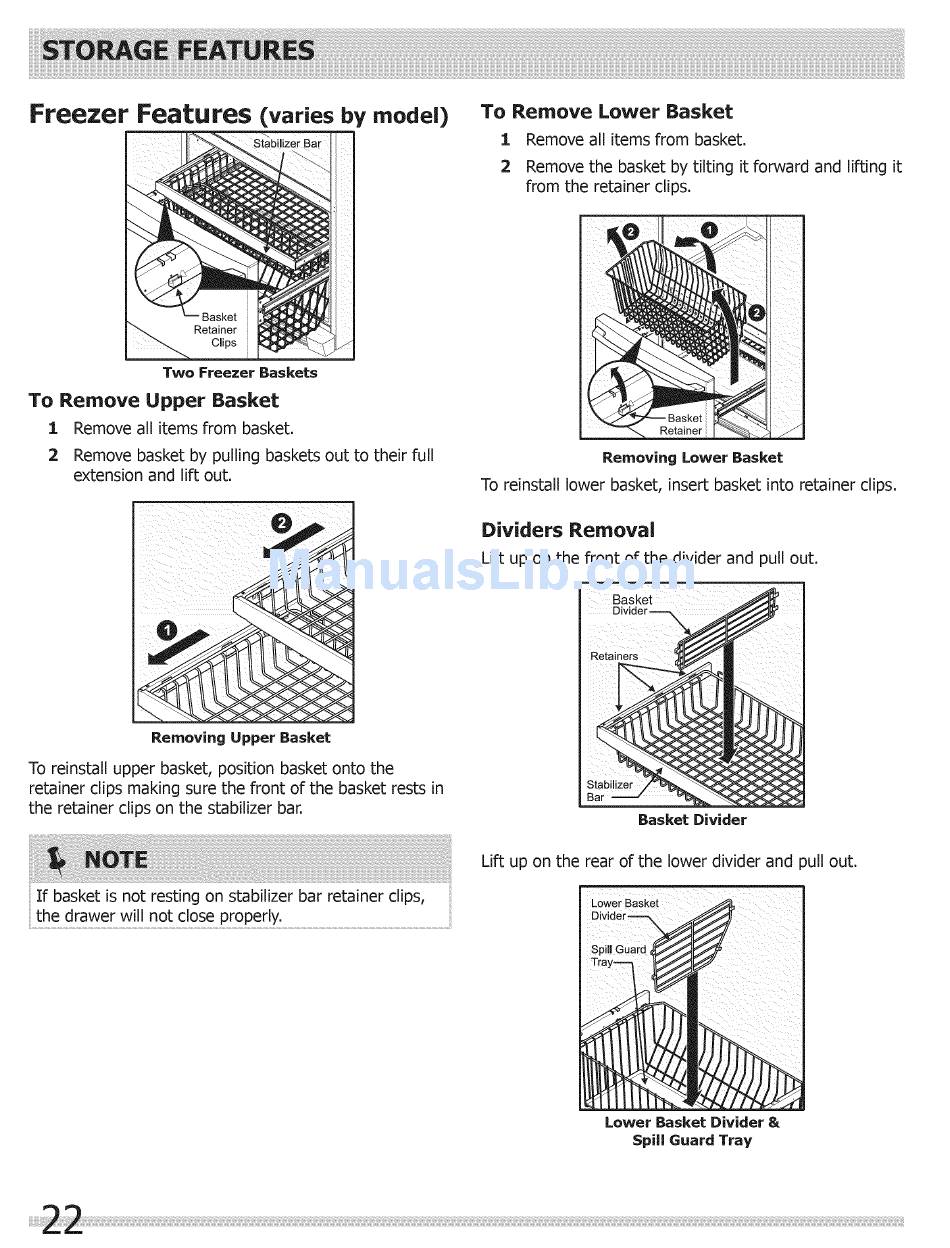

Freezer Features
(varies by model)
Two Freezer Baskets
To Remove Upper Basket
1 Remove all items from basket.
2 Remove basket by pulling baskets out to their full
extension and lift out.
To reinstall upper basket, position basket onto the
retainer clips making sure the front of the basket rests in
the retainer clips on the stabilizer bar.
If basket is not resting on stabilizer bar retainer clips,
To Remove Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it forward and lifting it
from the retainer clips.
[
E
E
Retainer i:_
Removing Lower Basket
To reinstall lower basket, insert basket into retainer clips.
Dividers Removal
Lift up on the front of the divider and pull out.
Basket
Divider ---_
Retainers
Basket Divider
Lift up on the rear of the lower divider and pull out.
Lower Basket Divider &
Spill Guard Tray
