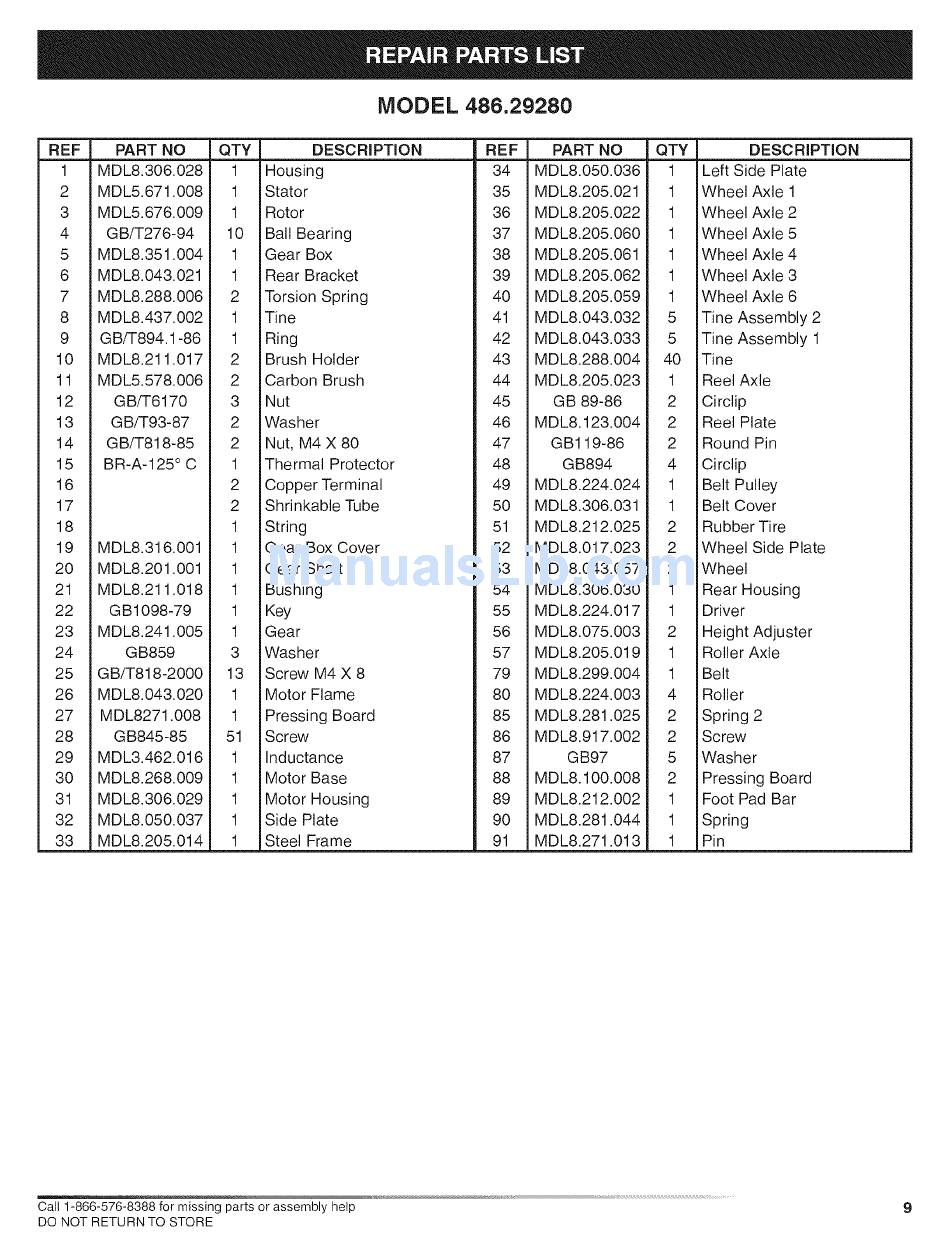

Craftsman 486.29280 Operator's Manual page 9

MODEL 4.86.29280
REF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
30
31
32
33
PART NO QTY DESCRIPTION REF PART NO QTY DESCRIPTION
MDL8.306.028 1 Housing 34 MDL8.050.036 1 Left Side Plate
MDL5.671.008 1 Stator 35 MDL8.205.021 1 Wheel Axle 1
MDL5.676.009 1 Rotor 36 MDL8.205.022 1 Wheel Axle 2
GB/T276-94 10 Ball Bearing 37 MDL8.205.060 1 Wheel Axle 5
MDL8.351.004 1 Gear Box 38 MDL8.205.061 1 Wheel Axle 4
MDL8.043.021 1 Rear Bracket 39 MDL8.205.062 1 Wheel Axle 3
MDL8.288.006 2 Torsion Spring 40 MDL8.205.059 1 Wheel Axle 6
MDL8.437.002 1 Tine 41 MDL8.043.032 5 Tine Assembly 2
GB/T894.1-86 1 Ring 42 MDL8.043.033 5 Tine Assembly 1
MDL8.211.017 2 Brush Holder 43 MDL8.288.004 40 Tine
MDL5.578.006 2 Carbon Brush 44 MDL8.205.023 1 Reel Axle
GB/T6170 3 Nut 45 GB 89-86 2 Circlip
GB/T93-87 2 Washer 46 MDL8.123.004 2 Reel Plate
GB/T818-85 2 Nut, M4 X 80 47 GB119-86 2 Round Pin
BR-A-125 ° C 1 Thermal Protector 48 GB894 4 Circlip
2 Copper Terminal 49 MDL8.224.024 1 Belt Pulley
2 Shrinkable Tube 50 MDL8.306.031 1 Belt Cover
1 String 51 MDL8.212.025 2 Rubber Tire
MDL8.316.001 1 Gear Box Cover 52 MDL8.017.023 2 Wheel Side Plate
MDL8.201.001 1 Gear Shaft 53 MDL8.043.057 2 Wheel
MDL8.211.018 1 Bushing 54 MDL8.306.030 1 Rear Housing
GB1098-79 1 Key 55 MDL8.224.017 1 Driver
MDL8.241.005 1 Gear 56 MDL8.075.003 2 Height Adjuster
GB859 3 Washer 57 MDL8.205.019 1 Roller Axle
I GB/T818-2000 13 Screw M4 X 8 79 MDL8.299.004 1 Belt
MDL8.043.020 1 Motor Flame 80 MDL8.224.003 4 Roller
MDL8271.008 1 Pressing Board 85 MDL8.281.025 2 Spring 2
GB845-85 51 Screw 86 MDL8.917.002 2 Screw
MDL3.462.016 1 Inductance 87 GB97 5 Washer
MDL8.268.009 1 Motor Base 88 MDL8.100.008 2 Pressing Board
MDL8.306.029 1 Motor Housing 89 MDL8.212.002 1 Foot Pad Bar
MDL8.050.037 1 Side Plate 90 MDL8.281.044 1 Spring
MDL8.205.014 1 Steel Frame 91 MDL8.271.013 1 Pin
Call 1-866-576-8388 for missing parts or assembly help 9
DO NOT RETURN TO STORE
