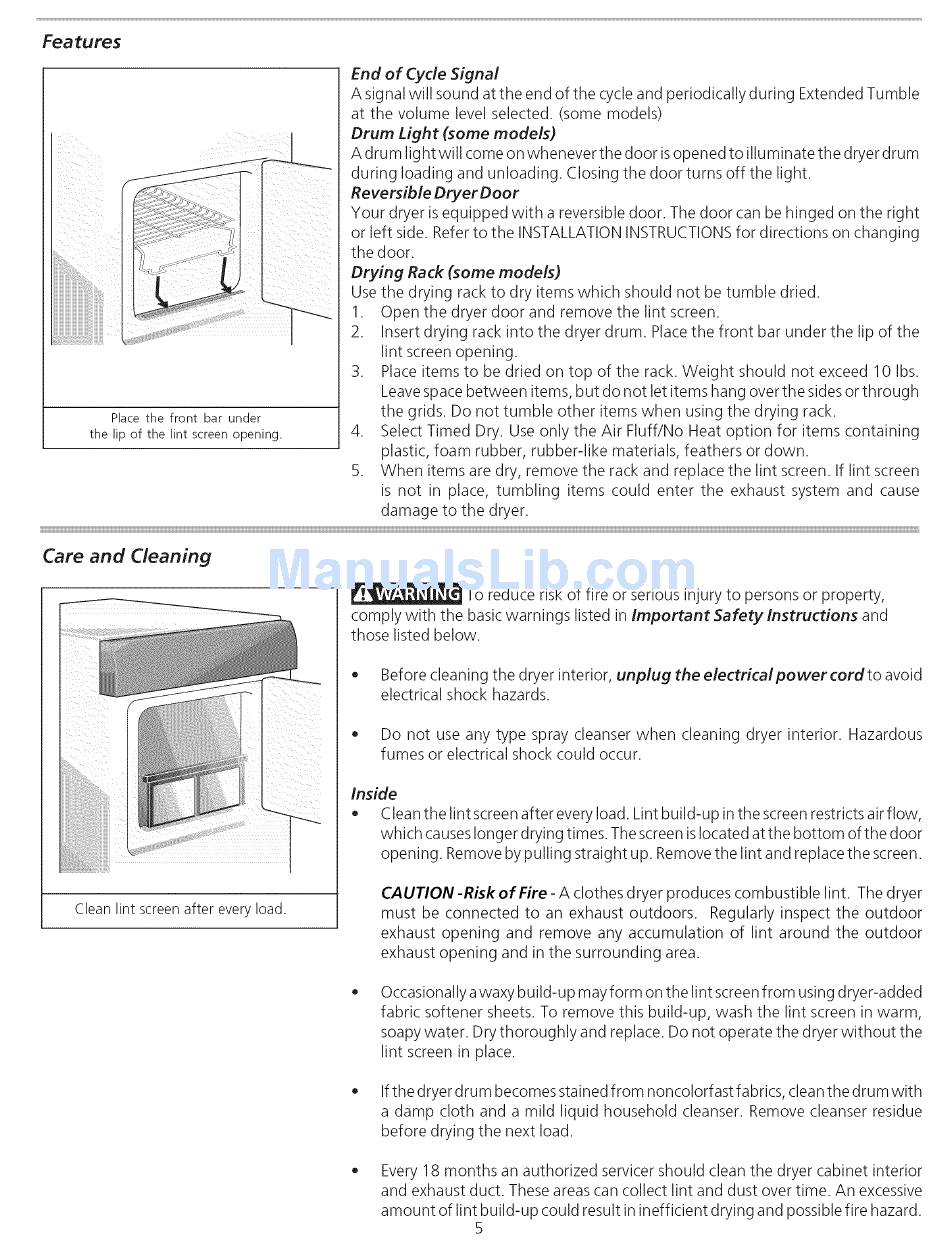

End of Cycle Signal
A signal will sound at the end of the cycle and periodically during Extended Tumble
at the volume level selected. (some models)
Drum Light (some models)
A drum light will come on whenever the door is opened to illuminate the dryer drum
during loading and unloading. Closing the door turns off the light.
Reversible Dryer Door
Your dryer is equipped with a reversible door. The door can be hinged on the right
or left side. Refer to the INSTALLATION INSTRUCTIONSfor directions on changing
Drying Rack (some models)
Use the drying rack to dry items which should not be tumble dried.
Open the dryer door and remove the lint screen.
Insert drying rack into the dryer drum. Placethe front bar under the lip of the
lint screen opening.
Place items to be dried on top of the rack. Weight should not exceed 10 Ibs.
Leave space between items, but do not let items hang over the sides or through
Place the front bar under
the grids. Do not tumble other items when using the drying rack.
the lip of the lint
Select Timed Dry. Use only the Air Fluff/No Heat option for items containing
plastic, foam rubber, rubber-like materials, feathers or down.
When items are dry, remove the rack and replace the lint screen. If lint screen
is not in place, tumbling
items could enter the exhaust system and cause
damage to the dryer.
Clean lint screen after every load.
To reduce risk of fire or serious injury to persons or property,
comply with the basic warnings listed in ImportantSafetylnstructions
those listed below.
Before cleaning the dryer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous
fumes or electrical shock could occur.
Clean the lint screen after every load. Lint build-up in the screen restricts air flow,
which causeslonger drying times. The screen islocated atthe bottom of the door
opening. Remove by pulling straight up. Removethe lint and replace the screen.
of Fire - A clothes dryer produces combustible lint. The dryer
must be connected to an exhaust outdoors.
Regularly inspect the outdoor
exhaust opening and remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
Occasionally a waxy build-up may form on the lint screen from using dryer-added
fabric softener sheets. To remove this build-up, wash the lint screen in warm,
soapy water. Dry thoroughly and replace. Do not operate the dryer without the
lint screen in place.
If the dryer drum becomes stained from noncolorfast fabrics, clean the drum with
a damp cloth and a mild liquid household cleanser. Remove cleanser residue
before drying the next load.
Every 18 months an authorized servicer should clean the dryer cabinet interior
and exhaust duct. These areas can collect lint and dust over time. An excessive
amount of lint build-up could result in inefficient drying and possible fire hazard.
