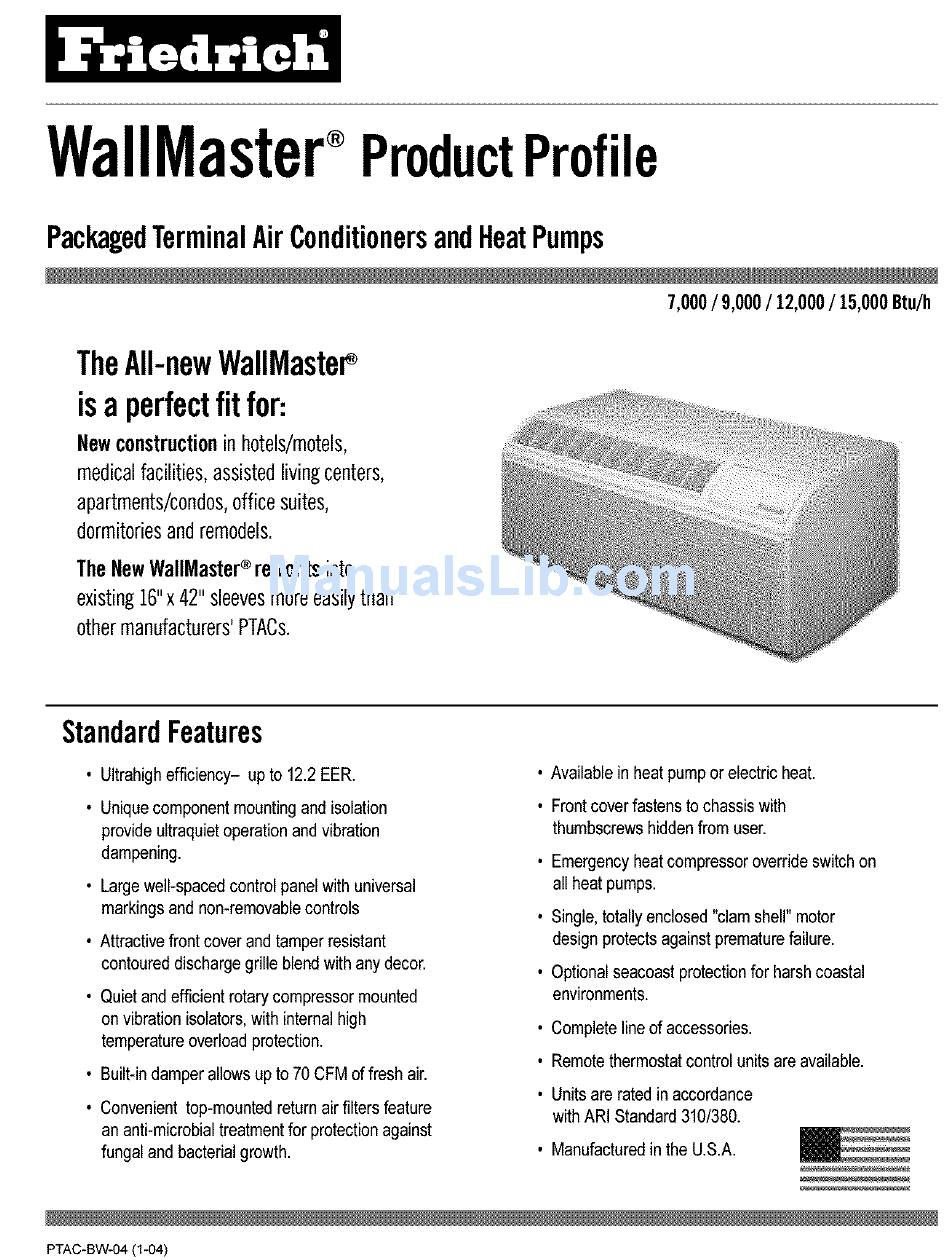

Friedrich WallMaster PE Series Specifications

WallMaster ®
Product Profile
Packaged Terminal AirConditioners andHeat Pumps
7,000 / 9,000 / 12,000 / 15,000 Btu/h
The All-new WallMaste_
isa perfect fitfor:
Newconstruction in hotels/motels,
medical facilities, a ssisted livingcenters,
apartments/c0nd0s, officesuites,
dormitories a ndremodels.
TheNew WallMaster ®retrofits into
existing 16"x42"sleeves moreeasily than
othermanufacturers' PTACs.
Standard Features
• Ultrahigh efficiency- up to 12.2 EER.
• Unique component mounting and isolation
provide ultraquiet operation and vibration
dampening.
• Large well-spaced control panel with universal
markings and non-removable controls
• Attractive front cover and tamper resistant
contoured discharge grille blend with any decor.
• Quiet and efficient rotary compressor mounted
on vibration isolators, with internal high
temperature overload protection.
• Built-in damper allows up to 70 CFM of fresh air.
• Convenient top-mounted return air filters feature
an anti-microbial treatment for protection against
fungal and bacterial growth.
• Available in heat pump or electric heat.
• Front cover fastens to chassis with
thumbscrews hidden from user.
• Emergency heat compressor override switch on
all heat pumps.
• Single, totally enclosed "clam shell" motor
design protects against premature failure.
• Optional seacoast protection for harsh coastal
environments.
• Complete line of accessories.
• Remote thermostat control units are available.
• Units are rated in accordance
with ARI Standard 310/380.
• Manufactured in the U.S.A.
PTAC-BW-04 (1-04)
