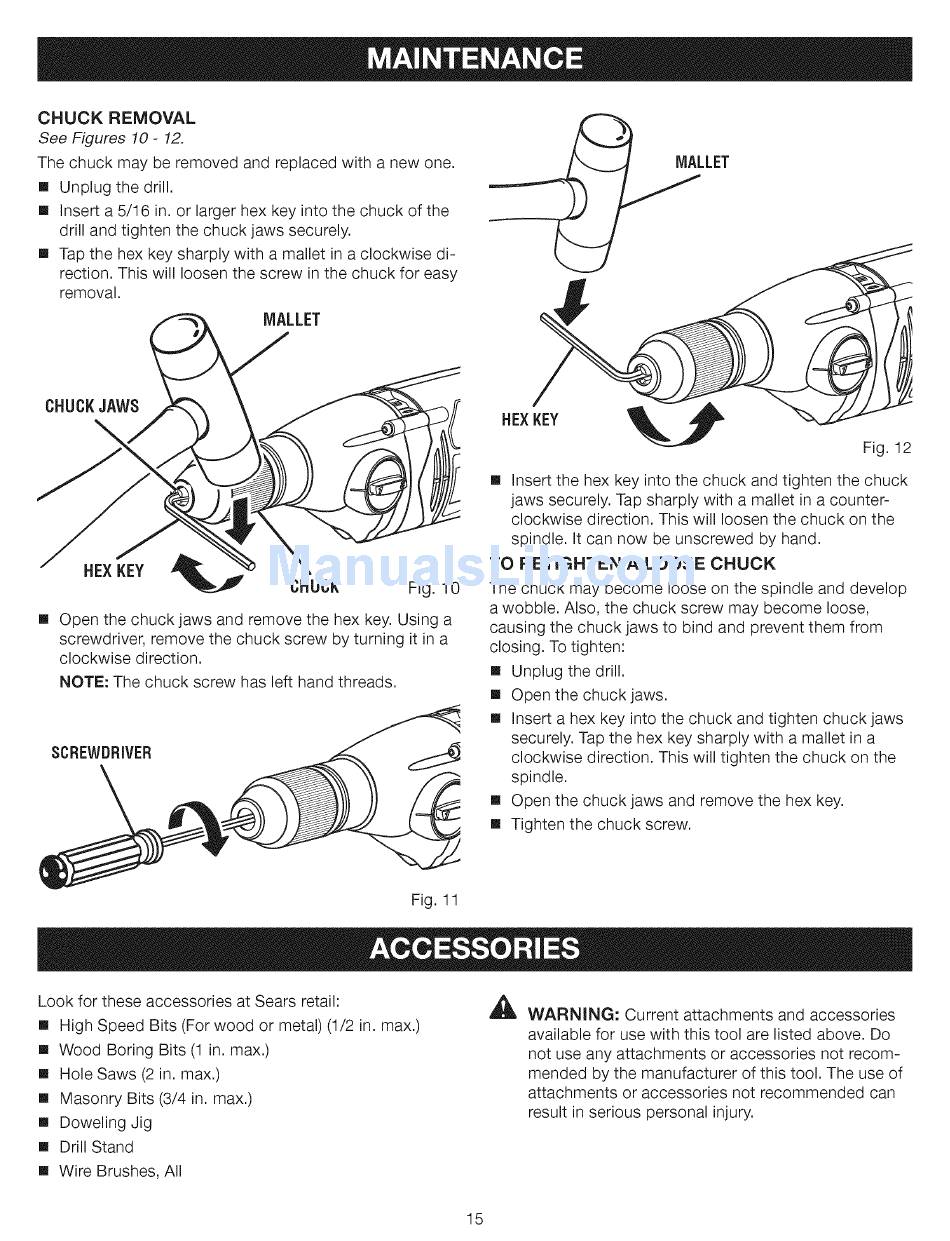

CHUCK REMOVAL
See Figures 10- 12.
The chuck may be removed and replaced with a new one.
[] Unplug the drill.
[] Insert a 5/16 in. or larger hex key into the chuck of the
drill and tighten the chuck jaws securely.
[] Tap the hex key sharply with a mallet in a clockwise di-
rection. This will loosen the screw in the chuck for easy
removal.
MALLET
MALLET
CHUCKJAWS
[]
HEXKEY
Open the chuck jaws and remove the hex key. Using a
screwdriver, remove the chuck screw by turning it in a
clockwise direction.
NOTE: The chuck screw has left hand threads.
SCREWDRIVER J
REXKEY
Fig. 12
[] Insert the hex key into the chuck and tighten the chuck
jaws securely. Tap sharply with a mallet in a counter-
clockwise direction. This will loosen the chuck on the
spindle. It can now be unscrewed by hand.
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on the spindle and develop
a wobble. Also, the chuck screw may become loose,
causing the chuck jaws to bind and prevent them from
closing. To tighten:
[] Unplug the drill.
[] Open the chuck jaws.
[] Insert a hex key into the chuck and tighten chuck jaws
securely. Tap the hex key sharply with a mallet in a
clockwise direction. This will tighten the chuck on the
spindle.
[] Open the chuck jaws and remove the hex key.
[] Tighten the chuck screw.
Fig. 11
Look for these accessories at Sears retail:
[] High Speed Bits (For wood or metal) (1/2 in. max.)
[] Wood Boring Bits (1 in. max.)
[] Hole Saws (2 in. max.)
[] Masonry Bits (3/4 in. max.)
[] Doweling Jig
[] Drill Stand
A
WARNING" Current attachments and accessories
available for use with this tool are listed above. Do
not use any attachments or accessories not recom-
mended by the manufacturer of this tool. The use of
attachments or accessories not recommended can
result in serious personal injury.
[] Wire Brushes, All
15
