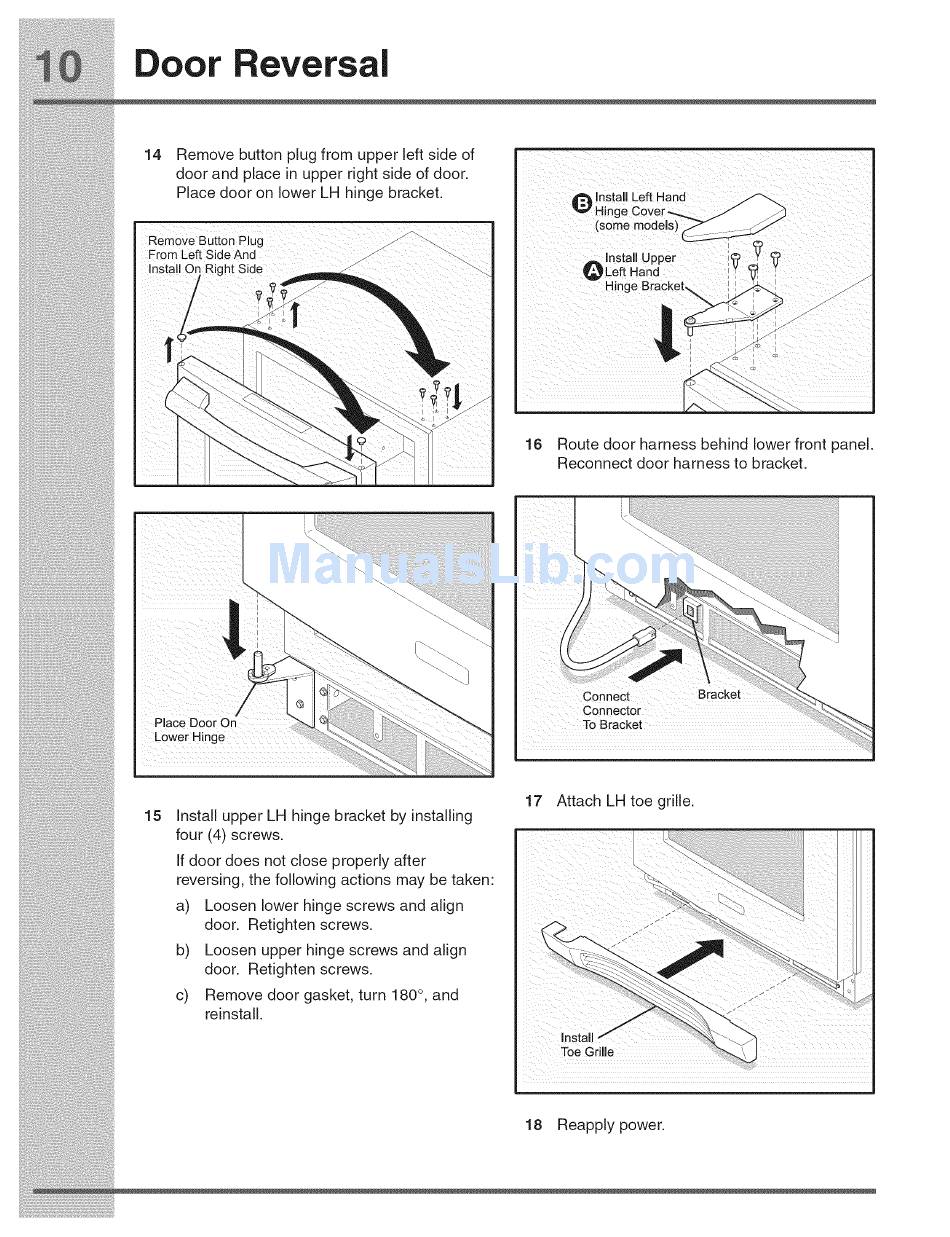

Door Reversal
14
Remove button plug from upper left side of
door and place in upper right side of door.
Place door on lower LH hinge bracket.
Remove Button Piug
.,_
"\_
From Left S de And
J"
%.,
Right Side
_
nstall Left Hand
Hin,
(some models)
16
Route door harness behind lower front panel.
Reconnect door harness to bracket.
.
Place Door On
Lower Hinge
15
Install upper LH hinge bracket by installing
four (4) screws.
If door does not close properly after
reversing, the following actions may be taken:
a)
Loosen lower hinge screws and align
door. Retighten screws.
b)
Loosen upper hinge screws and align
door. Retighten screws.
c)
Remove door gasket, turn 180 °, and
reinstall.
17
Attach LH toe grille.
Toe Grille
18
Reapply power.
