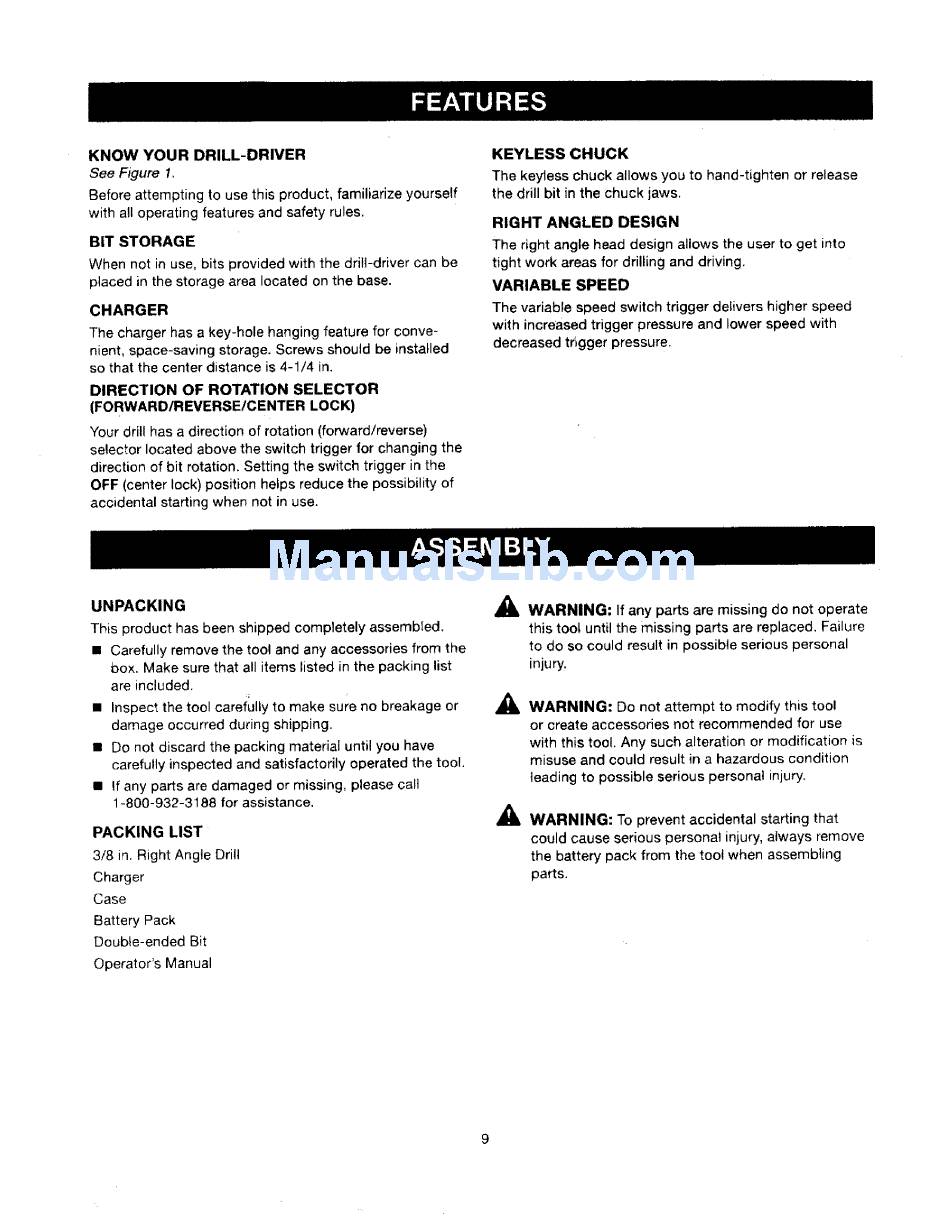

KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
BIT STORAGE
When not in use, bits provided with the drill-driver can be
placed in the storage area located on the base.
CHARGER
The charger has a key-hole hanging feature for conve-
nient, space-saving storage. Screws should be installed
so that the center distance is 4-1/4 in.
DIRECTION OF ROTATION SELECTOR
(FORWARD/REVERSE/CENTER LOCK)
Your drill has a direction of rotation (forward/reverse)
selector located above the switch trigger for changing the
direction of bit rotation. Setting the switch trigger in the
OFF (center lock) position helps reduce the possibility of
accidental starting when not in use.
KEYLESS CHUCK
The keyless chuck allows you to hand-tighten or release
the drill bit in the chuck jaws.
RIGHT ANGLED DESIGN
The right angle head design allows the user to get into
tight work areas for drilling and driving.
VARIABLE SPEED
The variable speed switch trigger delivers higher speed
with increased trigger pressure and lower speed with
decreased tdgger pressure.
UNPACKING
This product has been shipped completely assembled.
• Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list
are included.
• Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
• Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
• If any parts are damaged or missing, please call
1-800-932-3188 for assistance,
PACKING LIST
3/8 in. Right Angle Drill
Charger
Case
Battery Pack
Double-ended Bit
Operator's Manual
A
A
a,
WARNING: If any parts are missing do not operate
this toot until the missing parts are replaced, Failure
to do so could result in possible serious personal
injury.
WARNING: Do not attempt to modify this tool
or create accessories not recommended for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING: To prevent accidental starting that
could cause serious personal injury, always remove
the battery pack from the too! when assembling
parts.
