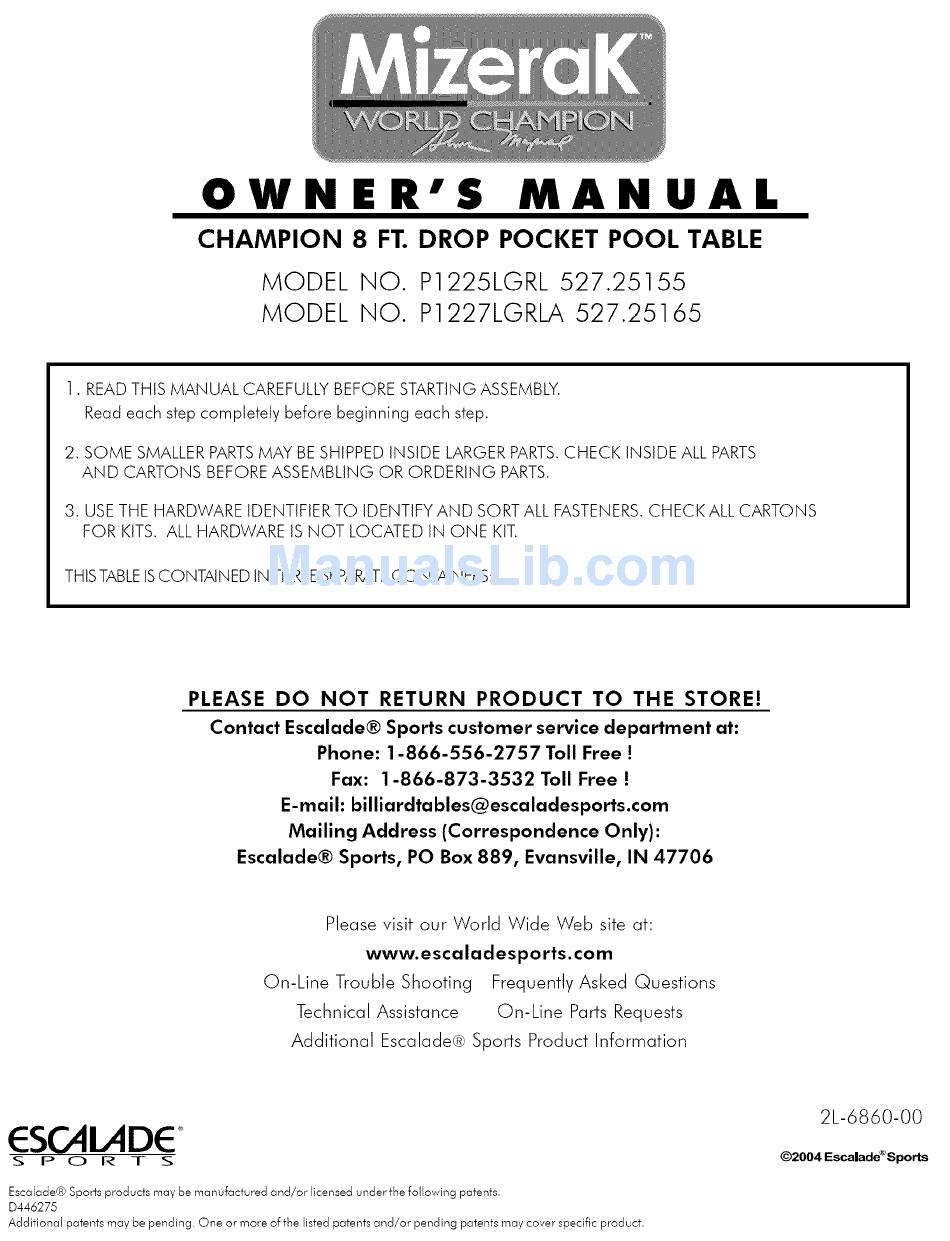

OWNER'S
MANUAL
CHAMPION
8 FT. DROP POCKET POOL TABLE
MODEL NO. P]225LGRL 527.25155
MODEL NO. P]227LGRLA 527.25165
1. READ THIS MANUAL CAREFULLY BEFORE STARTING ASSEMBLY.
Read each step completely before beginning each step.
2. SOME SMALLER PARTSMAY BE SHIPPED INSIDE LARGER PARTS.CHECK INSIDE ALL PARTS
AND CARTONS BEFORE ASSEMBLING OR ORDERING PARTS.
3. USE THE HARDWARE IDENTIFIER TO IDENTIFY AND SORT ALL FASTENERS. CHECK ALL CARTONS
FOR KITS. ALL HARDWARE IS NOT LOCATED IN ONE KIT.
THIS TABLEISCONTAINED IN THREESEPARATE CONTAINERS:
PLEASE
DO
NOT
RETURN
PRODUCT
TO
THE
STORE!
Contact Escalade®
Sports customer service department
at:
Phone: 1-866-556-2757
Toll Free !
Fax: 1-866-873-3532
Toll Free !
E-mail:
billiardtables@escaladesports.com
Mailing
Address (Correspondence
Only):
Escalade®
Sports, PO Box 889, Evansville,
IN 47706
Please visit our World Wide Web site at:
www.escaladesports.com
On-Line Trouble Shooting
Frequently Asked Questions
Technical Assistance
On-Line Parts Requests
Additional
Escalade® Sports Product Information
ESCAI.ADE
S
P
0
R
T
S
Escdade®
Spots
products
may be manufactured
and/or
licensed underthe
following
patents.
D446275
Additional
patents may be pending.
One or more of the listed patents and/or
pending
patents may cover specific product.
2L-6860-00
®
@2004
Escalade
Sports
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ESCALADE MizeraK P1225LGRL 527.25155
Summary of Contents for ESCALADE MizeraK P1225LGRL 527.25155
- Page 1 OWNER'S CHAMPION 1. READ THIS MANUAL CAREFULLY BEFORE STARTING ASSEMBLY. Read each step completely before beginning each step. 2. SOME SMALLER PARTSMAY BE SHIPPED INSIDE LARGER PARTS.CHECK INSIDE ALL PARTS AND CARTONS BEFORE ASSEMBLING OR ORDERING PARTS. 3. USE THE HARDWARE IDENTIFIER TO IDENTIFY AND SORT ALL FASTENERS. CHECK ALL CARTONS FOR KITS.
- Page 2 THE SPRAY ADHESIVE USED FOR APPLYING PRESSURE! CAREFULLY READ CAUTIONS CHILDREN! DO NOT USE OR STORE NEAR HEAT SOURCE ! FLAMES ! SPARKS OR WHEN AREA MUST BE WELL VENTILATED. Tools Needed: • Hammer (Claw Type) • Needle Nose Pliers •...
- Page 3 ASSEMBLE TWO LEG PEDESTALS AS FOLLOWS: 1. Begin by opening hardware kits and sod hardware. Remove the mounting plate from one leveler #22 and attach it to bottom of left leg # 19 using two screws #27 and two dowel connectors #26. Cover holes with adhesive hole covers #28.
- Page 4 5. Attach beam # 15 by using four bolts #40, #50, and four tocknuts #49 for each of the leg mounting location. Place one washer between the bolts and beam and one between leg posts and tocknuts. Tighten these bolts securely.
- Page 5 NOTE: Screwheads should flush with or below top of the slats #16 and #17. 9. Place long slats #16 (50 inches long) and short slats # 17 (36 inches long) across table from beam to beam as shown in figure 6. Make sure to use the two shorter slats #17 on the ends of the beams and the two longer slats #16 in the center as shown.
- Page 6 LEVELING BASE FRAME 11. Using a carpenter's level, leveltable aswell as possible. It iseasier to do it now rather than after the slate is on frame. Determine the highest corner of the fra me. Raise other three corners to the level of the highest corner by shimming underneath legs using playing card stock or grey leg shim stock (#47) shipped with this table.
- Page 7 ¢AUTION: DETERMINE THE TOP SIDE OF THE PLAY SURFACE! IMPORTANT: Be sure countersunk holes in all three table top sections #9 and # 10 face up: See Figure 10. NOTE: Slatron tables have "match" Iine markings like those shown above (letters A, B, C). Line up these lines when putting clown the statron sections.
- Page 8 SHIMMING INSTRUCTIONS General Rules • Accomplish the leveling of slate with as few shims as possible. • Slate is brittle. Do not tap with a hammer screws unreasonable tight. You will not be abqe to compress the slate. You must shim up the slate to level. Shims #38 are meant only to raise the low places at the seams and ends.
- Page 9 WARNING: Applying cloth 22. Make sure slate/slatron is dry and free of dust. NOTE: Before spraying adhesive, cut a podion of the shipping cation to use as a shield to prevent cement overspray. 23. Place cloth over slate/slatron with equal overhang on all sides. NOTE: Cloth may seem small but it will stretch a great deal.
- Page 10 Slate Look along the front edge of the side rails to be sure they align. Side rails must be in a straight line with each other, Attach side caps #7 to one side rail (either #2 or #3) as shown in figure 18. Use two nails #41 per side cap #7. Hold nails with needle nose pliers and tap them into plastic with a small hammer.
- Page 11 AlCachend aprons # 12 to recessedarea on the underneath side of the end rails (#4). CENTER THE APRONS WITHIN THE LENGTH OF THE RAILS. Hold apron in place and spot the location of the mounting holes on the rails. Punch pilot holes in rail using an awl (or 8d nail) and hammer.
- Page 12 41. Before attaching the drop pockets to the rails you will need to tri mtwo of them to fit into the side pockets. (See figure 25) Inserhhe corner and side drop pockets (thetwo that you have trimmed) into the drop pocket openings on the table.
-
Page 13: Warranty
Service Department. This warranty is not transferable handling, damaged, use. This warranty gives the consumer ESCALADE SPORTS thereof, for any product shall disclose if it fails to remain flat, installation or use of... - Page 14 I_q_ 822-3 PLAYFIE LD SPOTS 2A-4049-57 TOP RAIL LEFT SIDE 2A-4050-57 TOP RAIL RIGHT SIDE 2A-4051-57 TOP RAIL END 5A-6827-00 SIGHT PLUG KIT 3M-6522-00 CORNER 3M-6523-00 SIDE CAP 3M-6546-00 CORNER POST 809-551 SLATE PLAYFIELD END 2W-6029-00 SLATRON PLAYFIELD END 809-552 SLATE PLAYFIELD CENTER 2W-6030-00 SLATRON PLAYFIELD CENTER...
- Page 15 NOTE: Not all parts are shown. Also see page...
- Page 16 NOTE: Not all parts are shown. Also see page C>.
