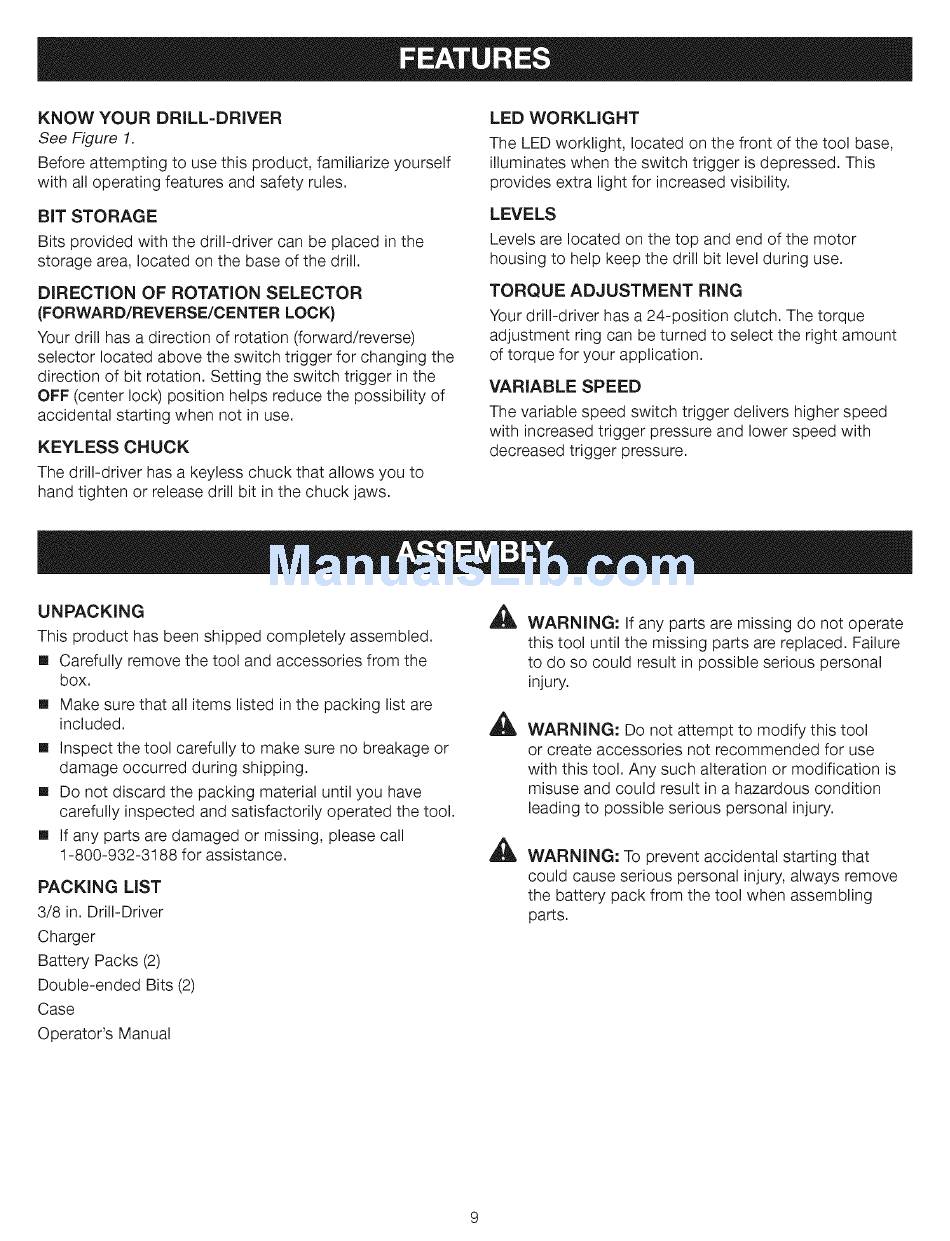

KNOWYOURDRILL-DRIVER
See Figure 1.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
BIT STORAGE
Bits provided with the drill-driver can be placed in the
storage area, located on the base of the drill.
DIRECTION
OF ROTATION
SELECTOR
(FORWARD/REVERSE/CENTER
LOCK)
Your drill has a direction of rotation (forward/reverse)
selector located above the switch trigger for changing the
direction of bit rotation. Setting the switch trigger in the
OFF (center lock) position helps reduce the possibility of
accidental starting when not in use.
KEYLESS
CHUCK
The drill-driver has a keyless chuck that allows you to
hand tighten or release drill bit in the chuck jaws.
LED WORKLIGHT
The LED worklight, located on the front of the tool base,
illuminates when the switch trigger is depressed. This
provides extra light for increased visibility.
LEVELS
Levels are located on the top and end of the motor
housing to help keep the drill bit level during use.
TORQUE
ADJUSTMENT
RING
Your drill-driver has a 24-position
clutch. The torque
adjustment ring can be turned to select the right amount
of torque for your application.
VARIABLE
SPEED
The variable speed switch trigger delivers higher speed
with increased trigger pressure and lower speed with
decreased trigger pressure.
UNPACKING
,_
This product has been shipped completely assembled.
[] Carefully remove the tool and accessories from the
box.
[] Make sure that all items listed in the packing list are
included.
[] Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
[] Do not discard the packing material until you have
carefully inspected and satisfactorily
operated the tool.
[] If any parts are damaged or missing, please call
1-800-932-3188
for assistance.
PACKING
LIST
3/8 in. Drill-Driver
Charger
Battery Packs (2)
Double-ended
Bits (2)
Case
Operator's Manual
A
A
WARNING:
If any parts are missing do not operate
this tool until the missing parts are replaced. Failure
to do so could result in possible serious personal
injury.
WARNING:
Do not attempt to modify this tool
or create accessories not recommended
for use
with this tool. Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
WARNING:
To prevent accidental starting that
could cause serious personal injury, always remove
the battery pack from the tool when assembling
parts.
