Craftsman 247.240193 Operator's Manual page 30
Two bin bagger
Table of Contents

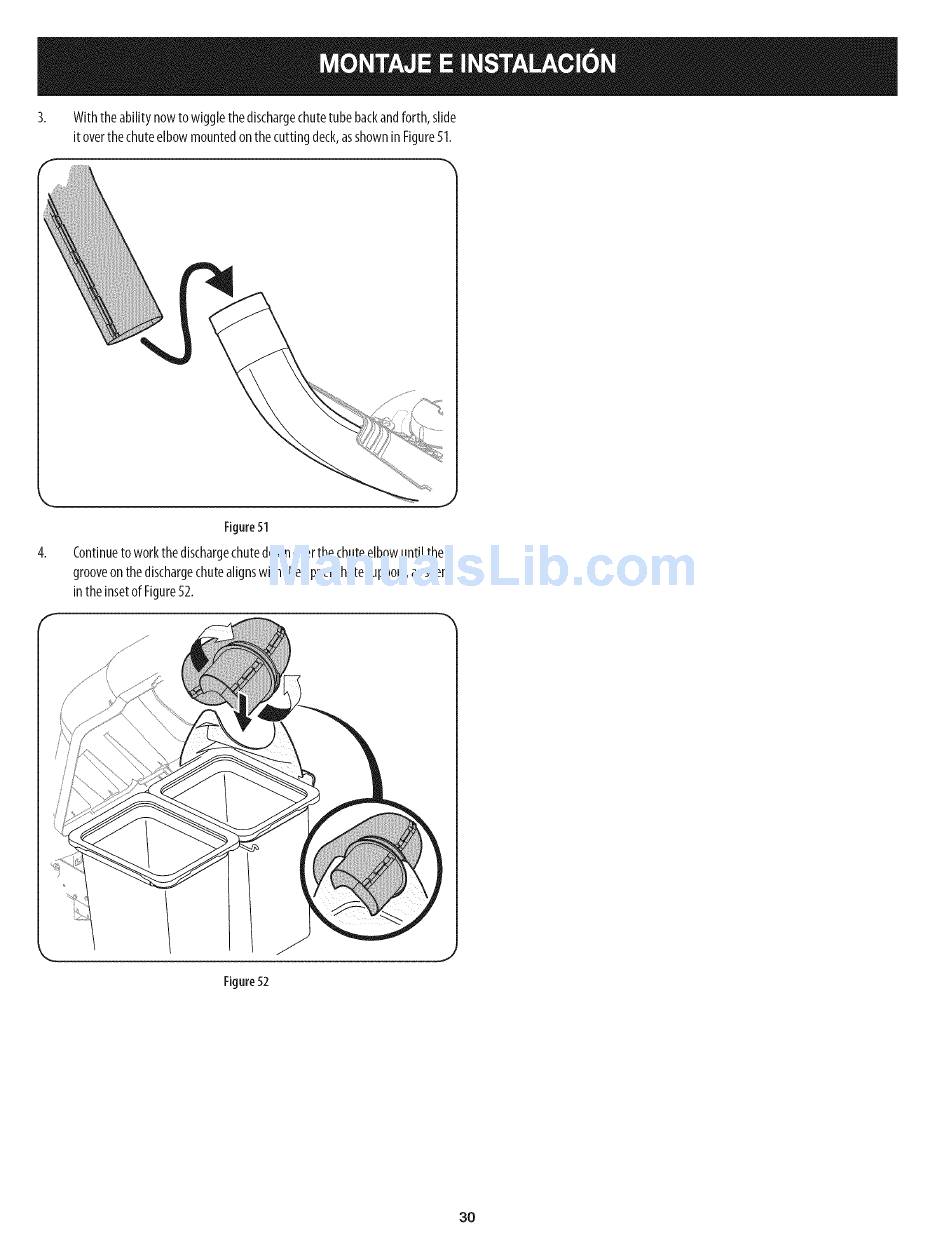

3. With the ability now towiggle the discharge
chute tube b ack and f orth, slide
itover the c hute elbow m ounted
on the cutting deck, as shown
inFigure
51.
4,
Figure 51
Continue to workthe discharge chutedown overthe chuteelbowuntil the
grooveonthe discharge c hutealignswith the upperchutesupport,asseen
inthe insetof Figure 52.
Figure 52
30
