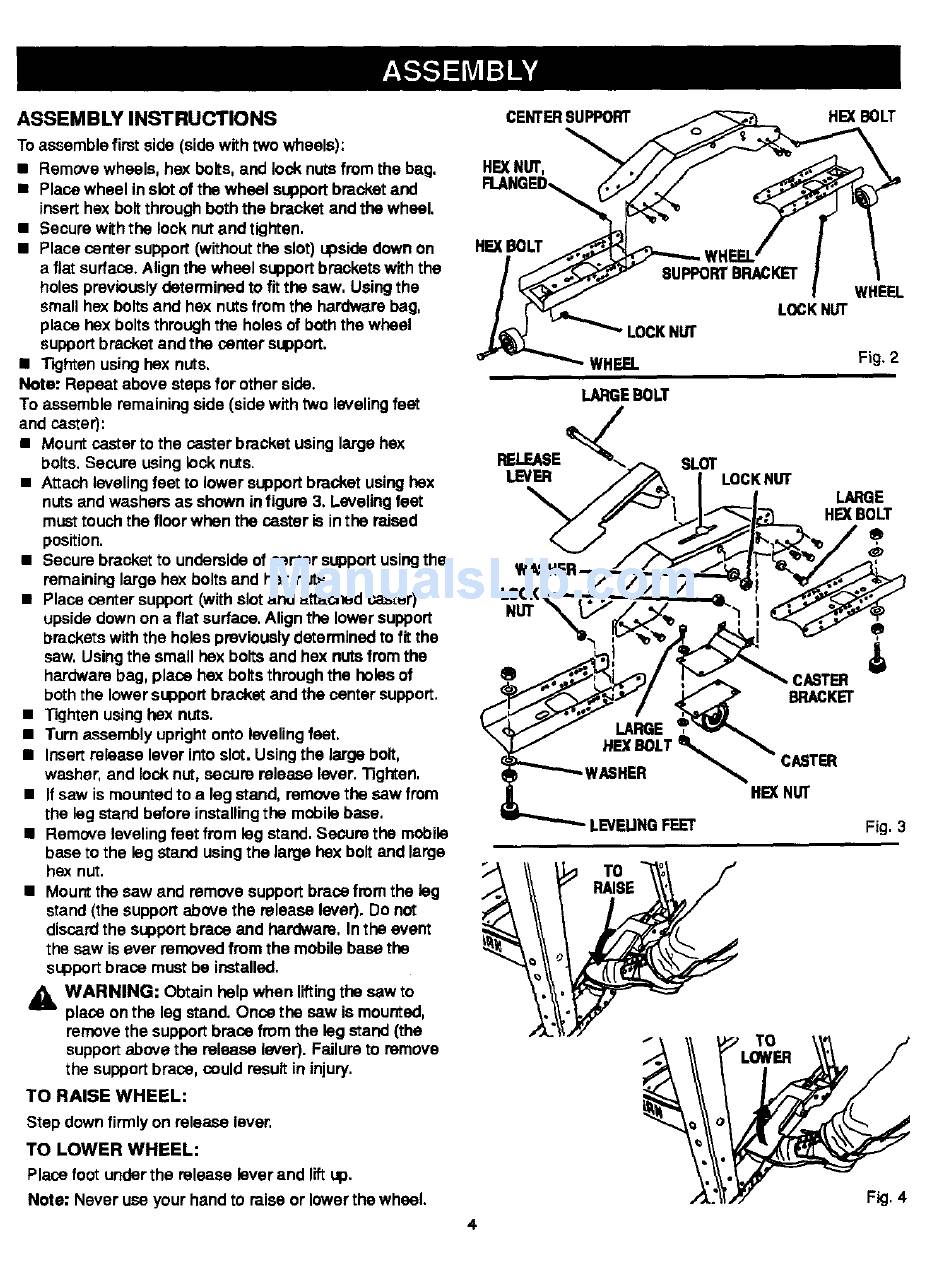

ASSEMBLY INSTRUCTIONS
To assemble first side (side with two wheels):
•
Remove wheels, hex bolts, and lock nutsfrom the bag.
•
Place whsel in slot of the wheel supportbracket and
inserthex bolt through boththe bracket and the wheel.
•
Secure withthe lock nut andtighten,
•
Place center support (withoutthe slot) upside down on
a flat surface.Align the wheel supportbracketswith the
holes previouslydetermined to fit the saw, Using the
small hex bolts and hex nuts from the hardware bag,
place hex boltsthrough the holes of boththe wheel
supportbracket and the center support.
•
Tighten usingflex nuts.
Note: Repeat above steps for other side.
To assemble remainingside (side with two levelingfeet
and caster):
•
Mount castarts the cestar bracket using large hex
bolts. Secure using lock nuts.
• Attach levelingfeet to lower supportbracket using hex
nuts and washers as shown in figure 3. Levelingfeet
musttouchthe floor when the caster is in the raised
position.
•
Secure bracket to undersideof center supportusing the
remaining large hex bolts and hex nuts.
• Place center support(with slot and attached caster)
upside down on a flat surface.Align the lower support
brackets with the holes previouslydeterminedto fit the
saw. Using the small hex bolts and hex nutsfrom the
hardware bag, place hex bolts throughthe holesof
boththe lowersupport bracket and the center support.
•
Tightenusing hex nuts.
•
Turn assembly uprightonto levelingfeet.
•
Insertrelease lever into slot. Using the large bolt,
washer, and lock nut, secure release lever. "13ghten.
•
If saw is mounted to a leg stand, remove the saw from
the leg stand before installingthe mobilebase.
•
Remove levelingfeet from leg stand. Secure the mobile
base to the leg stand usingthe large hex boltand large
hex nut.
•
Mount the saw and remove supportbrace from the leg
stand (the supportabove the release lever). Do not
discardthe supportbrace and hardware. In the event
the sew is ever removedfrom the mobile base the
supportbrace must be installed.
3_k WARNING:
Obtain help when liftingthe saw to
place on the leg stand. Once the saw is mounted,
remove the supportbrace from the leg stand (the
supportabove the release lever). Failure to remove
the supportbrace, could result in injury.
TO RAISE WHEEL:
Step down firmly on release lever.
TO LOWER WHEEL:
CENTER SUPPORT
HEXBOLT
HFJ{ N UT,
FI.ANGED_
HEX BOLT
8UPPO_BRACKET
WHEEL
L_KN_
"_CKN_
WHEEL
Fig. 2
LARGE BOLT
RELEASE _
SLOT
HE)(NUT
LEVEUNG FEET
Fig. 3
TO
TO
Place foot under the release lever and lift up.
Note: Never use your hand to raise or lower the wheel.
Fig, 4
4
