Universal Remote Control DMS-AV TPS2000 Owner's Manual

Home theater amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

DMS-AV TSP2000
Home Theater Amplifier
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMS-AV TPS2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Remote Control DMS-AV TPS2000

Summary of Contents for Universal Remote Control DMS-AV TPS2000

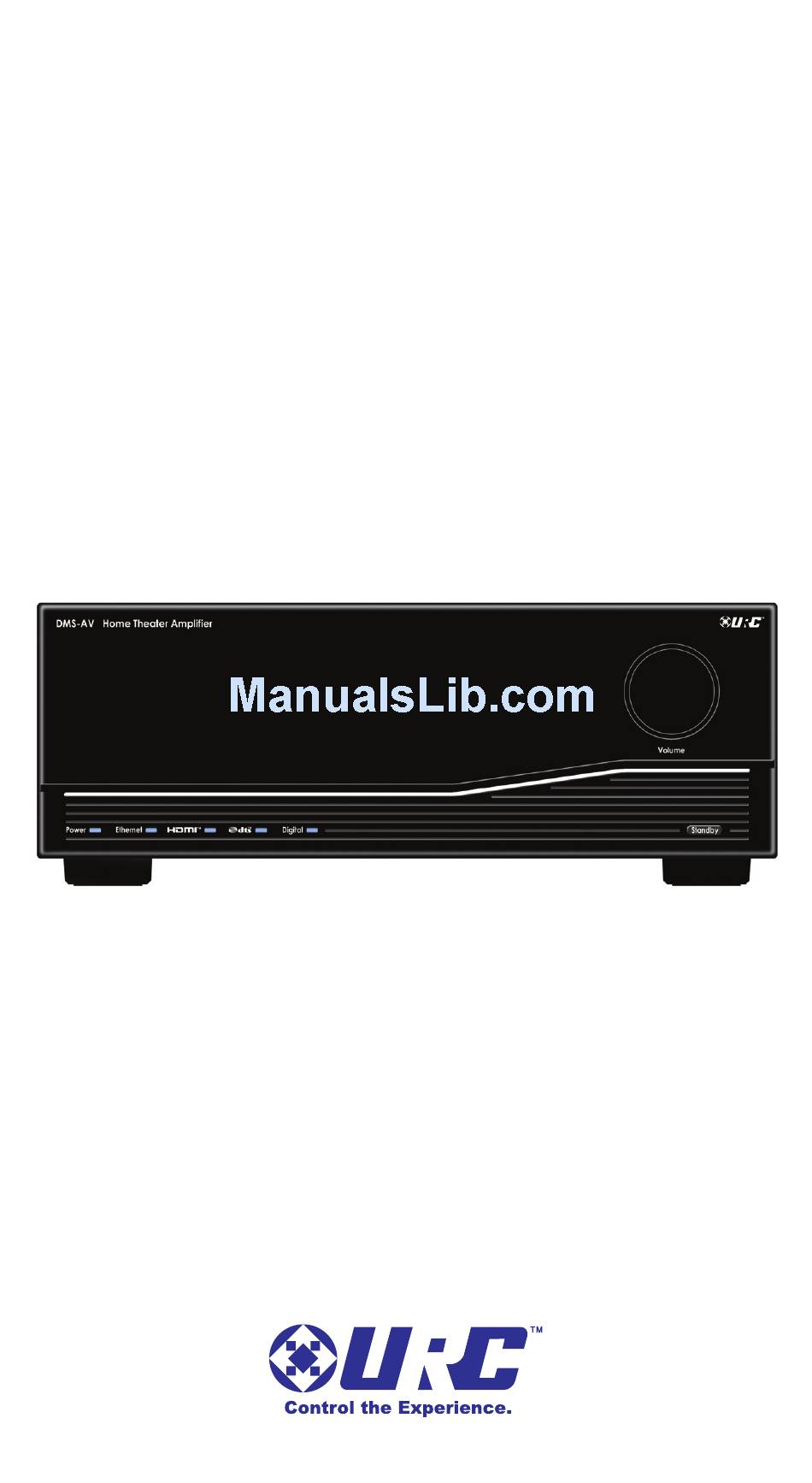

  • Page 1 DMS-AV TSP2000 Home Theater Amplifier Owner's Manual...

  • Page 3: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ......7 Cautions on Installation ........7 Safety Precautions .
  • Page 5 DMS-AV H HEATER MPLIFIER Night Mode ..........35 Surround modes .

  • Page 7: Safety Precautions

    DMS-AV H HEATER MPLIFIER Safety Precautions To prevent fire or shock hazard, do not expose this unit to rain or moisture. Care should be taken to prevent objects or liquid from entering the enclosure. Never handle the power cord with wet hands. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 9 DMS-AV H HEATER MPLIFIER • It is recommended that the system speaker impedance seen by the amplifier channels of the receiver not fall below 4 ohms. Best amplifier thermal stability is achieved when it operates into a 4 ohms or greater speaker load.

  • Page 11: Dms-Av Front Panel

    DMS-AV H HEATER MPLIFIER DMS-AV Front Panel 1. Right-Hand Knob -The right selector knob’s primary purpose is audio volume adjustment. 2. Power LED – This LED illuminates Blue when the DMS-AV is ON and Red when the DMS-AV is in Standby mode. 3.

  • Page 12: Dms-Av Rear Panel

    DMS-AV H HEATER MPLIFIER DMS-AV Rear Panel 1. Voltage Triggers, Reset Switch and Ethernet - The two 12 volt triggers present at this section of the back panel supply a maximum current of 100 mA, and can be used to trigger an external amplifier, or can also be used to trigger the use of an anamorphic lens on a projector.

  • Page 18: Connection Overview

    DMS-AV H HEATER MPLIFIER Connection Overview Audio Connections Description Cable Jack HDMI Connections can carry uncompressed standard or High Definition digital video and audio. It offers the best HDMI picture and sound quality. This offers the best sound quality and allows a Dolby Optical Digital and DTS signal to be sent.

  • Page 19: Video Inputs - Hardware Connections

    DMS-AV H HEATER MPLIFIER Video Inputs - Hardware Connections Video Input Connection – HDMI The URC surround processor provides 5 HDMI A/V inputs. While HDMI carries both audio and video, URC allows options to process audio and video separately (please see the menu setup for further options). To connect an HDMI video source to the URC DMS AV, connect the HDMI cable to the HDMI output on the source.

  • Page 20: Video Outputs - Hardware Connections

    DMS-AV H HEATER MPLIFIER Video Outputs - Hardware Connections Video Output Connection - HDMI The HDMI output connection on the receiver carries high-definition video to your television or monitor. To connect an HDMI video output from the DMS- AV, connect the HDMI cable to the HDMI output on the DMS-AV. Then connect the other end of the cable into the corresponding HDMI input on your television or monitor.

  • Page 21: Audio Inputs - Hardware Connections

    DMS-AV H HEATER MPLIFIER Audio Inputs - Hardware Connections Audio Input Connection – HDMI Although an HDMI connection carries both audio and video, the DMS-AV can process audio and video separately (please see the menu structure for further information). To connect an HDMI audio source to the DMS-AV, connect the HDMI cable to the HDMI output on the source.

  • Page 22: Audio Output - Hardware Connections

    DMS-AV H HEATER MPLIFIER Audio Output - Hardware Connections Your DMS-AV receiver has both unbalanced line level RCA surround output (for use with other external amplifiers) and speaker binding posts (for use with the 125 watt internal amplifiers). These will connect directly to a speaker or an amplifier.

  • Page 23: Audio Output Connection - Subwoofer(S)

    DMS-AV H HEATER MPLIFIER Audio Output Connection – Subwoofer(s) The DMS-AV supplies two subwoofer (.2) outputs. Connect the subwoofer output(s) to the input on the subwoofer(s). The diagram shows how the receiver may be connected to active subwoofer(s). Subwoofer outputs connection to subwoofers powered amplifer Audio Output Connection - Optical Digital Record The optical digital output will output the S/PDIF optical digital signal of the...

  • Page 24: Configuration And Control - Hardware Connections

    DMS-AV H HEATER MPLIFIER Configuration and Control - Hardware Connections Ethernet Communication - Connection Instructions 1. Make sure that all devices are powered Off, including the DMS-AV, PCs, routers, switches, etc. 2. Connect one end of an Ethernet network cable to one of the numbered ports on the back of the router.

  • Page 25: Control Output Triggers / Amp Enable

    DMS-AV H HEATER MPLIFIER Control Output Triggers / Amp Enable The Control Out / Amp Enable outputs are standard 3.5 mm (mono mini) jack connections used for triggering such pieces as amplifiers, screens, relays, etc. The output is a 100 mA 12 VDC signal. The voltage trigger outputs are active when the DMS-AV is selected to a specific input.

  • Page 35: Surround Modes

    Surround modes DTS Surround DTS Surround (also called simply DTS) supports up to 5.1 discrete channels and uses less compression for high fidelity reproduction. Use it with DVDs and CDs bearing the DTS logo. DTS-ES Discrete 6.1 This is a 6.1 channel discrete digital audio format adding a surround back channel to the DTS digital surround sound.
  • Page 38 DMS-AV H HEATER MPLIFIER A.L.C (Auto Volume Level Control) This mode automatically equalizes playback sound level if each sound level varies with the music source recorded in a portable audio player. Note The sound from each channel can be reproduced according to the surround modes as follows: (*) : Depending on the subwoofer setting, the sound from the subwoofer channel may be reproduced.

  • Page 39: Selecting The Surround Mode

    DMS-AV H HEATER MPLIFIER Selecting the Surround mode Before surround playback, first perform the speaker setup procedure, etc. on the OSD settings for optimum performance. Select the desired surround mode by pressing the SURROUND UP(•) / DOWN(•) buttons. • Each time the buttons are pressed, the surround mode changes depending on the input signal format as the table below: Depending on surround back speaker setting, some surround modes can be selected or not as follows <...

  • Page 40: Automated Speaker Setup

    DMS-AV H HEATER MPLIFIER Automated Speaker Setup All of the manual room correction described in the previous section can be accomplished through an automated process, within the on-screen display, or the URC Accelerator Application. Included with each DMS-AV is a setup microphone, which when connected to the DMS-AV Setup Mic input, can be used to perform an automated room correction routine.

  • Page 41: Analog Audio Assign

    DMS-AV H HEATER MPLIFIER Analog Audio Assign (Available for HDMI inputs only) - Analog audio assign options may also be used to reassign HDMI audio to any of the line level analog audio inputs (IN 1 through IN 6). Video Scaling This allows setting of a desired output resolution per input selected by the DMS-AV.
  • Page 50 OCE-0119A Rev 02...
