Summary of Contents for Tyco Electronics 1915L

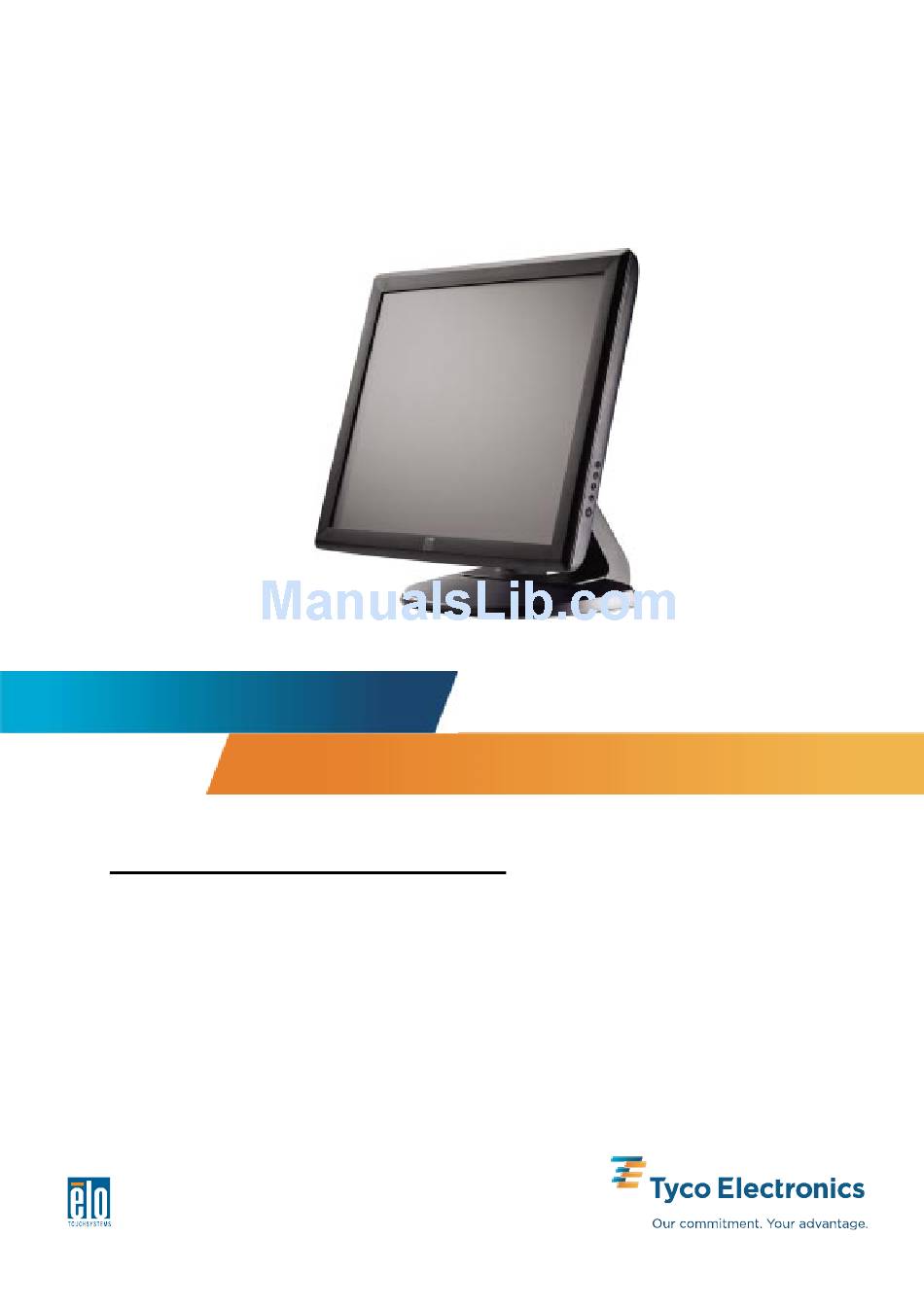

- Page 1 Touchmonitor User Guide 1915L 19-inch LCD Desktop Touchmonitor [Model ET1915L]...
-
Page 2: User Guide
User Guide 19-inch LCD Desktop 1915L Touchmonitor Revision C P/N E731143... -
Page 3: Trademark Acknowledgments
Copyright © 2008 Tyco Electronics. All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo TouchSystems. -
Page 4: Table Of Contents
Table of Contents Chapter 1 Introduction Appendix C Product Description ..........1 Technical Specifications ........... 23 Precautions ............... 1 Touchmonitor Specifications ........24 About the product ............. 2 19" LCD Touchmonitor (ET1915L) Dimensions ..25 Chapter 2 Regulatory Information ......Installation and Setup ........ -
Page 5: Introduction
C H A P T E R NTRODUCTION Product Description Your new touchmonitor combines the reliable performance of touch technology with the latest advances in LCD display design. This combination of features creates a natural flow of information between a user and your touchmonitor. This LCD monitor incorporates 19”... -
Page 6: About The Product
About the Product Your LCD Desktop Touchmonitor is a 19” SXGA TFT color display with the following features: • The internal microprocessor digitally controls auto-scanning, for horizontal scan frequencies between 31.5 KHz and 80 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In each frequency mode, the microprocessor-based circuitry allows the monitor to function at the precision-of a fixed frequency. -
Page 7: Installation And Setup
C H A P T E R NSTALLATION AND ETUP This chapter discusses how to install your LCD touchmonitor and how to install the driver software. Unpacking Your Touchmonitor Check that the following 8 items are present and in good condition: LCD monitor VGA cable USB cable... -
Page 8: Touch Interface Connection
Touch Interface Connection Before connecting the cables to your touchmonitor and PC, be sure that the computer Note: touchmonitor are turned off. 1. Connect one end of the power cord to the monitor and the other end to the outlet. 2. -
Page 9: Product Overview
Product Overview Main Unit Rear View... -
Page 10: Installing The Driver Software
Installing the Driver Software Elo TouchSystems provides driver software that allows your touchmonitor to work with your computer. Drivers are located on the enclosed CD-ROM. Additional drivers and driver information for other operating systems are available on the Elo TouchSystems web site at www.elotouch.com. Your Elo touchmonitor is plug-and-play compliant. -
Page 11: Installing The Serial Touch Driver
Installing the Serial Touch Driver (not applicable to Acoustic Pulse Recognition monitors) Installing the Serial Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT4.0 NOTE: For Windows 2000 and NT 4.0 you must have administrator access rights to install the driver. - Page 12 Installing the Serial Touch Driver for MS-DOS and Windows 3.1 (not applicable to Acoustic Pulse Recognition monitors) You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you wish to continue using your mouse along with your touchmonitor in DOS. To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions below: 1 Insert the CD-ROM in your computer’s CD-ROM drive.
-
Page 13: Installing The Usb Touch Driver
Installing the USB Touch Driver (not applicable to Acoustic Pulse Recognition monitors) Installing the USB Touch Driver for Windows XP, Windows 2000, Me, 95/98 and NT4.0 1 Insert the Elo CD-ROM in your computer’s CD-ROM drive. If Windows 98, Windows Me or Windows 2000 starts the Add New Hardware Wizard: 2 Choose Next. -
Page 14: Installing Usb Touch Driver For Acoustic Pulse Recognition Monitors
Installing USB Touch Driver for Acoustic Pulse Recognition Monitors Insert the ELO APR CD-ROM in your computer’s CD-ROM driver. Follow the directions on the screen to complete the APR 2.0 driver setup. 1 Click Start > Run. 2 Click the Browse button to locate the SW600117.exe program on the CD-ROM. 3 Click Open, then OK to run SW600117.exe. -
Page 15: Operation
C H A P T E R PERATION About Touchmonitor Adjustments Most likely there will be no need to be adjust your touchmonitor. However, variations in video output and application may require adjustments to optimize display quality. For best performance, your touchmonitor should be operating in native resolution, that is 1280 x 1024 at 80k-75 Hz. -
Page 16: Front Panel Controls
Front Panel Controls Control Function 1 Menu/Exit Display/Exits the OSD menus. 1. Enter contrast of the OSD. 2. Increase value of the adjustment item. 3. Select item. 1. Enter brightness adjustment. 2. Decrease value of the adjustment item. 3. Select item counter-clockwise. 4 Select Selects the adjustment items from the OSD menus. -
Page 17: Controls And Adjustment
Controls and Adjustment OSD Menu Functions To Display and Select the OSD Functions: 1 Press the Menu key to activate the OSD menu. 2 Use to move clockwise or counterclockwise through the menu. Press the Enter key, the parameter will be highlighted when selected. 3 To quit the OSD screen at any time during the operation, press the Menu key. -
Page 18: Osd Control Options
OSD Control Options Control Description Brightness Increases or decreases brightness. Contrast Increases or decreases contrast. H-Position Moves the screen left or right. V-Position Moves the screen up or down. Phase Increases or decreases the snow noise of the image after auto adjustment is made. -
Page 19: Preset Modes
Preset Modes To reduce the need for adjustment for different modes, the monitor has default setting modes that are most commonly used as given in the table below. If any of these display modes are detected, the monitor automatically adjusts the picture size and centering. When none of the mode is matched, the user can store their preferred modes in the user modes. -
Page 20: Power Management System
Power Management System The monitor is equipped with the power management function which automatically reduces the power consumption when not in use. Power Mode Consumption <50W Sleep <4W <2W We recommend switching the monitor off when it is not in use for a long time. The monitor automatically goes through the Power Management System (PMS) steps NOTE: when it is idle. -
Page 21: Troubleshooting
C H A P T E R ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond Check that the monitor’s Power Switch is on. - Page 22 Elo Touchsystems 1915L User’s Guide...
-
Page 23: Appendix A Native Resolution
A P P E N D I X ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the LCD touchmonitor, the native resolution is 1280 x 1024 for the 19 inch size. In almost all cases, screen images look best when viewed at their native resolution. - Page 24 As an example, a XGA resolution LCD panel has 1024 pixels horizontally by 768 pixels vertically. Input video is also represented by the same terms. SXGA input video has a format of 1280 pixels horizontally by 1024 pixels vertically. When the input pixels contained in the video input format match the native resolution of the panel, there is a one to one correspondence of mapping of input video pixels to LCD pixels.
-
Page 25: Appendix B Touchmonitor Safety
A P P E N D I X OUCHMONITOR AFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1 To reduce the risk of electric shock, follow all safety notices and never open the touchmonitor case. -
Page 26: Care And Handling Of Your Touchmonitor
Care and Handling of Your Touchmonitor The following tips will help keep your touchmonitor functioning at the optimal level. • To avoid risk of electric shock, do not disassemble the brick supply or display unit cabinet. The unit is not user serviceable. Remember to unplug the display unit from the power outlet before cleaning. -
Page 27: Technical Specifications
A P P E N D I X ECHNICAL PECIFICATIONS... -
Page 28: Touchmonitor Specifications
Touchmonitor Specifications Model ET1915L LCD Display 19” TFT Active Matrix Panel Display Size 376.32(H) x 301.06(V) mm Pixel Pitch 0.294(H) x 0.294(V) mm Display Mode VGA 640 x 350 (70Hz) VGA 720 x 400 (70Hz) VGA 640 x 480 (60 / 72/ 75Hz) SVGA 800 x 600 (56 / 60 / 72/ 75Hz) XGA 1024 x 768 (60 / 70 / 75Hz) Max. -
Page 29: 19" Lcd Touchmonitor (Et1915L) Dimensions
19” LCD Touchmonitor (ET1915L) Dimensions... -
Page 30: Regulatory Information
EGULATORY NFORMATION I. Electrical Safety Information: A) Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 31 interference with radio and television communications. There is, however, no guarantee that interference will not occur in any particular installation due to site-specific factors. 1) In order to meet emission and immunity requirements, the user must observe the following: a) Use only the provided I/O cables to connect this digital device with any computer. b) To ensure compliance, use only the provided manufacturer’s approved line cord.
- Page 32 III. Agency Certifications The following certifications have been issued for this monitor: • North America/Worldwide: USA UL, Canada cUL • EMEA: Germany TUV, Sweden MPRII • Asia: Australia C-Tick, China CCC, Japan VCCI, Korea MIC Taiwan BSMI • Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE, FCC/ICES Class B Elo Touchsystems 1915L User’s Guide...
-
Page 33: Warranty
ARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the touchmonitors and components of the product is 3 (three) years. Seller makes no warranty regarding the model life of components. -
Page 34: Index
NDEX About the Product, 2 Input Signal, 24 About Touchmonitor Adjustments, 17 Installing USB Touch Driver for Acoustic Pulse Recognition , 10 Installation and Setup, 3 Installing the Driver Software, 6 Brightness, 17 Installing the Serial Touch Driver, 7 Installing the Serial Touch Driver for MS-DOS and Windows 3.1, 8 Care and Handling of Your Touchmonitor, 22 Installing the Serial Touch Driver for Windows XP,... - Page 35 Rear View, 5 Response Time, 24 Signal Connector, 24 Solutions to Common Problems, 17 Storage Conditions, 24 SVGA, 24 SXGA, 24 Technical Specifications, 23 Touch Interface Connection, 4 Touch Panel (optional), 24 Touchmonitor Safety, 21 Touchmonitor Specifications, 23 Troubleshooting, 17 Unpacking Your Touchmonitor, 3 UXGA, 19 VGA, 24...
-
Page 36: Product Information
To find out more about Elo’s extensive range of touch solutions, visit our Web site at www.elotouch.com or simply call the office nearest you: North America Germany Belgium Asian-Pacific Elo TouchSystems Tyco Electronics Raychem GmbH Tyco Electronics Raychem GmbH Sun Homada Bldg. 2F 301 Constitution Drive, (Elo TouchSystems Division) (Elo TouchSystems Division) 1-19-20 Shin-Yokohama...
