Load disc using tray.
The LED lights green or amber when the drive is operating (LED is amber when drive is
The Eject button is used to open the disc tray so you can install or remove a disc.
The emergency eject hole is to be used only when the Loading Tray will not open when
Eject button is pressed.
The DVD Writeable kit requires the following (If kit uses Nero6 software):
Microsoft Windows 98SE, XP, 2000 or ME
800MHz for capturing to hard disc
1.6GHz for capturing to DVD video
64MB RAM, 128MB RAM (for video editing)
Hard Drive Space:
4.8GB for DVD Images
Screen solution 800 x 600 pixel minimum, 16 bit color depth or higher
Windows Internet Explorer 4.0 or higher
PCI sound card, USB audio box or motherboard built-in audio device
TV tuner or video capture board for analog recording

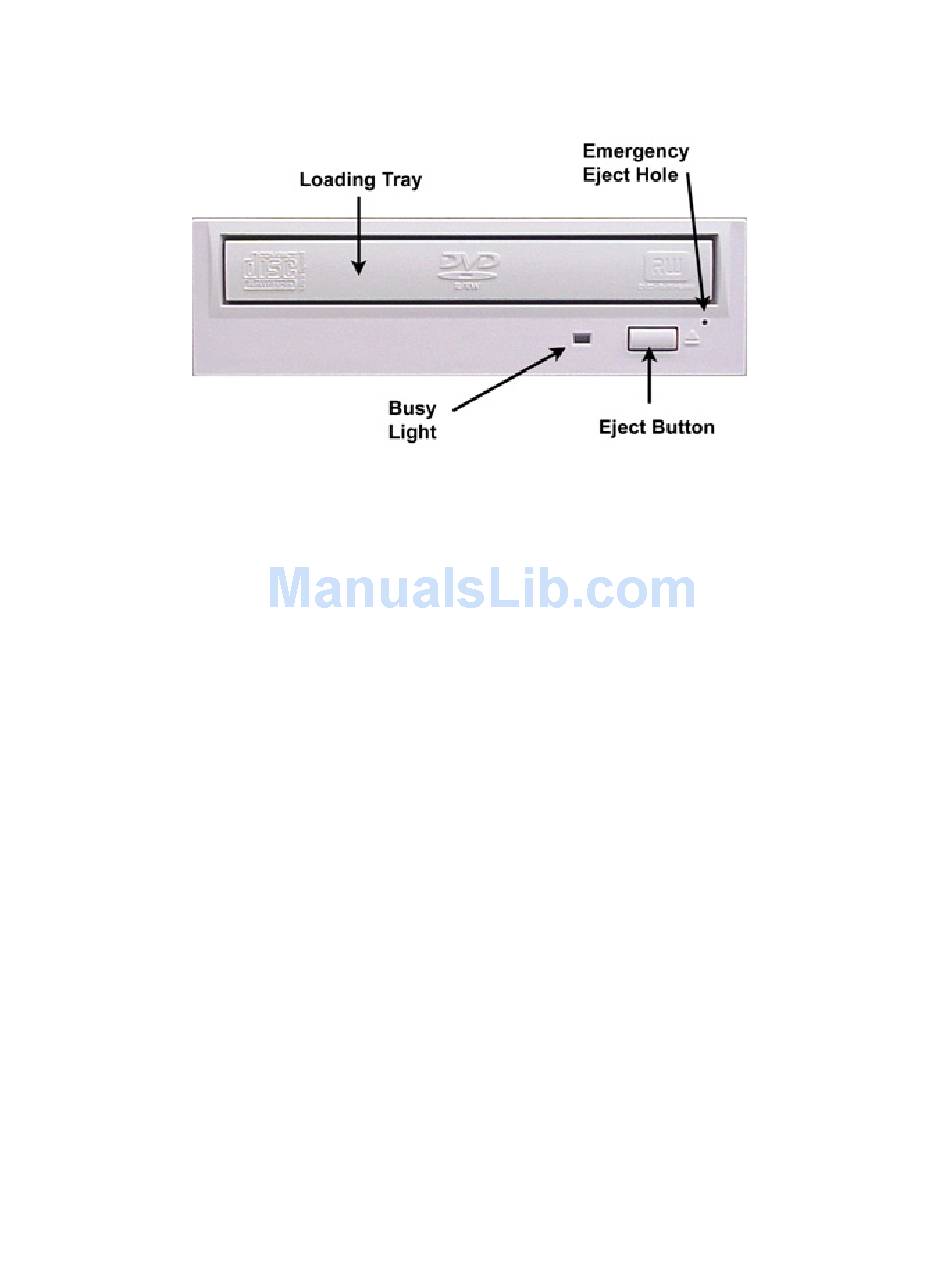

Figure 1.SD-R5002 DVD Writeable Drive Front Panel
